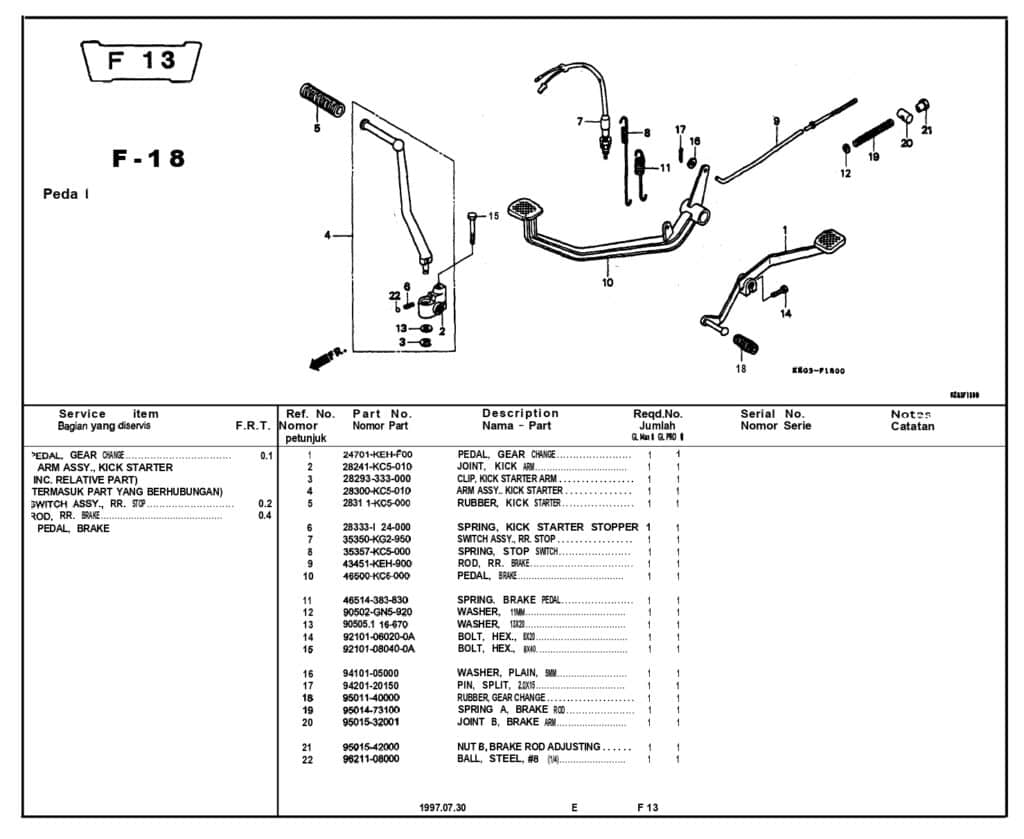

F-18 Pedal – Katalog Suku Cadang Honda GL Pro Max
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
24701KEHF00 |
24701KEHF00 |
-
|
| 2 |
28241KC5010 |
28241KC5010 |
-
|
| 3 |
CLIP KICK STARTER |
28293333000 |
|
| 4 |
28300KC5010 |
28300KC5010 |
-
|
| 5 |
RUBBER KICK START |
28311KC5000 |
|
| 6 |
SPRING,KICK START LBL |
28333124000 |
-
|
| 7 |
35350KG2850 |
35350KG2850 |
-
|
| 8 |
SPRING SWITCH |
35357KC5000 |
-
|
| 9 |
ROD RR BRAKE |
43451KEH900 |
-
|
| 10 |
PEDAL BRAKE |
46500KC5000 |
|
| 11 |
48514383830 |
48514383830 |
-
|
| 12 |
90502GNC920 |
90502GNC920 |
-
|
| 13 |
WASHER,13X20 |
90505116670 |
-
|
| 14 |
BOLT HEX 8X20 |
92101080200A |
-
|
| 15 |
BOLT HEX 8X40 |
92101080400A |
-
|
| 16 |
WASHER PLAIN /K5 |
9410105000 |
|
| 17 |
PIN COTTER 2.0X15 |
9420120150 |
|
| 18 |
RUBBER PEDAL |
9501140000 |
|
| 19 |
SPRING A BRAKEROD |
9501473100 |
|
| 20 |
9501632001 |
9501632001 |
-
|
| 21 |
NUT ADJUST |
9501542000 |
|
| 22 |
9821108000 |
9821108000 |
-
|
