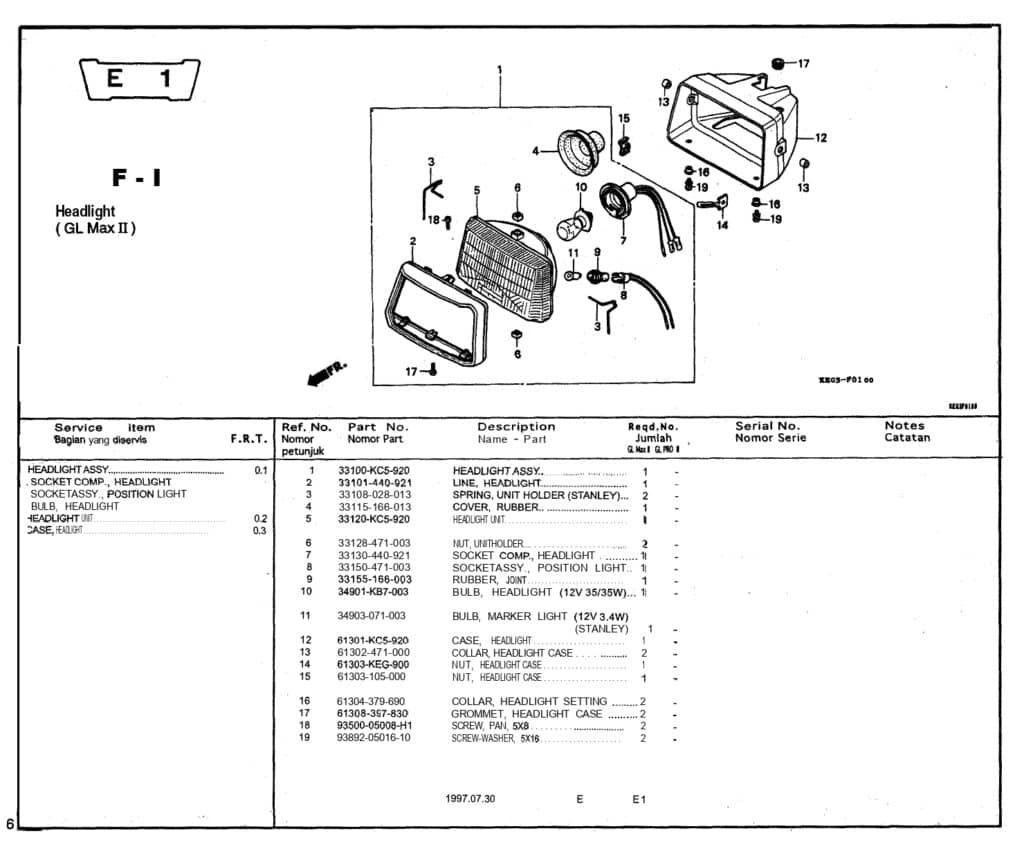

F-1 Headlight – Katalog Suku Cadang Honda GL Pro Max
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
33100KC5920 |
33100KC5920 |
-
|
| 2 |
RIM HEADLIGHT |
33101440921 |
-
|
| 3 |
SPRING UNIT HOLD |
33108028013 |
-
|
| 4 |
RUBBER COVER |
33115166013 |
-
|
| 5 |
3312PKC5920 |
3312PKC5920 |
-
|
| 6 |
NUT UNIT HOLDER |
33128471003 |
-
|
| 7 |
SOCKET HEADLIGHT |
33130440921 |
-
|
| 8 |
SOCKET POSITION |
33150471003 |
-
|
| 9 |
RUBBER JOINT |
33155166003 |
-
|
| 10 |
BULB HEADLIGHT |
34901KB7003 |
|
| 11 |
BULB LIGHT MARKER |
34903071003 |
-
|
| 12 |
61301KC5920 |
61301KC5920 |
-
|
| 13 |
COLLAR HEADLIGHT |
61302471000 |
-
|
| 14 |
61303KEG900 |
61303KEG900 |
-
|
| 15 |
NUT HEADLIGHT CASE |
61303105000 |
-
|
| 16 |
COLLAR HEADLIGHT |
61304379690 |
|
| 17 |
GROMMET HEADLIGHT |
61308397830 |
-
|
| 18 |
9350005008H1 |
9350005008H1 |
-
|
| 19 |
SCREW WASHER 5X16 |
938920501610 |
-
|
