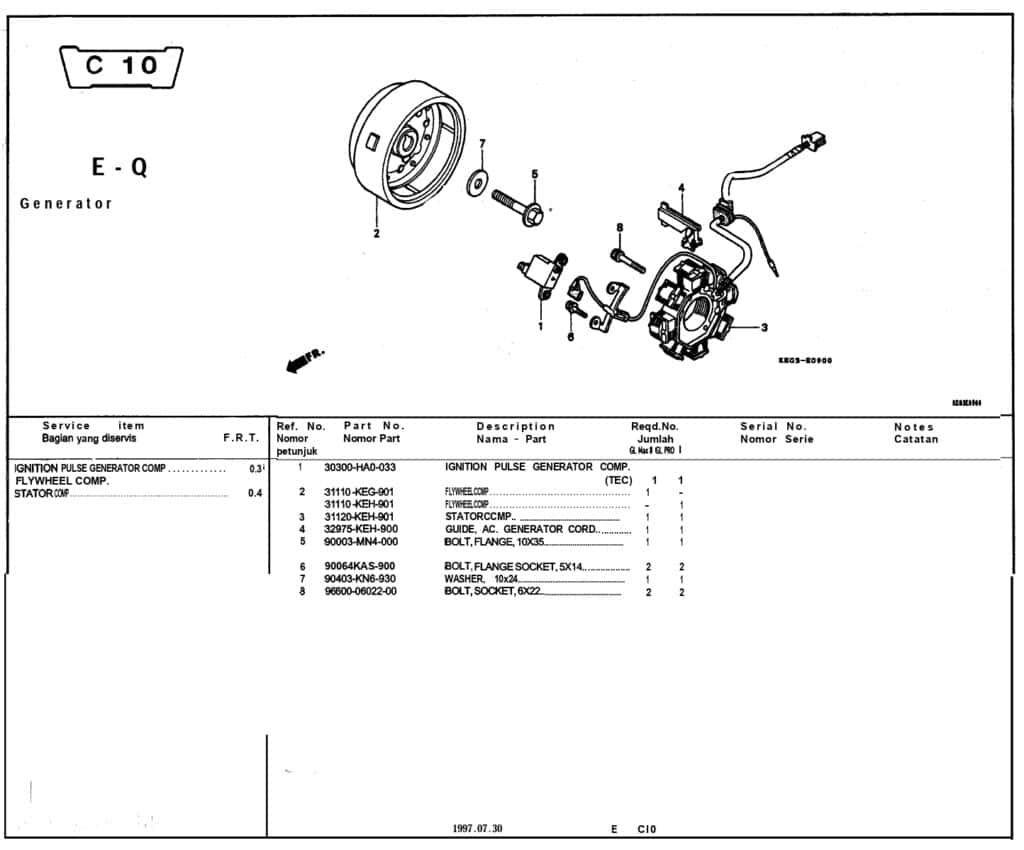

E-9 Generator – Katalog Suku Cadang Honda GL Pro Max

#	Informasi Produk	Visual
1	GEN COMP PULSE Part Number : `30300HA0034`
2	31110KEG901 Part Number : `31110KEG901`
2	FLYWHEEL COMP Part Number : `31110KEH901`
3	STATOR COMP Part Number : `31120KEH901`
4	GUIDE AC GENERATOR CORD Part Number : `32975KEH900`
5	BOLT FLANGE UBS 10X35 Part Number : `90003MN4001`
5	BOLT FLANGE 10X35 Part Number : `958011003500`
6	90064KAS900 Part Number : `90064KAS900`
6	Bolt Flange 5X14 Part Number : `90002KRM840`
7	WASHER,10X24 Part Number : `90403KN6930`
8	BOLT,SOCKET 6X22 Part Number : `966000602200`
