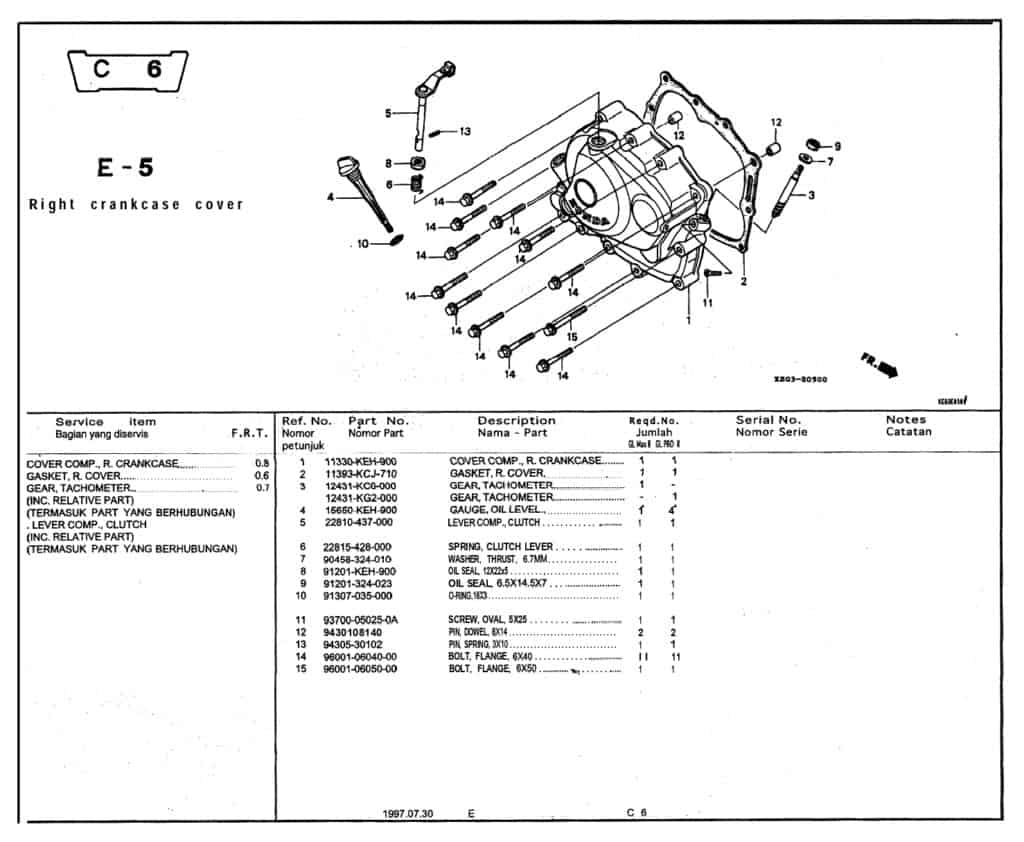

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | COVER R CRANK CASE | 11330KEH661 | - |
| 2 | GASKET R COVER | 11393KCJ710 |
|
| 3 | 12431KC6000 | 12431KC6000 | - |
| 3 | GEAR,TACHOMETER | 12431KG2000 | - |
| 4 | GAUGE OIL LEVEL | 15650KEH900 |
|
| 5 | LEVER COMP CLUTCH | 22810437001 | - |
| 6 | SPRING, CLUTCH LEVER | 22815428000 |
|
| 7 | WASHER THRUST 6.7MM | 90458324010 | - |
| 8 | Oil Seal 12x22x5 | 91201148004 |
|
| 9 | OIL SEAL, 6.5X14.5 | 91201324023 |
|
| 10 | O Ring 18x3 | 91307035000 |
|
| 11 | SCREW OVAL 5X25 | 93700050250A | - |

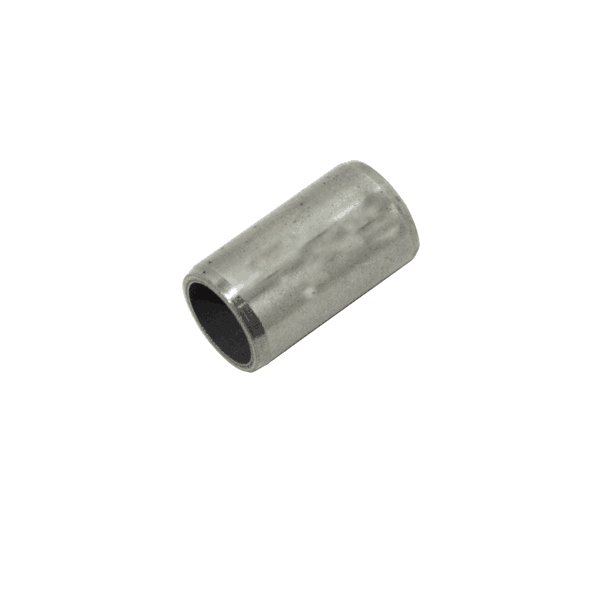

| 12 | PIN DOWEL 8X14 | 9430108140 |
|
| 13 | Pin Spring | 9430530102 |
|
| 14 | BOLT FLANGE 6X40 | 960010604000 |
|
| 14 | BOLT FLANGE 6X40 | 90019K56N00 |
|
| 15 | Bolt Flange 6X50 | 960010605000 |
|
