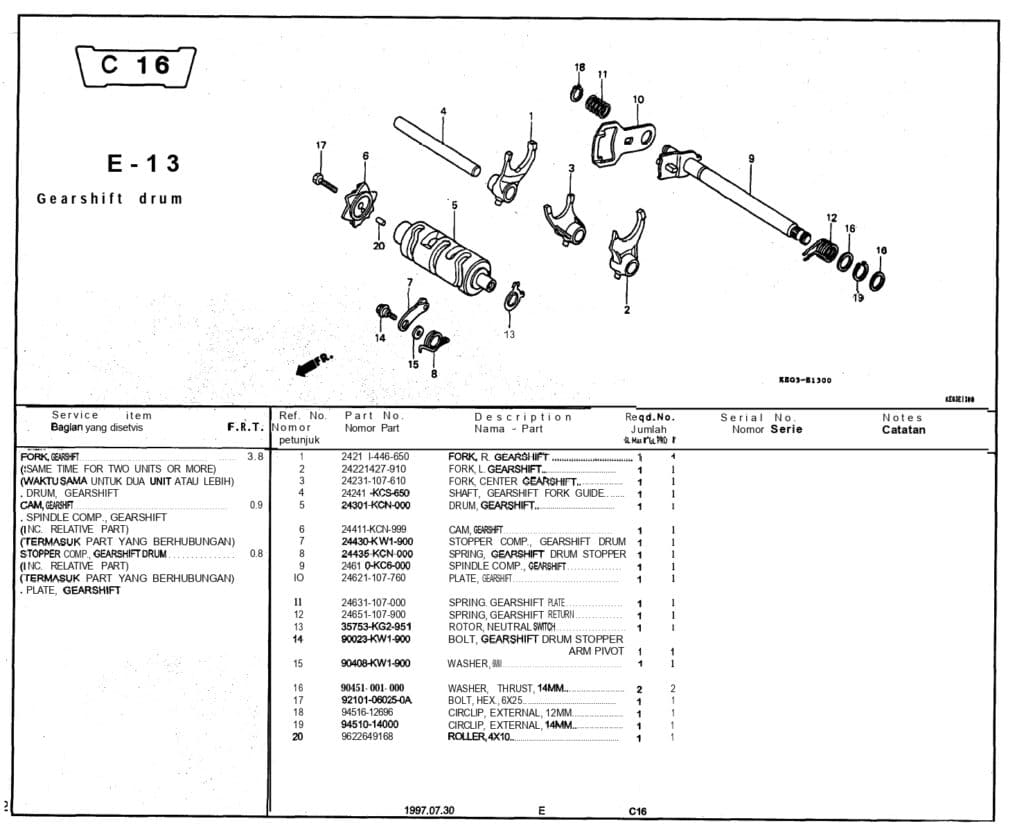

E-13 Gearshift Drum – Katalog Suku Cadang Honda GL Pro Max
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
FORK,R GEAR SHIFT |
24211446650 |
-
|
| 2 |
24221427910 |
24221427910 |
-
|
| 3 |
24231107610 |
24231107610 |
-
|
| 4 |
24241KCS650 |
24241KCS650 |
|
| 5 |
DRUM,GEAR SHIFT |
24301KCN000 |
-
|
| 6 |
24411KCN999 |
24411KCN999 |
-
|
| 7 |
24430KW1998 |
24430KW1998 |
-
|
| 8 |
24435KCN900 |
24435KCN900 |
-
|
| 9 |
SPINDLE,GEARSHIFT |
24610KC6000 |
-
|
| 10 |
PLATE,GEAR SHIFT |
24621107760 |
-
|
| 11 |
SPRING,PLATE |
24631107000 |
-
|
| 12 |
24651107900 |
24651107900 |
-
|
| 13 |
35753K62951 |
35753K62951 |
-
|
| 14 |
99923KW1900 |
99923KW1900 |
-
|
| 15 |
WASHER 6MM |
90408KW1901 |
-
|
| 16 |
WASHER,THRUST |
90451001000 |
|
| 17 |
92101060259A |
92101060259A |
-
|
| 18 |
9451612696 |
9451612696 |
-
|
| 19 |
9451014969 |
9451014969 |
-
|
| 20 |
9622649168 |
9622649168 |
-
|
