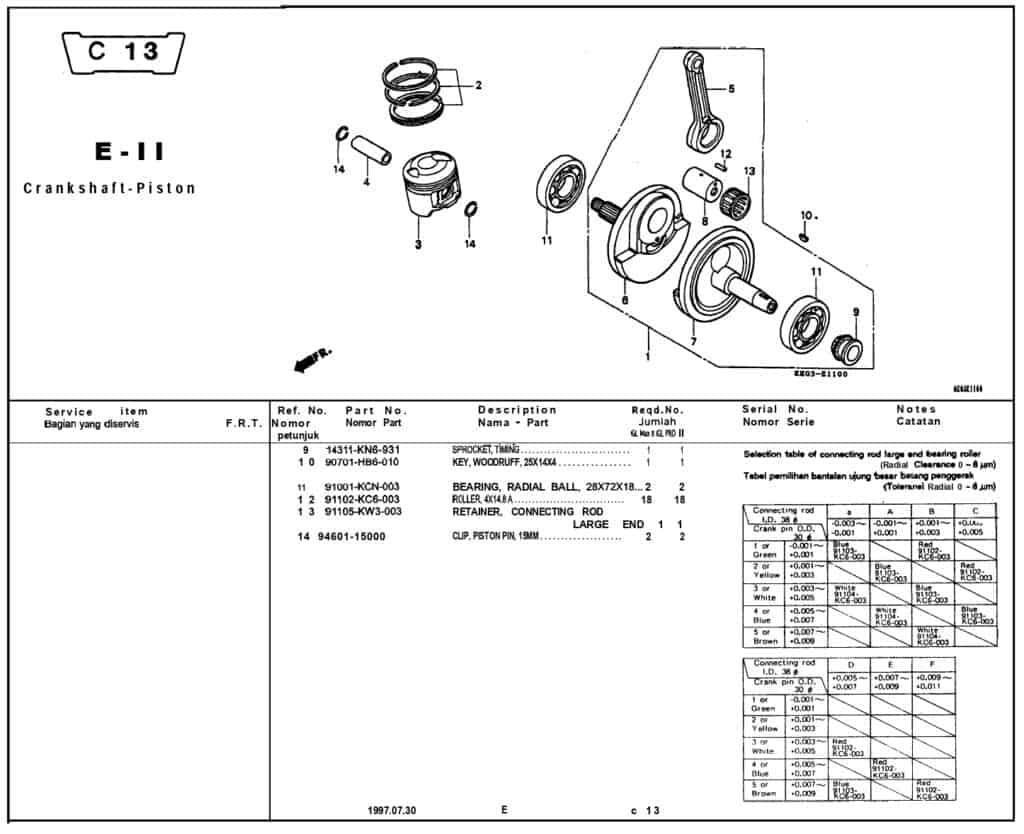

E-11 Cranksaft Piston – Katalog Suku Cadang Honda GL Pro Max
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
13000KCT690 |
13000KCT690 |
-
|
| 1 |
CRANKSHAFT COMP |
13000KEH660 |
-
|
| 2 |
RING SET (STD) |
13011KEG305 |
-
|
| 2 |
RING SET (STD) |
13011KEG882 |
-
|
| 2 |
RING SET (STD) |
13011KCJ305 |
-
|
| 3 |
13101KCM000 |
13101KCM000 |
-
|
| 3 |
PISTON STD |
13101KEH660 |
-
|
| 4 |
PIN,PISTON |
13111KN6930 |
-
|
| 4 |
PIN,PISTON |
13111440000 |
-
|
| 5 |
13201KY0890 |
13201KY0890 |
-
|
| 5 |
ROD,CONNECTING |
13201KCN300 |
-
|
| 6 |
13311KCM300 |
13311KCM300 |
-
|
| 6 |
13311KEH900 |
13311KEH900 |
-
|
| 7 |
13321KCM300 |
13321KCM300 |
-
|
| 7 |
13321KEH900 |
13321KEH900 |
-
|
| 8 |
PIN,CRANK |
13380KCN300 |
-
|
| 9 |
SPROCKET,TIMING |
14311KN6931 |
|
| 10 |
KEY WOODRUFF,25X1 |
90701HB6010 |
|
| 11 |
91001KBR003 |
91001KCN003 |
|
| 12 |
ROLLER,4X14.8 |
91102KC6003 |
-
|
| 13 |
RETAINER,CONN ROD |
91105KW3003 |
-
|
| 14 |
CLIP,PISTON PIN |
9460115000 |
|
