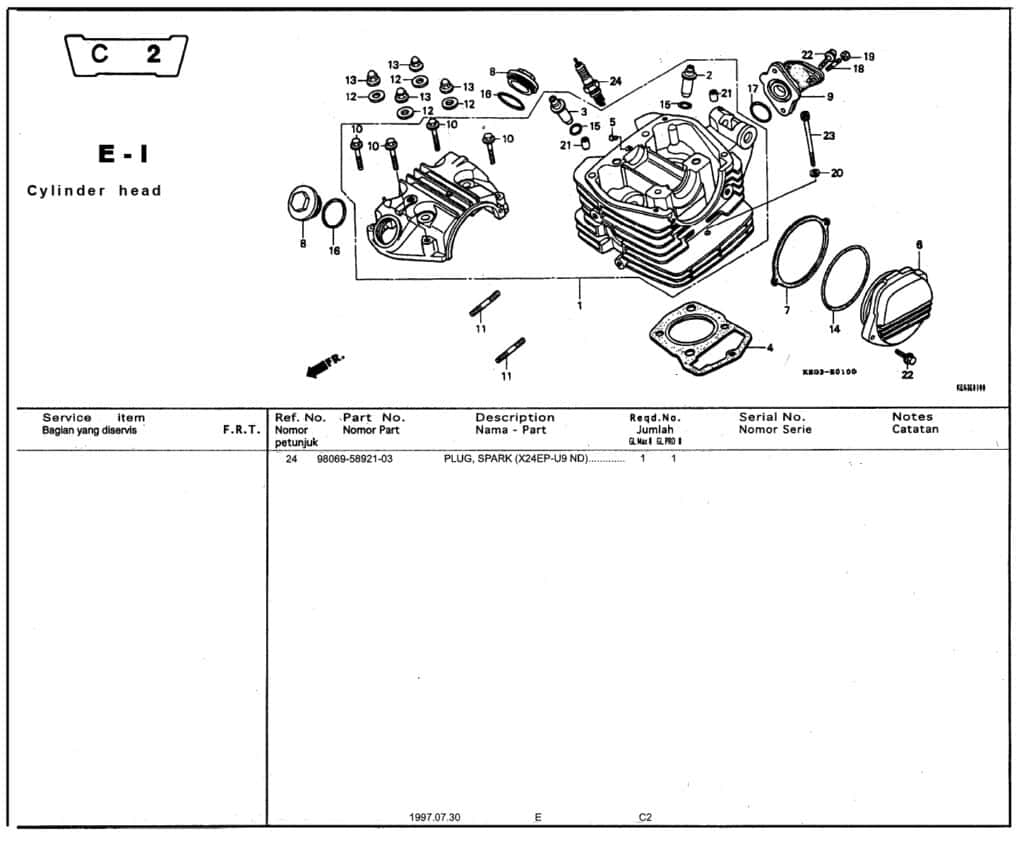

E-1 Cylinder Head – Katalog Suku Cadang Honda GL Pro Max

#	Informasi Produk	Visual
1	12000KCM000 Part Number : `12000KCM000`
1	HEAD,CYLINDER Part Number : `12000KCN000`
2	GUIDE,IN VALVE Part Number : `12204439305`
3	GUIDE,EX VALVE Part Number : `12206KCN305`
4	12251KEG910 Part Number : `12251KEG910`
4	12251KEH910 Part Number : `12251KEH910`
5	RUBBER OIL SEAL Part Number : `12271383000`
6	COVER L CYL HEAD Part Number : `12331KCJ710`
7	12339KCJ710 Part Number : `12339KCJ710`
8	CAP HOLE Part Number : `12361383000`
9	INSULATOR,CARB Part Number : `16210KCT690`
9	INSULATOR,CARB Part Number : `16210KEH600`
10	BOLT,FLANGE 6X35 Part Number : `90001GHB700`
10	BOLT,FLANGE 6X35 Part Number : `957010603500`
11	90041KW1901 Part Number : `90041KW1901`
12	WASHER SEAL 8MM Part Number : `90442028000`
13	NUT HEX CAP Part Number : `90443107000`
14	O RING 7.5X2.5 Part Number : `91301107001`
15	O-RING,10X1.6 Part Number : `91301200000`
16	O-RING 35X3 Part Number : `91303KK3831`
17	O-RING,33.5X3.0 Part Number : `91304K84N01`
18	BOLT 2 STUD 6X16 Part Number : `92912060160B`
19	NUT,FLANGE 6MM Part Number : `9405006000`
20	WASHER PLAIN 6MM Part Number : `9410106000`
21	PIN DOWEL 8X14 Part Number : `9430108140`
22	BOLT FLANGE 6X22 Part Number : `960010602200`
23	BOLT SOCKET 6X110 Part Number : `967000611000`
24	SPARK PLUG X24EPU9 (DS) Part Number : `9806958921`
