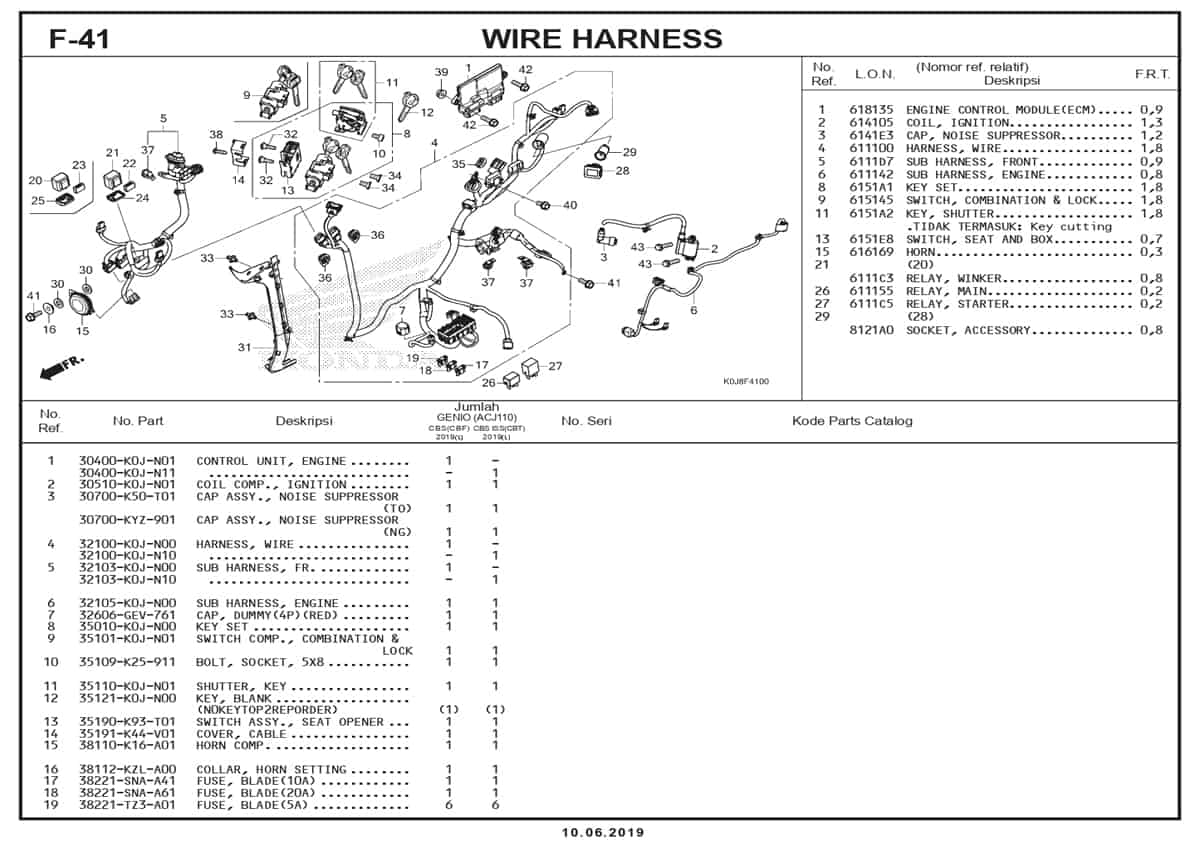

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Eng Control Unit | 30400K0JN01 |
|
| 1 | Eng Control Unit | 30400K0JN61 |
|
| 1 | Eng Control Unit | 30400K0JN11 |
|
| 1 | Eng Control Unit | 30400K0JN71 |
|
| 2 | Coil Comp Ignition (SE39) | 30510K0JN01 |
|
| 3 | Cap Assy Noise Suppressor | 30700K50T01 |
|
| 3 | Cap Assy Noise Suppressor | 30700KYZ901 |
|
| 4 | Harness Wire | 32100K0JN00 |
|
| 4 | Harness Wire | 32100K0JN10 |
|
| 5 | Sub Harness FR | 32103K0JN00 |
|
| 5 | Sub Harness FR | 32103K0JN10 |
|
| 6 | Sub Harness Eng | 32105K0JN00 |
|
| 7 | Dummy WPC 4P 090 M (RED) | 32606GEV761 |
|
| 8 | Key Set | 35010K0JN00 |
|
| 9 | Switch Comp Comb & Lock | 35101K0JN01 |
|
| 10 | Bolt Socket 5X8 | 35109KWB600 |
|
| 11 | Shutter Key | 35110K0JN01 |
|
| 12 | Key Blank | 35121K0JN00 | - |
| 13 | Switch Assy Seat Opener | 35190K93T01 |
|
| 14 | Cover Cable | 35191K44V01 |
|
| 15 | Horn Comp (HIGH) | 38110K16A01 |
|
| 16 | Collar Horn Setting | 38112KZLA00 |
|
| 17 | Fuse Blade (10A) | 38221SNAA41 |
|
| 18 | Fuse Blade (20A) | 38221SNAA61 |
|
| 19 | Fuse Blade (5A) | 38221TZ3A01 |
|

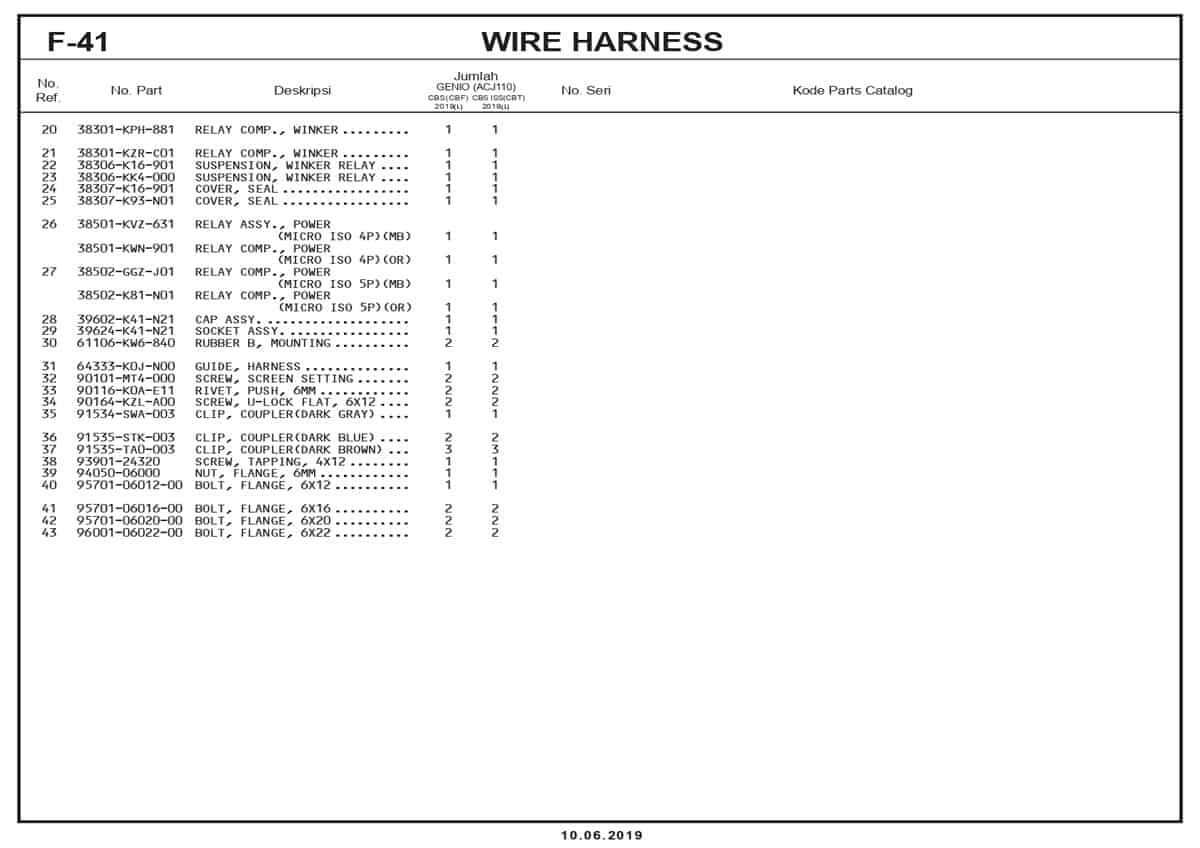

| 20 | Relay Comp Winker | 38301KPH881 |
|
| 21 | Relay Comp Winker (DS) | 38301KZRC01 |
|
| 22 | Suspension Winker Relay | 38306K16901 |
|
| 23 | Suspension Relay | 38306KK4000 |
|
| 24 | Cover Seal (DS) | 38307K16901 |
|
| 25 | Cover Seal | 38307K93N01 |
|
| 26 | Relay Comp Power Micro Iso 4P | 38501KVZ631 |
|
| 26 | Relay Comp Power Micro Iso 4P | 38501KWN901 |
|
| 27 | Relay Comp Power Micro Iso 5P | 38502GGZJ01 |
|
| 27 | Relay Comp Power Micro Iso 5P | 38502K81N01 |
|
| 28 | Cap Assy | 39602K41N21 |
|
| 29 | Socket Assy | 39624K41N21 |
|
| 30 | Rubber B Mounting | 61106KW6840 |
|
| 31 | Guide Harness | 64333K0JN00 |
|
| 32 | Screw Screen Set | 90101MT4000 |
|
| 33 | Rivet Push 6MM | 90116K0AE11 |
|
| 34 | Screw U-Lock Flat 6X12 | 90164KZLA00 |
|
| 35 | Clip Coupler (Dark Gray) | 91534SWA003 |
|
| 36 | Clip Coupler (Dark Blue) | 91535STK003 |
|
| 37 | Clip Coupler (Dark Brown) | 91535TA0003 |
|
| 38 | Screw Tapping 4X12 | 9390124320 |
|
| 39 | Nut Flange 6MM | 9405006000 |
|
| 40 | Bolt Flange 6X12 | 957010601200 |
|
| 41 | Bolt Flange 6X16 | 957010601600 |
|
| 42 | Bolt Flange 6X20 | 957010602000 |
|
| 43 | Bolt Flange 6X22 | 960010602200 |
|
