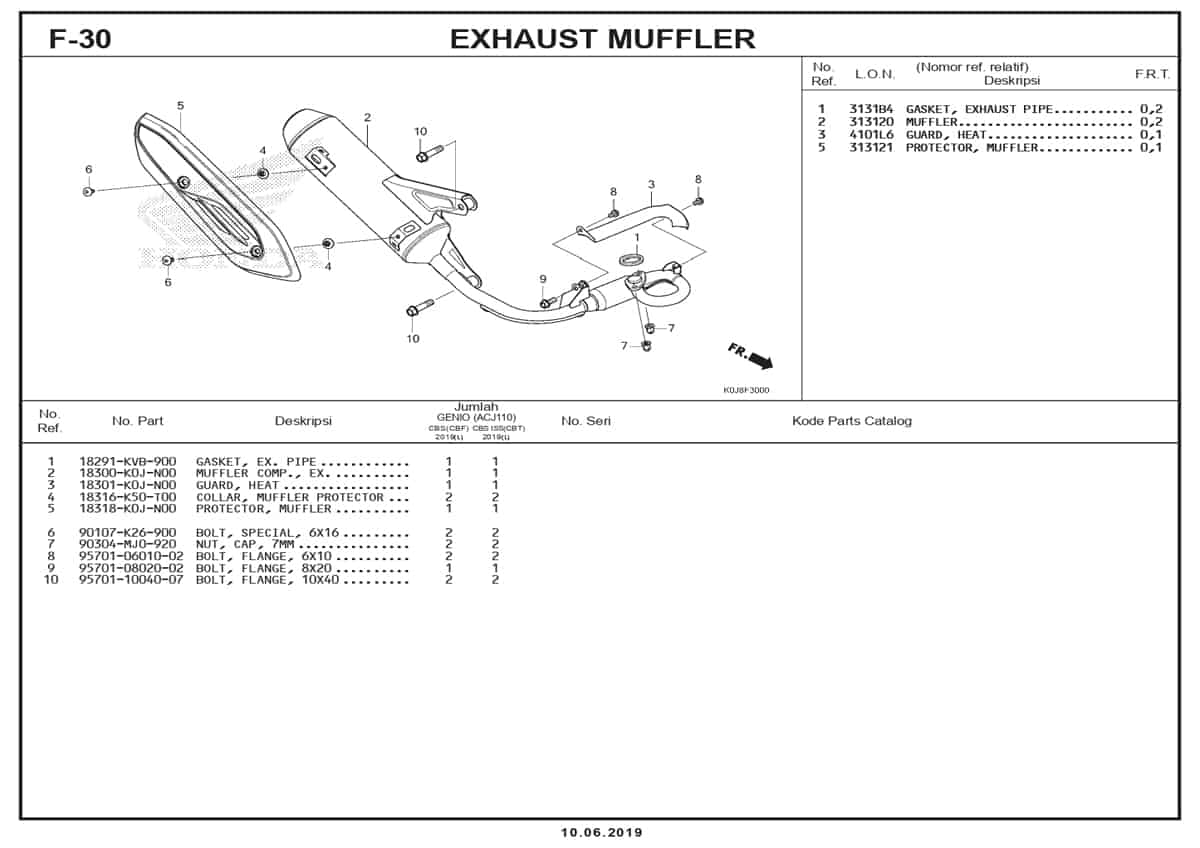

F30 – Exhaust Muffler – Katalog Honda Genio

#	Informasi Produk	Visual
1	Gasket Exh Pipe Part Number : `18291KVB900`
2	Muffler Comp Exh Part Number : `18300K0JN00`
2	Muffler Comp Exh Part Number : `18300K0JN01`
3	Heat Guard Part Number : `18301K0JN00`
3	Heat Guard Part Number : `18301K2FN00`
4	Collar Muffler Protector Part Number : `18316K50T00`
5	Protector Muffler Part Number : `18318K0JN00`
6	Bolt Special 6X16 Part Number : `90107K26900`
7	Nut Hex Cap 7MM Part Number : `90304MJ0920`
8	Bolt Flange 6X10 Part Number : `957010601002`
8	Bolt Flange 6X10 Part Number : `957010601000`
9	Bolt Flange 8X20 Part Number : `957010802002`
10	Bolt Flange 10X40 Part Number : `957011004007`
