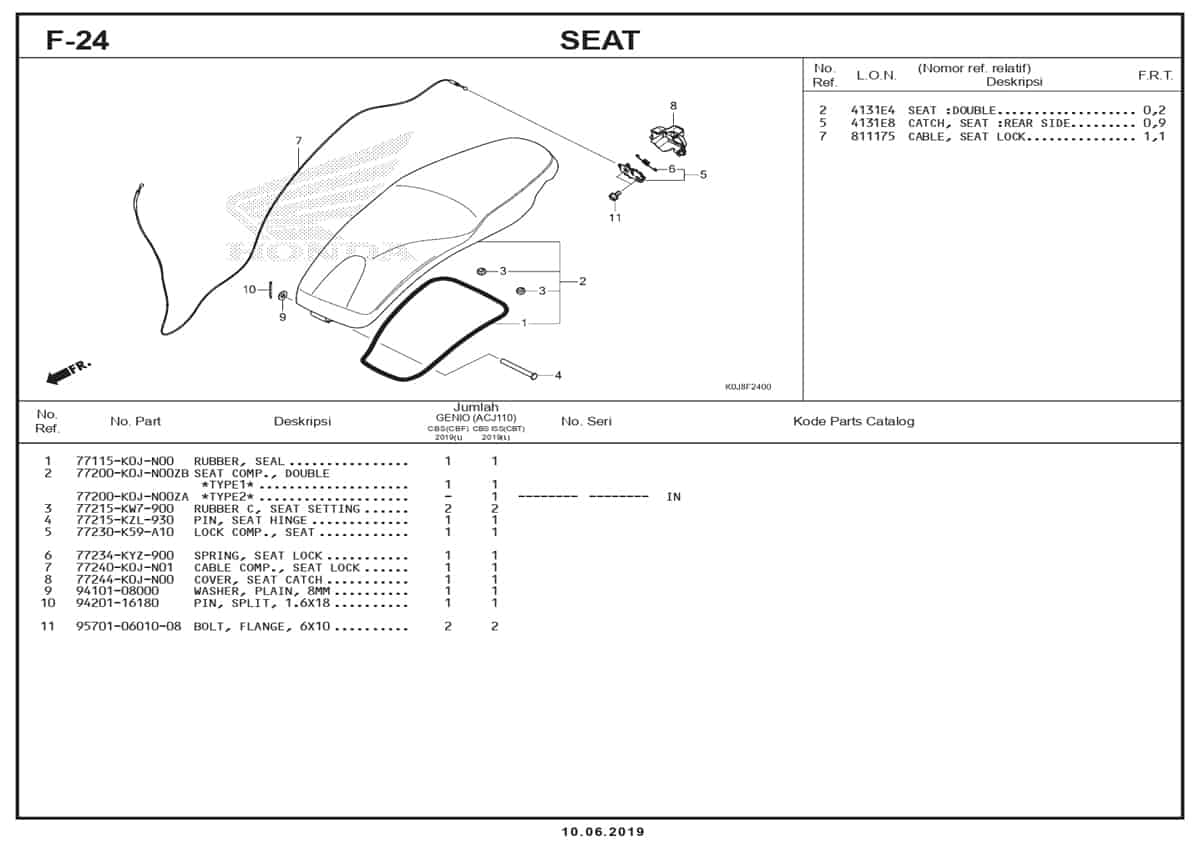

F24 – Seat – Katalog Honda Genio

#	Informasi Produk	Visual
1	Rubber Seal Part Number : `77115K0JN00`
2	Seat Comp Double Type 1 Part Number : `77200K0JN00ZB`
2	Seat Comp Double Type 2 Part Number : `77200K0JN00ZA`
2	Seat Comp Double Type 1 Part Number : `77200K0JN90ZB`
3	Rubber C Seat Set Part Number : `77215KW7900`
4	Pin Seat Hinge Part Number : `77215KZL930`
5	Lock Comp Seat Part Number : `77230K59A10`
6	Spring Seat Lock Part Number : `77234KYZ900`
7	Cable Comp Seat Lock Part Number : `77240K0JN01`
8	Cover Seat Catch Part Number : `77244K0JN00`
9	Washer Plain 8MM Part Number : `9410108000`
10	Pin Split 1.6X18 Part Number : `9420116180`
11	Bolt Flange 6X10 Part Number : `957010601008`
