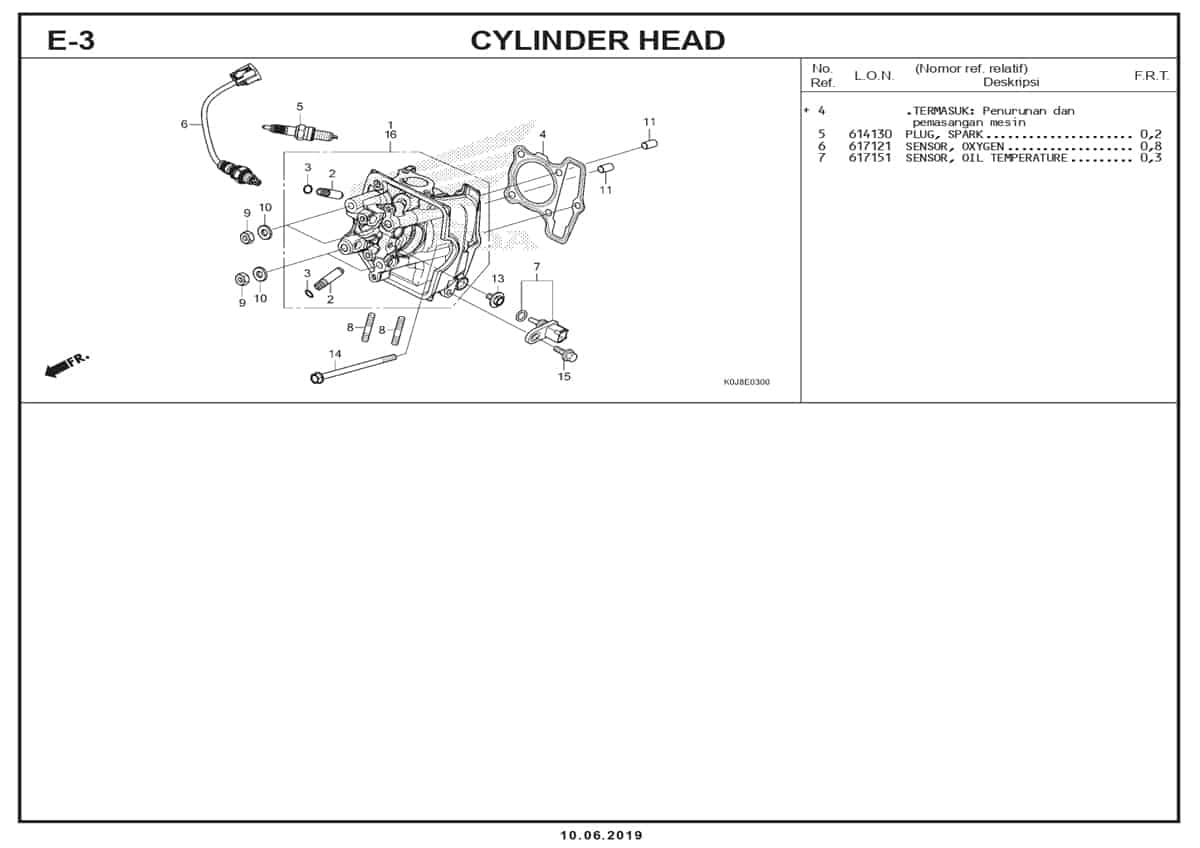

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Head Comp Cylinder | 12200K0JN00 |
|
| 1 | Head Comp Cylinder | 12200K1AN00 |
|
| 2 | Guide Valve (O.S) | 12204K0JP00 |
|
| 3 | Clip Valve Guide | 12206K0JN00 |
|
| 4 | Gasket Cylinder Head | 12251K0JN01 |
|
| 5 | Plug Spark (MR9C-9N) | 31919K25601 |
|
| 5 | Spark Plug U27EPR-N9 (DS) | 31919K25602 |
|
| 6 | Sensor Oxygen | 36532K0JN01 |
|
| 6 | Sensor Oxygen | 36532K1AN01 |
|
| 7 | Sensor Assy Oil Temp | 37750K0JN21 |
|
| 7 | Sensor Assy Oil Temp | 37750K1AN01 |
|
| 8 | Bolt Stud 7X16.5 | 90032K0JN00 |
|
| 9 | Nut Hex 7MM | 90201GCC000 |
|
| 10 | Washer 7.2X16X2.5 | 90402KWW740 |
|
| 11 | Dowel Pin Special 8X14 | 90701KFM900 |
|
| 13 | Bolt Washer 6X12 | 934040601200 |
|
| 13 | Bolt Washer 6X12 | 934040601208 |
|
| 14 | Bolt Flange 6X105 | 957010610500 |
|
| 15 | Bolt Flange SH 6X16 | 960010601600 |
|
| 16 | Head Assy Cylinder | 1220BK0JN00 |
|
