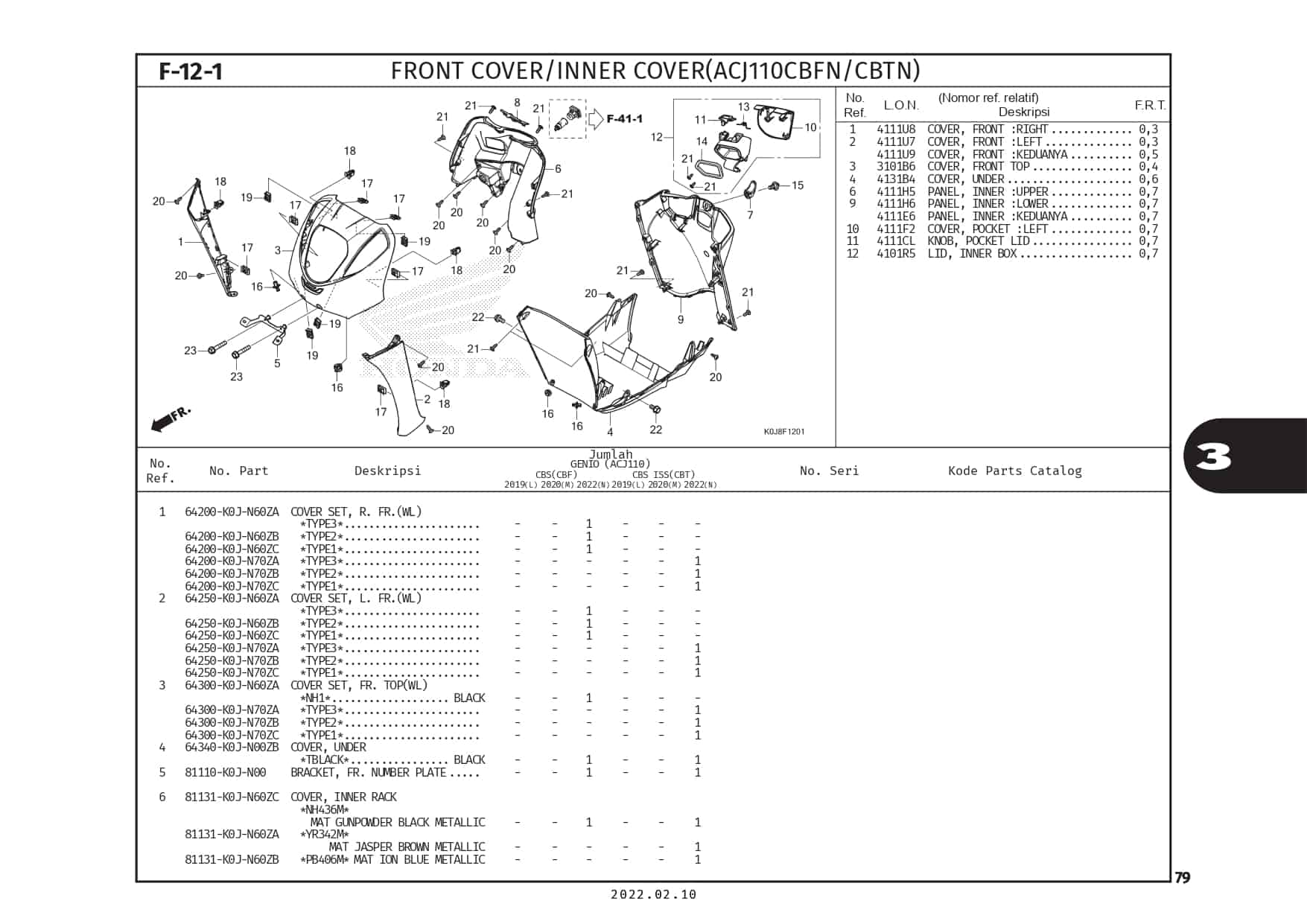

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Cover R Front (MA BL MT) | 64201K0JN00ZM |
|
| 1 | Cover R Front (MT SA GR) | 64201K0JN00MSG |
|
| 1 | Cover R Front (MA JB MT) | 64201K0JN00MJB |
|
| 1 | Cover R Front MO BR ME | 64201K0JN00ZA |
|
| 1 | Cover R Front MT GN BL | 64201K0JN00ZC |
|
| 1 | Cover R Front RO WH | 64201K0JN00ZD |
|
| 1 | Cover R Front VA RD | 64201K0JN00ZB |
|
| 1 | Cowl R Front BLK | 64201K0JN00ZE |
|
| 1 | Cover R Front AR BL ME | 64201K0JN00ZH |
|
| 1 | Cover R Front HU SL ME | 64201K0JN00ZF |
|
| 1 | Cover R Front PL BL ME | 64201K0JN00ZG |
|
| 1 | Cover R Front MT CR SL | 64201K0JN00ZL |
|
| 1 | Cover R Front VI WH | 64201K0JN00VWH |
|
| 2 | Cover L Front (VI WH) | 64202K0JN00VWH |
|
| 2 | Cover L Front (MT CR SL) | 64202K0JN00ZL |
|
| 2 | Cover L Front Ma Jb Mt | 64202K0JN00MJB |
|
| 2 | Cover L Front (MA BL MT) | 64202K0JN00ZM |
|
| 2 | Cover L Front (MT SA GR) | 64202K0JN00MSG |
|
| 2 | Cover L Front AR BL ME | 64202K0JN00ZH |
|
| 2 | Cover L Front (MA BL MT) | 64202K0JN00ZM |
|
| 2 | Cover L Front BLK | 64202K0JN00ZE |
|
| 2 | Cover L Front HU SL ME | 64202K0JN00ZF |
|
| 2 | Cover L Front MO BR ME | 64202K0JN00ZA |
|
| 2 | Cover L Front MT GN BL | 64202K0JN00ZC |
|
| 2 | Cover L Front PL BL ME | 64202K0JN00ZG |
|
| 2 | Cover L Front RO WH | 64202K0JN00ZD |
|
| 2 | Cvr,L Front (VA RD) | 64202K0JN00ZB |
|
| 3 | Cover Fr Top (MA BL MT) | 64301K0JN60MIB |
|
| 3 | Cover Fr Top (MA JB MT) | 64301K0JN60MJB |
|
| 3 | Cover Fr Top (MT SA GR) | 64301K0JN60MSG |
|
| 4 | COVER,UNDER (BLK) | 64340K0JN00ZB |
|
| 5 | BRKT,FR NUMBER PLATE | 81110K0JN00 |
|
| 6 | COVER,INNER RACK (MT GN BL) | 81131K0JN60ZC |
|
| 6 | COVER,INNER RACK (MA JB MT) | 81131K0JN60ZA |
|
| 6 | COVER,INNER RACK (MA BL MT) | 81131K0JN60ZB |
|
| 7 | HOOK LUGGAGE | 81132GAH000YV |
|
| 8 | CVR,INNER UPPER (MT GN BL) | 81134K0JN00ZC |
|
| 8 | COVER,INNER UPPER (MA JB MT) | 81134K0JN00ZG |
|
| 8 | COVER,INNER UPPER (MA BL MT) | 81134K0JN00ZJ |
|
| 9 | COVER,INNER (BLK) | 81141K0JN60ZB |
|
| 9 | COVER,INNER (CA BR) | 81141K0JN60ZA |
|
| 10 | LID,INNER POCKET (BLK) | 81142K0JN60ZB |
|
| 10 | LID,INNER POCKET (CA BR) | 81142K0JN60ZA |
|
| 11 | KNOB,INNER POCKET | 81144K0JN60ZB |
|
| 11 | KNOB,INNER POCKET (CA BR) | 81144K0JN60ZA |
|
| 12 | Lid Assy Inner Pocket Black | 81145K0JN60ZA |
|
| 12 | Lid Assy Inner Pocket Brown | 81145K0JN60ZB |
|
| 13 | SPG, LID | 81145K93N00 |
|
| 14 | SEAL,INNER POCKET | 81291K1AN10 |
|
| 15 | BOLT SPECIAL 6MM | 90107KVB900 |
|
| 16 | RIVET PUSH 6MM | 90116K0AE11 |
|
| 17 | NUT SPRING 4MM | 90302KWWA00 |
|
| 18 | CLIP SNAP FIT(PO) | 90666K59A11 |
|
| 19 | NUT CLIP 5MM. | 90677KANT00 |
|
| 20 | SCREW TAPPING 4X12 | 9390334310 |
|
| 21 | SCREW TAPPING 4X12 | 9390334380 |
|
| 22 | BOLT FLANGE 6X12 | 957010601200 |
|
| 23 | BOLT FLANGE 6X32 | 957010603200 |
|
