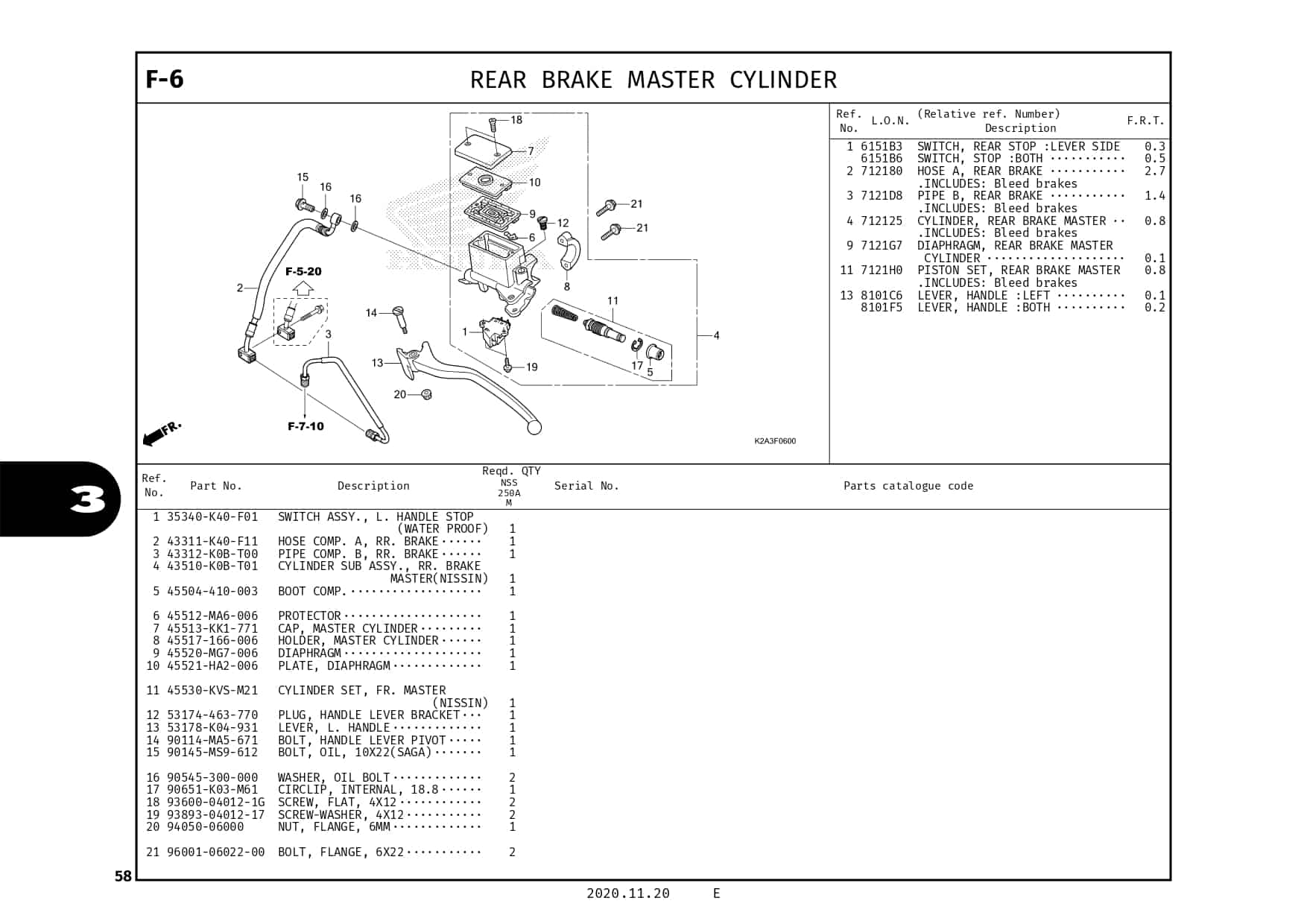

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SW ASSY LH STOP | 35340K40F01 |
|
| 2 | HOSE COMP A RR BR | 43311K40F11 | - |
| 3 | PIPE COMP B RR BR | 43312K0BT00 | - |
| 4 | SUB ASSY RR M/C R WHEEL B | 43510K0BT01 | - |
| 5 | BOOT COMP | 45504410003 |
|
| 6 | PROTECTOR | 45512MA6006 |
|
| 7 | CAP MASTER CYLINDER | 45513KK1771 |
|
| 8 | HOLDER MASTER CYL | 45517166006 |
|
| 9 | DIAPHRAGM | 45520MG7006 |
|
| 10 | PLATE,DIAPHRAGM | 45521HA2006 |
|
| 11 | CYLINDER SET.FR M | 45530KVSM21 |
|
| 12 | PLUG, HANDLE LEVER BRACKET | 53174463770 | - |
| 13 | LEVER L HNDL | 53178K04931 |
|
| 14 | BOLT, HANDLE LEVER PIVOT | 90114MA5671 |
|
| 15 | BOLT OIL 10X22 | 90145MS9612 | - |
| 16 | WASHER OIL BOLT | 90545300000 |
|
| 17 | CIRCLIP, INTERNAL, 18.8 | 90651K03M61 |
|
| 18 | SCREW FLAT, 4X12 | 93600040121G |
|
| 19 | SCREW WASHER 4X12 | 938930401217 |
|
| 20 | NUT,FLANGE 6MM | 9405006000 |
|
| 21 | BOLT FLANGE 6X22 | 960010602200 |
|
