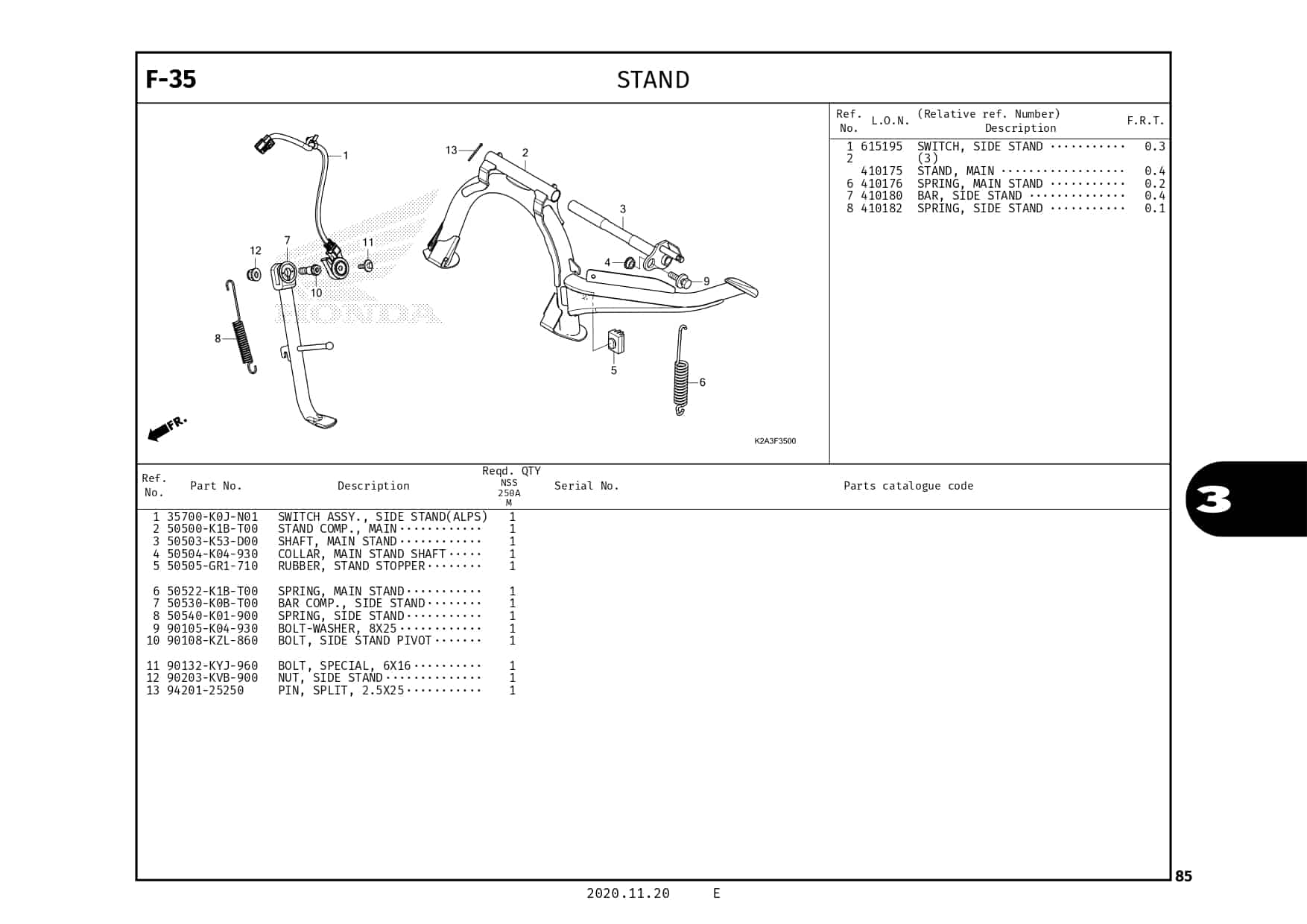

F-35 Stand – Katalog Honda Forza
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
SW ASSY,SIDE STAND |
35700K0JN01 |
|
| 2 |
STAND COMP MAIN |
50500K1BT00 |
-
|
| 3 |
SHAFT, MAIN STAND |
50503K53D00 |
|
| 4 |
COLLAR M STAND SH |
50504K04930 |
-
|
| 5 |
STOPPER RUBBER, STAND |
50505GR1710 |
|
| 6 |
SPG MAIN STAND |
50522K1BT00 |
-
|
| 7 |
BAR COMP SIDE |
50530K0BT00 |
-
|
| 8 |
SPG SIDE STAND LBL |
50540K01900 |
-
|
| 9 |
BOLT-WASH 8X25 |
90105K04930 |
-
|
| 10 |
BOLT, SIDE STAND PIVOT |
90108KZL860 |
|
| 11 |
BOLT,SPECAIL 6X16 |
90132KYJ960 |
|
| 12 |
NUT SIDE STAND |
90203KVB900 |
|
| 13 |
PIN COTTER 2.5MM |
9420125250 |
-
|
