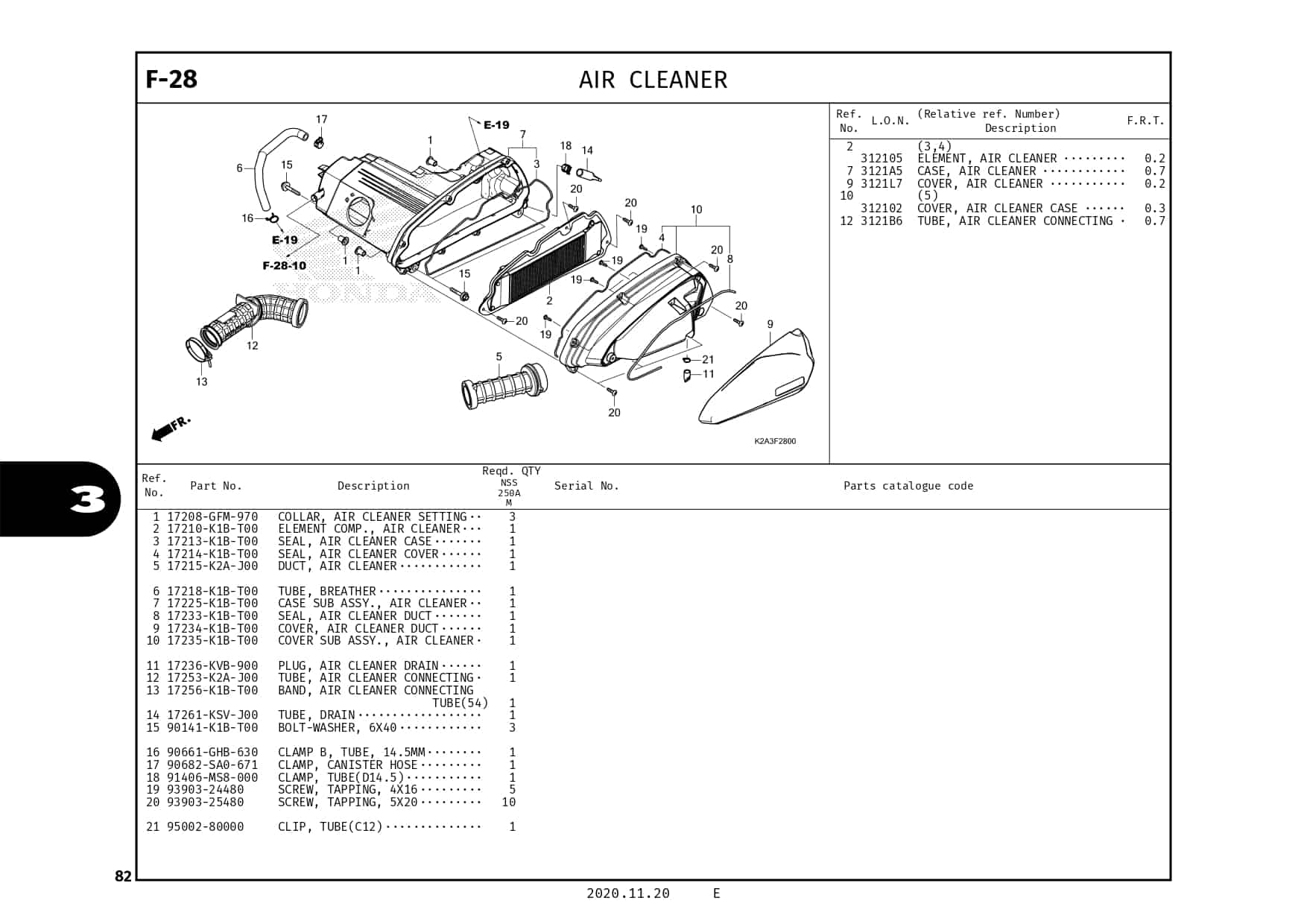

F-28 Air Cleaner – Katalog Honda Forza

#	Informasi Produk	Visual
1	COLLAR, AIR CLEANER SETTING Part Number : `17208GFM970`
2	ELEMENT COMP AIR/C Part Number : `17210K1BT00`
3	SEAL AIR/C CASE Part Number : `17213K1BT00`
4	SEAL AIR/C COVER Part Number : `17214K1BT00`
5	DUCT AIR/C Part Number : `17215K2AJ00`
6	TUBE BREATHER Part Number : `17218K1BT00`
7	CASE SUB ASSY AIR/C Part Number : `17225K1BT00`
8	SEAL AIR/C DUCT Part Number : `17233K1BT00`
9	COVER AIR/C DUCT Part Number : `17234K1BT00`
10	COVER SUB ASSY AIR Part Number : `17235K1BT00`
11	PLUG A/C DRAIN Part Number : `17236KVB900`
12	TUBE AIR/C CONNEC Part Number : `17253K2AJ00`
13	BAND 54 AIR/C CON Part Number : `17256K1BT00`
14	TUBE DRAIN Part Number : `17261KSVJ00`
15	BOLT-WASH BF 6X40 Part Number : `90141K1BT00`
16	CLAMP (B) TUBE 14.5MM Part Number : `90661GHB630`
17	CLAMP CNSTR HOSE Part Number : `90682SA0671`
18	CLAMP, TUBE(D14.5) Part Number : `91406MS8000`
19	SCREW, TAPPING, 4X16 Part Number : `9390324480`
20	SCREW,TAPP 5X2 Part Number : `9390325480`
21	CLIP, TUBE(C12) Part Number : `9500280000`
