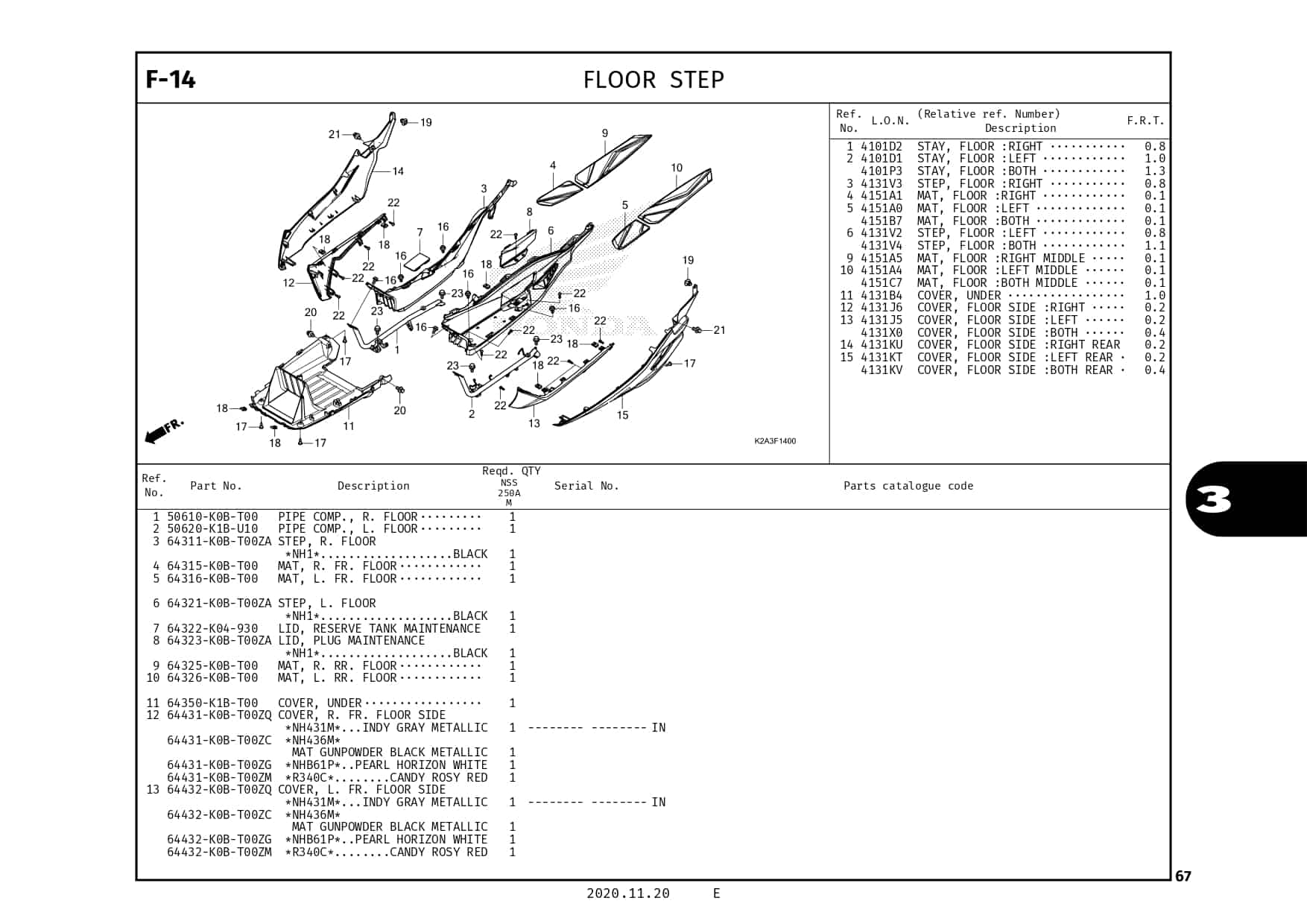

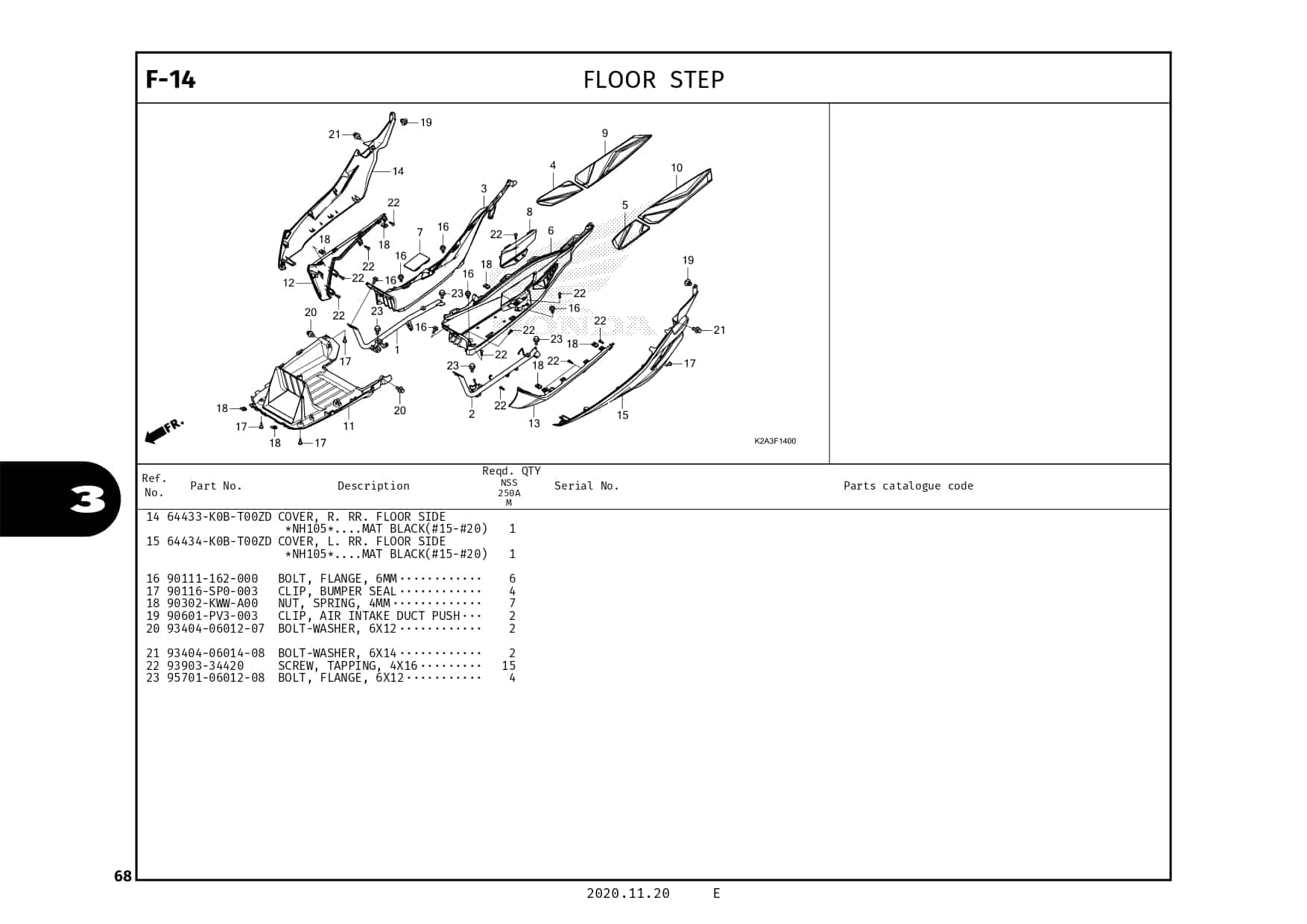

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | PIPE COMP R FLOORAND | 50610K0BT00 | - |
| 2 | PIPE COMP L FLOOR | 50620K1BU10 | - |
| 3 | STEP R FLOOR COWL | 64311K0BT00ZA |
|
| 4 | MAT FLOOR R FR | 64315K0BT00 | - |
| 5 | MAT FLOOR L FR | 64316K0BT00 | - |
| 6 | STEP L FLOOR | 64321K0BT00ZA |
|
| 7 | LID RESERVE TANK | 64322K04930 | - |
| 8 | LID PLUG MAINTENA | 64323K0BT00ZA | - |
| 9 | MAT FLOOR R RR | 64325K0BT00 | - |
| 10 | MAT FLOOR L RR H | 64326K0BT00 | - |
| 11 | COVER UNDER | 64350K1BT00 | - |
| 12 | COVER R FLOOR SID | 64431K0BT00ZQ | - |
| 12 | COVER R FLOOR SIDFRONT | 64431K0BT00ZC | - |
| 12 | COVER R FLOOR SIDFRONT | 64431K0BT00ZG |
|
| 12 | COVER R FR FLOOR SD | 64431K0BT00ZM | - |
| 13 | COVER L FLOOR SID | 64432K0BT00ZQ | - |
| 13 | COVER L FLOOR SIDSHIELD | 64432K0BT00ZC | - |
| 13 | COVER L FLOOR SIDSHIELD | 64432K0BT00ZG | - |
| 13 | COVER L FR FLOOR SD | 64432K0BT00ZM | - |
| 14 | COVER R FLOOR SID | 64433K0BT00ZD |
|
| 15 | COVER L FLOOR SID | 64434K0BT00ZD |
|
| 16 | BOLT FLANGE 6MM | 90111162000 |
|
| 17 | Clip Bumper Seal | 90116SP0003 |
|
| 17 | Clip Bumper Seal | 90116K2PV61 |
|
| 18 | NUT SPRING 4MM | 90302KWWA00 |
|
| 19 | PUSH CLIP,AIR INT DUCT | 90601PV3003 |
|
| 20 | BOLT WASHER 6X12 | 934040601207 |
|
| 21 | BOLT-WASH 6X14 | 934040601408 | - |
| 22 | 9390334421 | 9390334420 |
|
| 22 | Screw Tapping 4x16 | 9390334421 |
|
| 23 | BOLT FLANGE 6X12 | 957010601208 |
|
