E-7 Right Crankcase Cover Water Pump – Katalog Honda Forza

Gambar Bagian

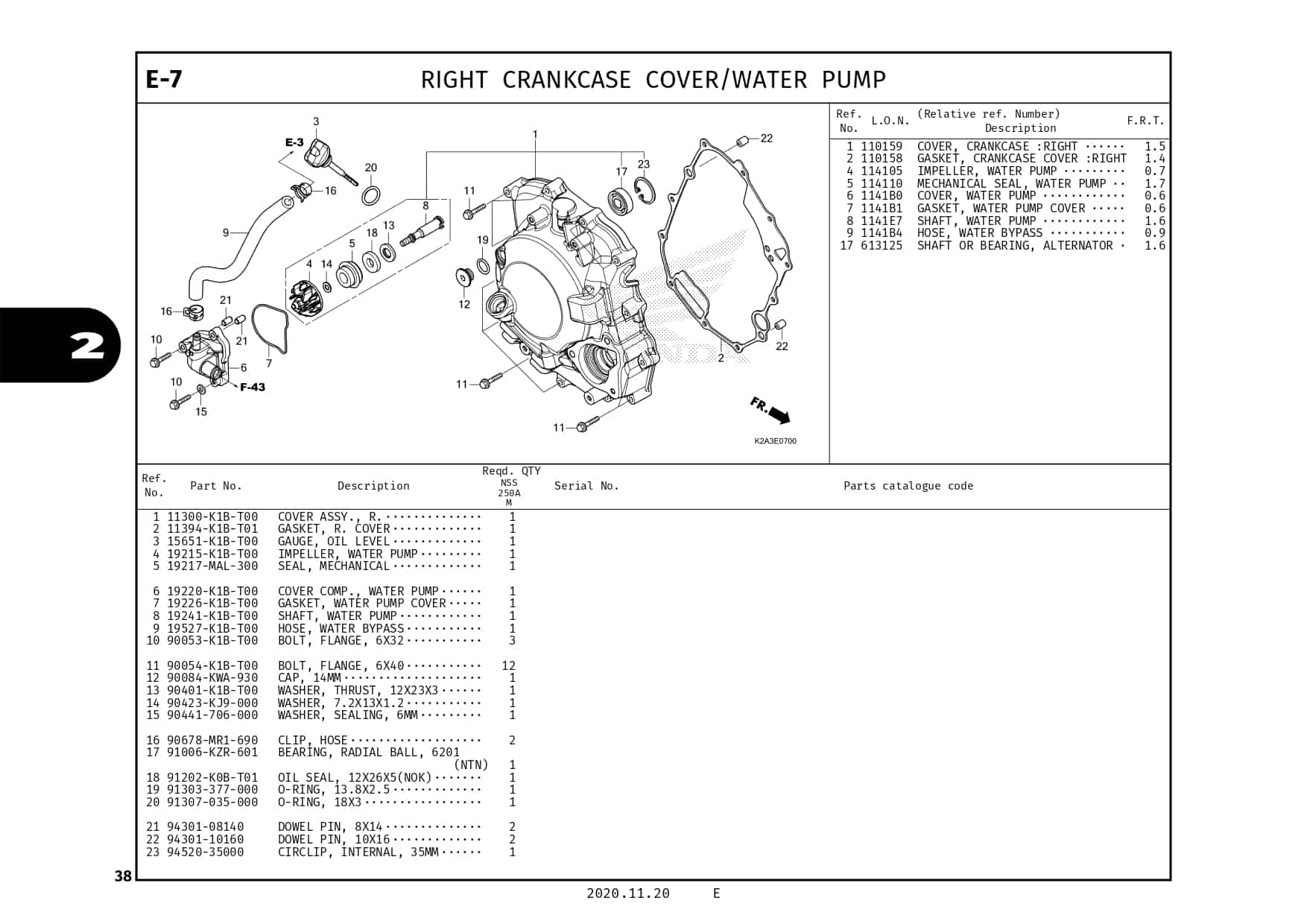

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 COVER ASSY R 11300K1BT00 -
2 GASKET R COVER 11394K1BT01 -
3 GAUGE OIL LEVEL 15651K1BT00 -
4 IMPELLER WATER PU 19215K1BT00 -
5 SEAL MECHANICAL 19217MAL300 SEAL MECHANICAL
6 COVER COMP WATER PUMP 19220K1BT00 -
7 GASKET WATER PUMP 19226K1BT00 -
8 SHAFT WATER PUMP COVER 19241K1BT00 -
9 HOSE WATER BYPASS 19527K1BT00 -
10 BOLT FLANGE LNSH 90053K1BT00 -
11 BOLT FLANGE LNSH 90054K1BT00 -
12 CAP 14MM 90084KWA930 -
13 WASHER THRUST 12X 90401K1BT00 -
14 90423KW6900 90423KJ9000 -
15 WASHER SEAL 6MM 90441706000 -
16 CLIP A1 HOSE 90678MR1690 CLIP A1 HOSE
17 BEARING RADIAL BALL 6201 91006KZR601 BEARING RADIAL BALL 6201
18 OIL SEAL 12X26X5 36X2 91202K0BT01 -
19 91303377001 91303377000 91303377001
19 O Ring 13.8 X 2.5 91303377001 O Ring 13.8 X 2.5
20 O-RING, 18X3 91307035000 O-RING, 18X3

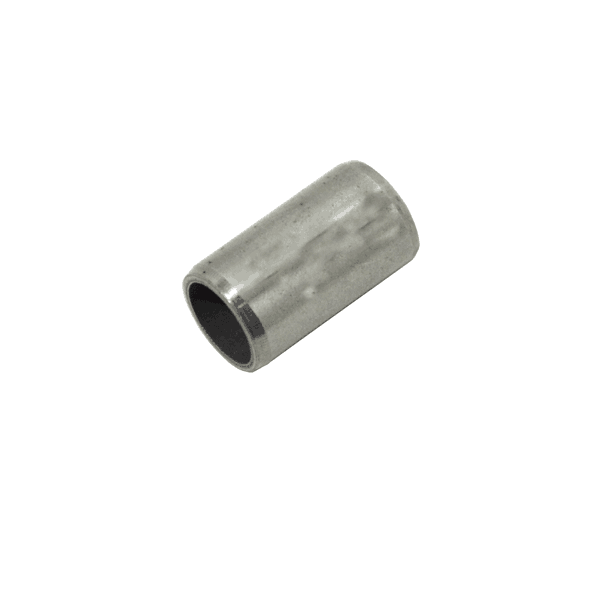

21 PIN DOWEL 8X14 9430108140 PIN DOWEL 8X14
22 DOWEL,PIN,10X16 9430110160 DOWEL,PIN,10X16
23 CIRCLIP IN 35 9452035000 CIRCLIP IN 35
