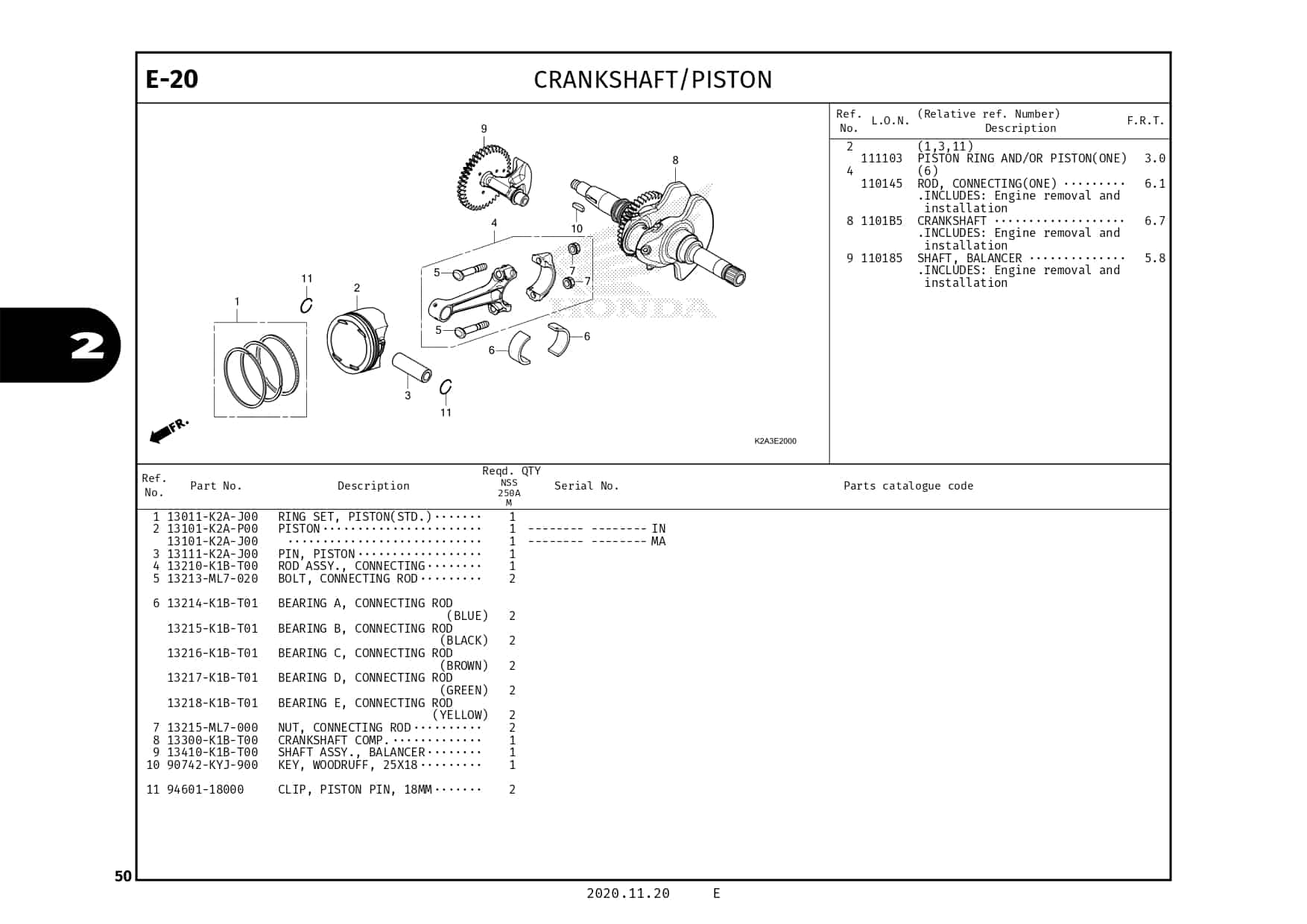

E-20 Crankshaft Piston – Katalog Honda Forza
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
RING SET PISTON S |
13011K2AJ00 |
-
|
| 2 |
PISTON |
13101K2AP00 |
-
|
| 2 |
PISTON |
13101K2AJ00 |
-
|
| 3 |
PIN PISTON |
13111K2AJ00 |
-
|
| 4 |
CONN ROD ASSY |
13210K1BT00 |
-
|
| 5 |
BOLT, CONNECTING ROD |
13213ML7020 |
-
|
| 6 |
BRG A CONN ROD |
13214K1BT01 |
-
|
| 6 |
BRG B CONN ROD |
13215K1BT01 |
-
|
| 6 |
BRG C CONN ROD |
13216K1BT01 |
-
|
| 6 |
BRG D CONN ROD |
13217K1BT01 |
-
|
| 6 |
BRG E CONN ROD |
13218K1BT01 |
-
|
| 7 |
NUT, CONNECTING ROD |
13215ML7000 |
-
|
| 8 |
CRANKSHAFT COMP |
13300K1BT00 |
-
|
| 9 |
SHAFT ASSY BALANC |
13410K1BT00 |
-
|
| 10 |
KEY,WOODRUFF,25X18 |
90742KYJ900 |
|
| 11 |
PISTONPINCLIP18MM |
9460118000 |
-
|
