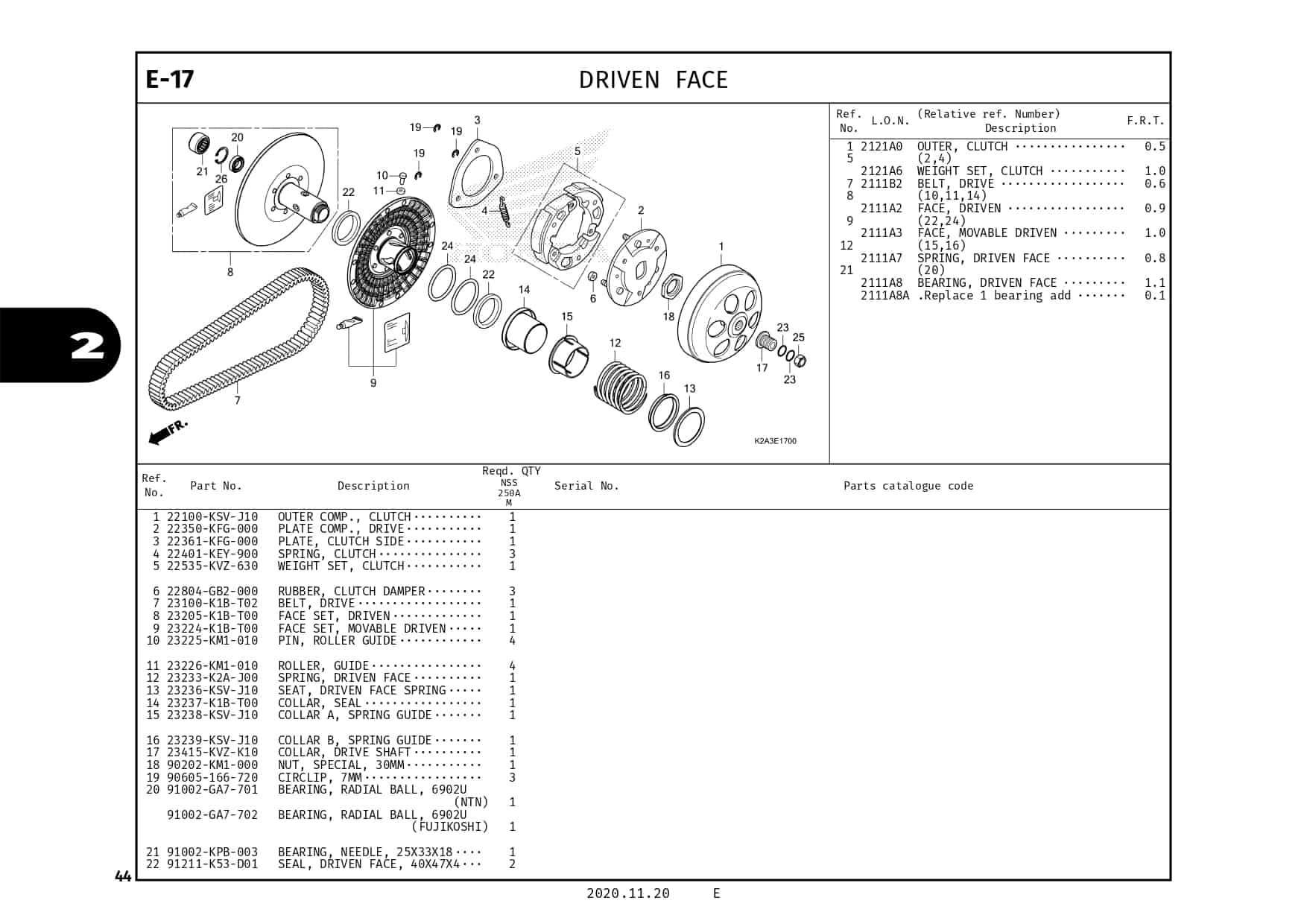

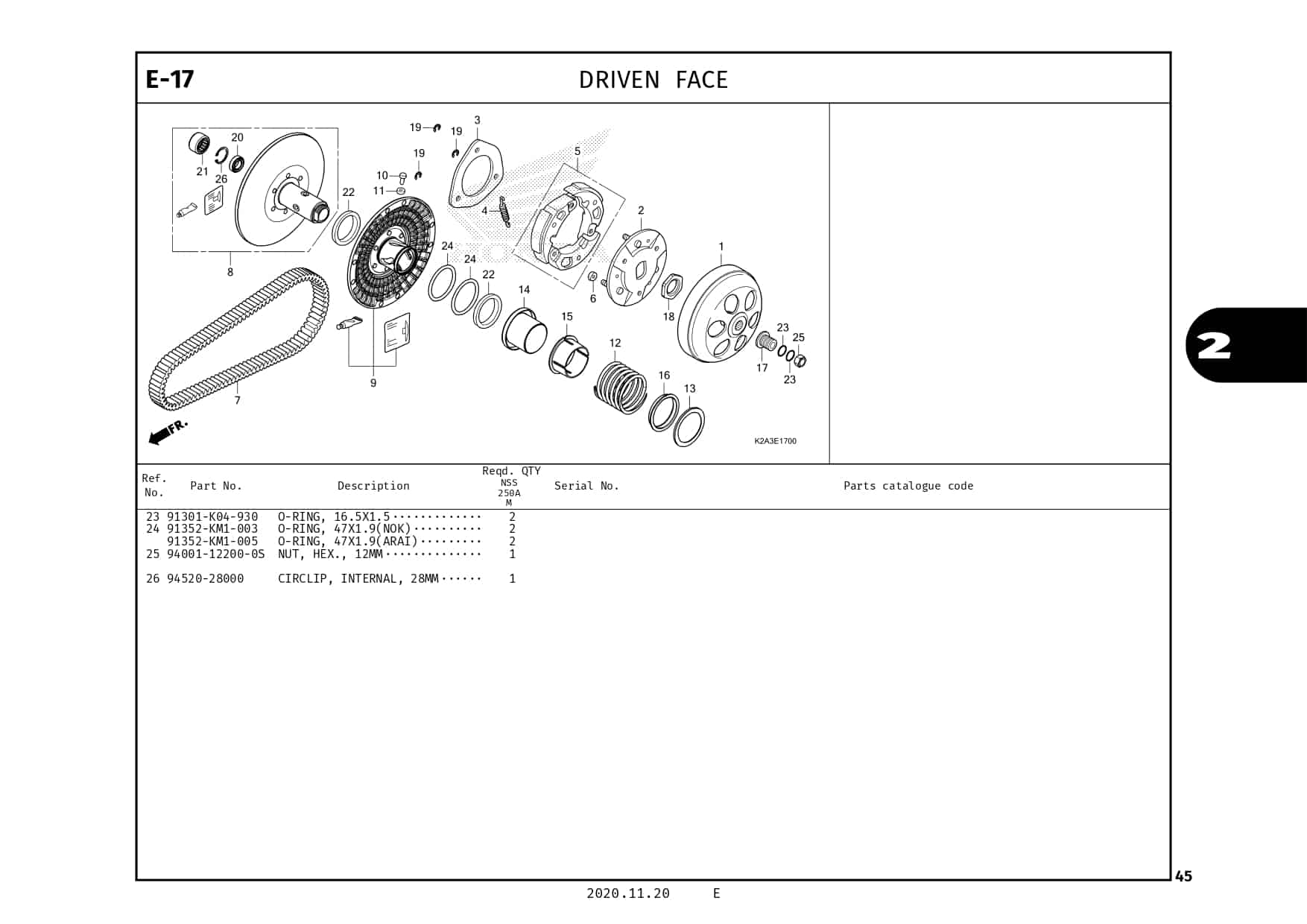

E-17 Driven Face – Katalog Honda Forza

#	Informasi Produk	Visual
1	OUTER COMP CLUTCH Part Number : `22100KSVJ10`
2	PLATE COMP DRIVE Part Number : `22350KFG000`
3	PLATE CLUTCH SIDE Part Number : `22361KFG000`
4	SPRING CLUTCH Part Number : `22401KEY900`
5	WEIGHT SET CLUTCH) Part Number : `22535KVZ630`
6	RUBBER CLUTCH DAMPER Part Number : `22804GB2000`
7	BELT DRIVE Part Number : `23100K1BT02`
8	FACE SET DRIVEN Part Number : `23205K1BT00`
9	FACE SET MOVABLE Part Number : `23224K1BT00`
10	PIN ROLLER GUIDE Part Number : `23225KM1010`
11	ROLLER GUIDE Part Number : `23226KM1010`
12	SPG DRIVEN FACE Part Number : `23233K2AJ00`
13	SEAT DRIVEN FACE SPG Part Number : `23236KSVJ10`
14	COLLAR SEAL Part Number : `23237K1BT00`
15	COLLAR SPG.GUIDE A Part Number : `23238KSVJ10`
16	COLLAR SPG GUIDE B Part Number : `23239KSVJ10`
17	COLLAR DRIVE SHAFEAR Part Number : `23415KVZK10`
18	NUT SPECIAL 30MM Part Number : `90202KM1000`
19	CIRCLIP 7MM Part Number : `90605166720`
20	BEARING RAD BALL 6902U Part Number : `91002GA7701`
20	BRG,BALL RADIAL 6902U Part Number : `91002GA7702`
21	BRG NDL 25X33X18 Part Number : `91002KPB003`
22	SEAL DRIVEN FACE Part Number : `91211K53D01`
23	O-RING 16.5X1.5 Part Number : `91301K04930`
24	91352KM1005 Part Number : `91352KM1003`
25	O-RING 47X1.9 Part Number : `91352KM1005`
25	NUT HEX 12MM Part Number : `94001122000S`
26	CIRCLIP INTERNAL 28MM Part Number : `9452028000`
