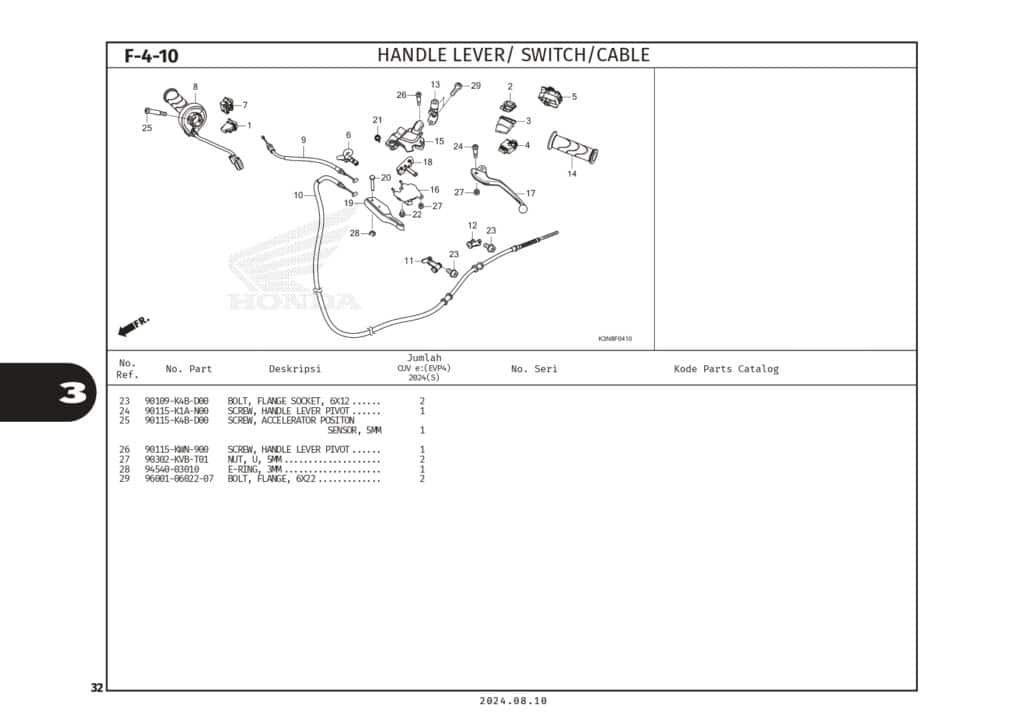

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SW UNIT,START | 35160K3NN01 | - |
| 2 | SW UNIT DIMMER | 35170K53D01 | - |
| 3 | SW UNIT,HORN | 35180GFM971 | - |
| 4 | SW UNIT,WINKER | 35200GJKN11 |
|
| 5 | SW UNIT,MULTI | 35300K3NN11 | - |
| 5 | SW UNIT,MULTI | 35300K3NN01 | - |
| 6 | SW ASY FR STOP(WATER PROF) | 35340K27V01 |
|
| 7 | SW UNIT,MODE CHANGE | 35360K3NN01 | - |
| 8 | SENSOR ASSY,GRIP APS | 35970K4BD01 | - |
| 9 | CABLE COMP,FR BRK CONN. | 43440K60B61 |
|
| 10 | CABLE COMP,RR BRAKE | 43450K3NN11 | - |
| 11 | CLAMPER A,RR BRAKE CABLE | 43455K3NN00 | - |
| 12 | CLAMPER B,RR BRAKE CABLE | 43456K3NN00 | - |
| 13 | HOLDER, MIRROR | 45517K81N30 |
|
| 14 | GRIP, L HANDLE | 53166K2SN00 |
|
| 15 | BRACKET,L BRAKE LEVER | 53172K2SN00 |
|
| 16 | COVER,L BRK LEVER BRKT | 53173K0JN00 |
|
| 17 | LEVER, L STRG HANDLE | 53178K2SN00 |
|
| 18 | EQUALIZER COMP | 53184K59A70 |
|
| 19 | LEVER COMP,BRAKE LOCK | 53185K1AN00 |
|
| 20 | PIN BRAKE LOCK LEVER | 53186K81N30 |
|
| 21 | SPRING BRAKE LOCK ARM RETURN | 53188K81N30 |
|
| 22 | SCREW PAN 5X8 | 90104K81N30 |
|
| 23 | BOLT,FLANGE SOCKET 6X12 | 90109K4BD00 | - |
| 24 | SCREW,HNDL LEVER PIVOT | 90115K1AN00 |
|
| 25 | SCREW,APS 5MM | 90115K4BD00 | - |
| 26 | SCREW,HNDL LEVERPIVOT | 90115KWN900 |
|
| 27 | NUT,U,5MM | 90302KVBT01 |
|
| 28 | E-RING 3 MM | 9454003010 |
|
| 29 | BOLT FLANGE 6X22 | 960010602207 |
|
