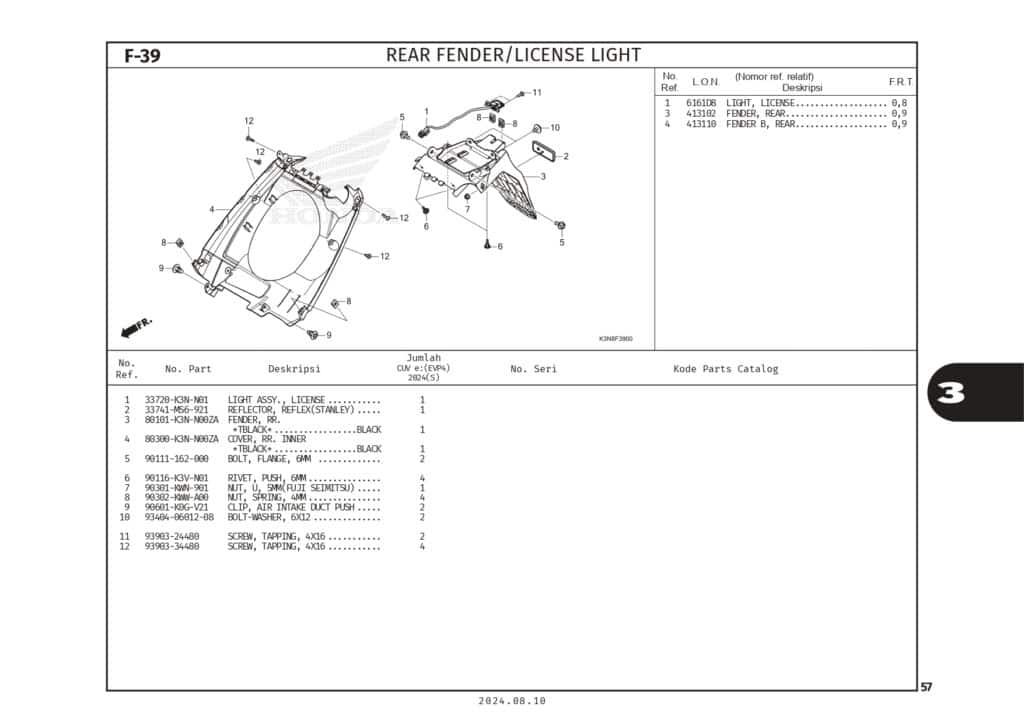

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | LIGHT ASSY,LICENSE | 33720K3NN01 | - |
| 2 | REFLECTOR REFLEX(ST) | 33741MS6921 |
|
| 3 | FENDER,REAR | 80101K3NN00ZA | - |
| 4 | COVER,RR INNER | 80300K3NN00ZA | - |
| 5 | BOLT FLANGE 6MM | 90111162000 |
|
| 6 | RIVET,PUSH 6MM | 90116K3VN01 |
|
| 7 | NUT, U, 5MM | 90301KWN901 |
|
| 8 | NUT SPRING 4MM | 90302KWWA00 |
|
| 9 | PUSH CLIP,AIR INT DUCT | 90601K0GV21 |
|
| 10 | BOLT-WASH,6X12 | 934040601208 |
|
| 11 | SCREW, TAPPING, 4X16 | 9390324480 |
|
| 12 | SCREW TAPPING 4X16 | 9390334480 |
|
