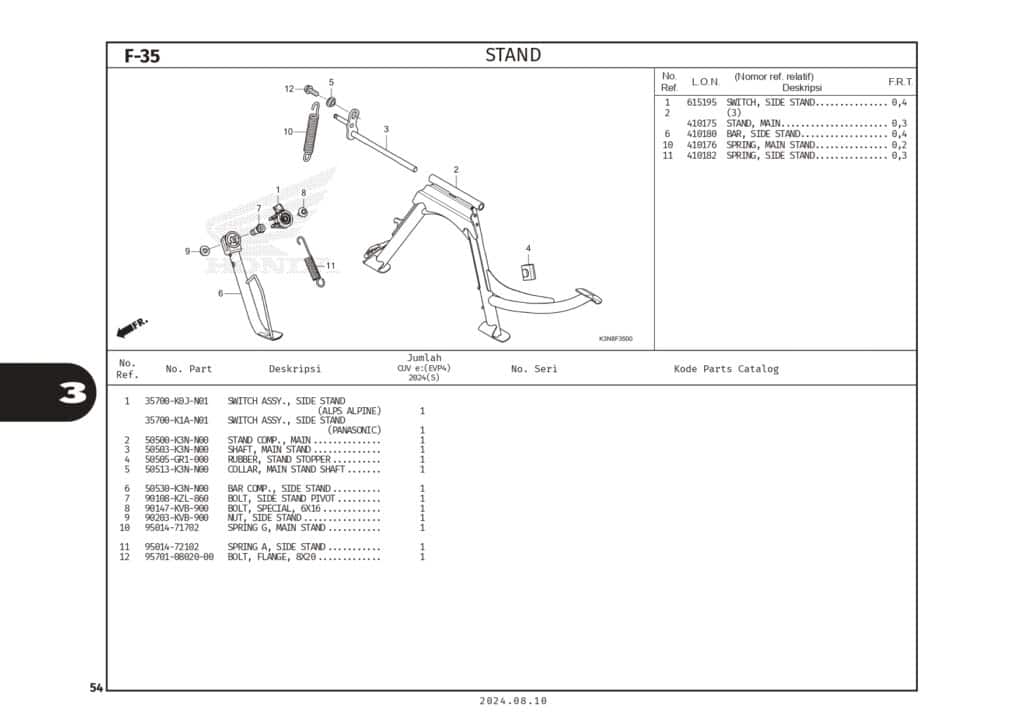

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SW ASSY,SIDE STAND | 35700K0JN01 |
|
| 1 | SW ASSY,SIDE STAND | 35700K1AN01 |
|
| 2 | STAND COMP,MAIN | 50500K3NN00 | - |
| 3 | SHAFT,MAIN STAND | 50503K3NN00 | - |
| 4 | STOPPER RUBBER, STAND | 50505GR1000 | - |
| 5 | COLLAR,M STAND SHAFT | 50513K3NN00 | - |
| 6 | BAR COMP,SIDESTAND | 50530K3NN00 | - |
| 7 | BOLT, SIDE STAND PIVOT | 90108KZL860 |
|
| 8 | BOLT SPECIAL,6X16 | 90147KVB900 |
|
| 9 | NUT SIDE STAND | 90203KVB900 |
|
| 10 | SPRING MAIN STAND | 9501471702 |
|
| 11 | SPRING A SIDE STAND | 9501472102 |
|
| 12 | BOLT FLANGE 8X20 | 957010802000 |
|
