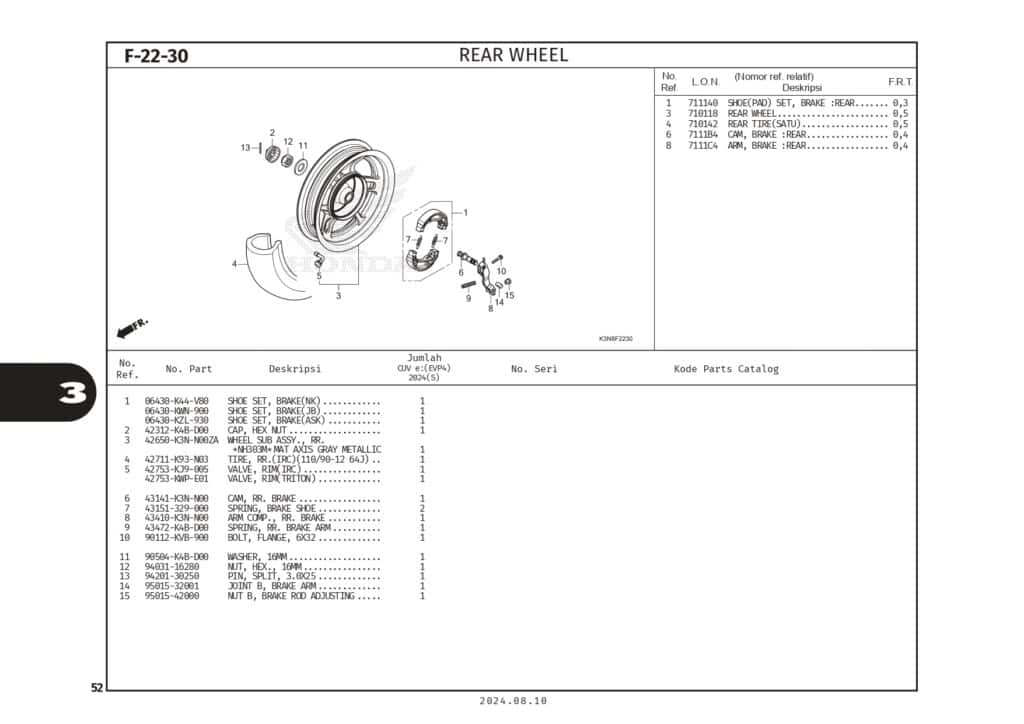

F-22-30 Rear Wheel – Katalog Suku Cadang Honda CUV e:

#	Informasi Produk	Visual
1	SHOE SET,BRAKE Part Number : `06430K44V80`
1	SHOE SET,BRAKE Part Number : `06430KWN900`
1	SHOE SET BRAKE Part Number : `06430KZL930`
2	CAP,HEX NUT Part Number : `42312K4BD00`
3	WHEEL SUB ASSY,REAR Part Number : `42650K3NN00ZA`
4	TIRE RR TL (110/90-12) Part Number : `42711K93N03`
5	VALVE RIM Part Number : `42753KJ9005`
5	VALVE RIM(TRITON) Part Number : `42753KWPE01`
6	CAM,REAR BRAKE Part Number : `43141K3NN00`
7	SPRING,BRAKE SHOEREAR Part Number : `43151329000`
8	ARM COMP,REAR BRAKE Part Number : `43410K3NN00`
9	SPRING,REAR BRAKE ARM Part Number : `43472K4BD00`
10	BOLT FLANGE 6X32 Part Number : `90112KVB900`
11	WASHER,16MM Part Number : `90504K4BD00`
12	NUT,HEX.,16MM Part Number : `9403116280`
13	PIN,SPLIT 30X25 Part Number : `9420130250`
14	JOINT BRAKE ARM Part Number : `9501532001`
15	NUT ADJUST Part Number : `9501542000`
