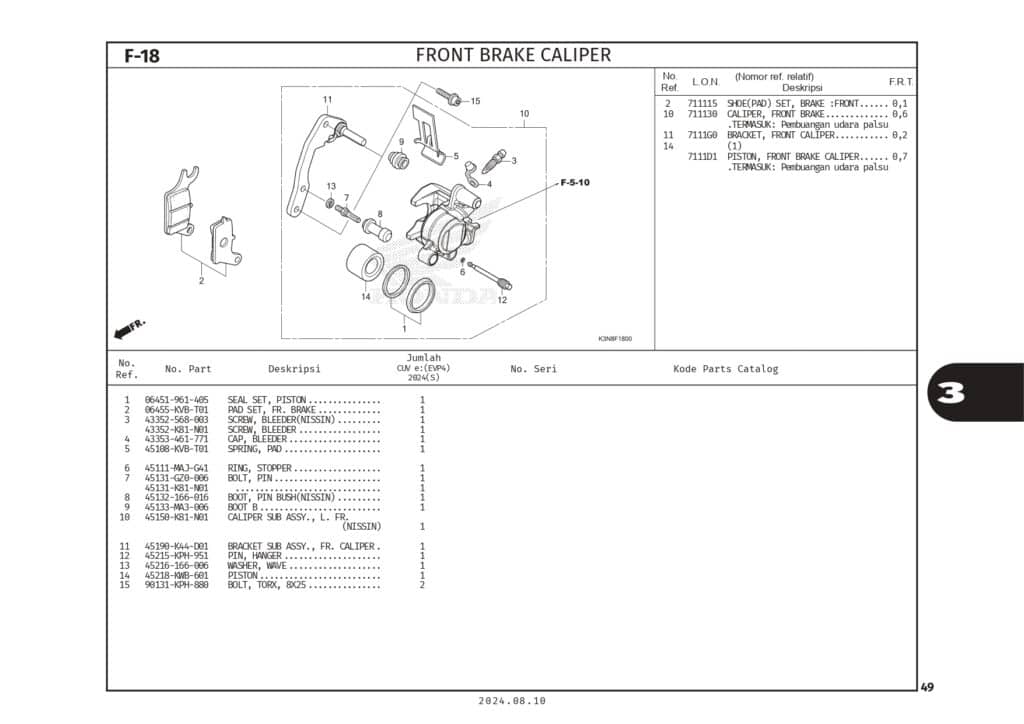

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SEAL SET PISTON | 06451961405 |
|
| 2 | PAD SET FR | 06455KVBT01 |
|
| 3 | SCREW,BLEEDER | 43352568003 |
|
| 3 | SCREW BLEEDER | 43352K81N01 |
|
| 4 | CAP,BLEEDER | 43353461771 |
|
| 5 | SPRING PAD | 45108KVBT01 |
|
| 6 | O-RING,2.5X1.5 | 45111MAJG41 |
|
| 7 | 45131GZ0007 | 45131GZ0006 |
|
| 7 | PIN BOLT | 45131K81N01 |
|
| 8 | BUSH PIN | 45132166016 |
|
| 9 | BOOT B,PIN | 45133MA3006 |
|
| 10 | CALIPER SUB ASSY,L FR | 45150K81N01 |
|
| 11 | BRKT SUB ASSY,FR CALIPER | 45190K44D01 |
|
| 12 | PIN HANGER | 45215KPH951 |
|
| 13 | WASHER,WAVE | 45216166006 |
|
| 14 | PISTON | 45218KWB601 |
|
| 15 | BOLT TORX 8X25 | 90131KPH880 |
|
