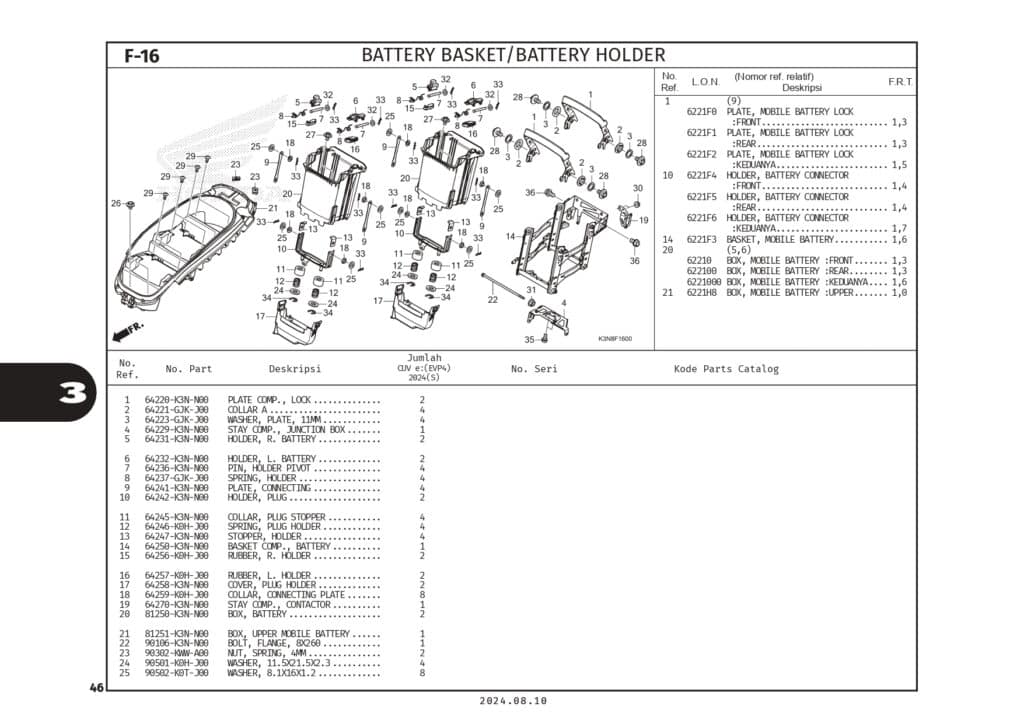

F-16 Battery Basket Battery Holder – Katalog Suku Cadang Honda CUV e:

Gambar Bagian

Section Image Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 PLATE COMP,LOCK 64220K3NN00 -
2 COLLAR,A 64221GJKJ00 -
3 PLATE,WASHER 11MM 64223GJKJ00 -
4 STAY COMP,JUNCTION BOX 64229K3NN00 -
5 HOLDER R,BATTERY 64231K3NN00 -
6 HOLDER L,BATTERY 64232K3NN00 -
7 PIN,HOLDER PIVOT 64236K3NN00 -
8 SPRING,HOLDER 64237GJKJ00 -
9 PLATE,CONNECTING 64241K3NN00 -
10 HOLDER,PLUG 64242K3NN00 -
11 COLLAR,PLUG STOPPER 64245K3NN00 -
12 SPRING,PLUG HOLDER 64246K0HJ00 -
13 STOPPER,HOLDER 64247K3NN00 -
14 BASKET COMP,BATTERY 64250K3NN00 -
15 HOLDER R,BATTERY 64256K0HJ00 -
16 HOLDER L,BATTERY 64257K0HJ00 -
17 COVER,PLUG HOLDER 64258K3NN00 -
18 COLLAR,CONNECTING PLATE 64259K0HJ00 -
19 STAY COMP,CONTACTOR 64270K3NN00 -
20 BOX,BATTERY 81250K3NN00 -
21 BOX,UPPER MOBILE BATTERY 81251K3NN00 -
22 BOLT,FLANGE 8X260 90106K3NN00 -
23 NUT SPRING 4MM 90302KWWA00 NUT SPRING 4MM
24 WASHER,11.5X21.5X2.3 90501K0HJ00 -
25 WASHER,8.1X16X1.2 90502K0TJ00 -
26 BOLT WASHER 6X12 934040601207 BOLT WASHER 6X12
27 BOLT-WASH,6X12 934040601208 BOLT-WASH,6X12
28 BOLT WASH 8X16 934040801608 BOLT WASH 8X16
29 SCREW, TAPPING, 5X12 9390335280 SCREW, TAPPING, 5X12
30 NUT,FLANGE 6MM 9405006080 NUT,FLANGE 6MM
31 NUT FLANGE 8MM 9405008000 NUT FLANGE 8MM
32 WASHER PLAIN 6MM 9410106000 WASHER PLAIN 6MM
33 PIN,LOCK 9425106000 -
34 E RING 9 9454009018 -
35 BOLT FLANGE 6X12 957010601208 BOLT FLANGE 6X12
36 BOLT,FLANGE 8X14 957010801400 BOLT,FLANGE 8X14
