F-13 Inner Cover – Katalog Suku Cadang Honda CUV e:

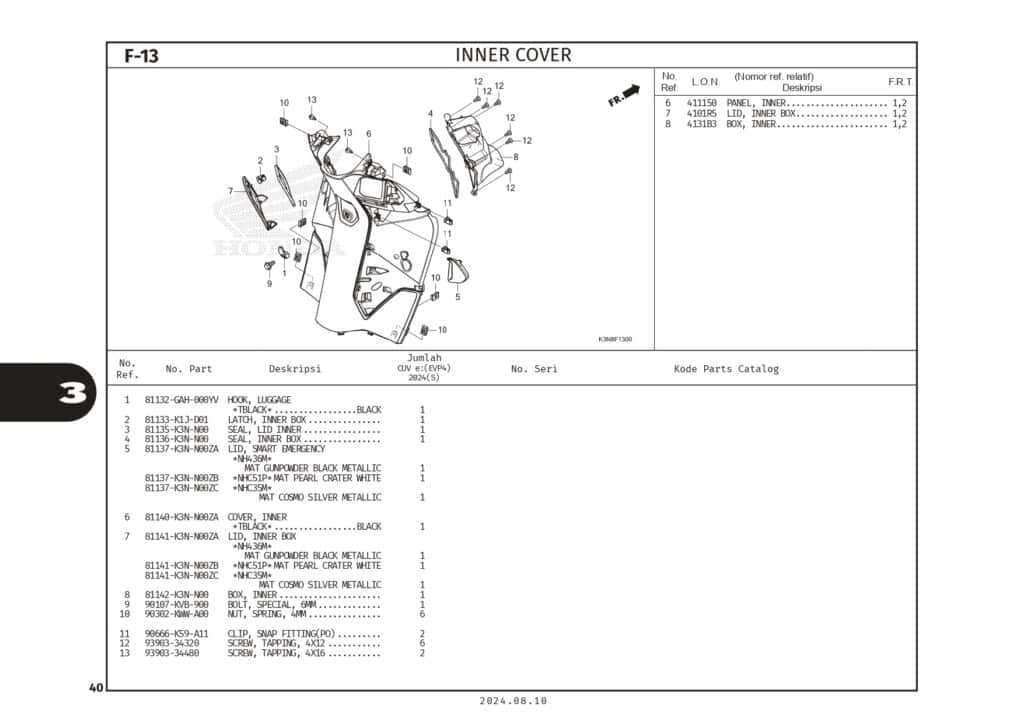

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 HOOK LUGGAGE 81132GAH000YV HOOK LUGGAGE
2 LATCH,INNER BOX 81133K1JD01 -
3 SEAL,LID INNER 81135K3NN00 -
4 SEAL,BOX INNER 81136K3NN00 -
5 LID,SMART EMG,NH-436M 81137K3NN00ZA -
5 LID,SMART EMG,NH-C51P 81137K3NN00ZB -
5 LID,SMART EMG,NH-C35M 81137K3NN00ZC -
6 COVER,INNER 81140K3NN00ZA -
7 LID,INNER BOX,NH-436M 81141K3NN00ZA -
7 LID,INNER BOX,NH-C51P 81141K3NN00ZB -
7 LID,INNER BOX,NH-C35M 81141K3NN00ZC -
8 BOX,INNER 81142K3NN00 -
9 BOLT SPECIAL 6MM 90107KVB900 BOLT SPECIAL 6MM
10 NUT SPRING 4MM 90302KWWA00 NUT SPRING 4MM
11 CLIP SNAP FIT(PO) 90666K59A11 CLIP SNAP FIT(PO)
12 SCREW TAPPING 4X12 9390334320 SCREW TAPPING 4X12
13 SCREW TAPPING 4X16 9390334480 SCREW TAPPING 4X16
