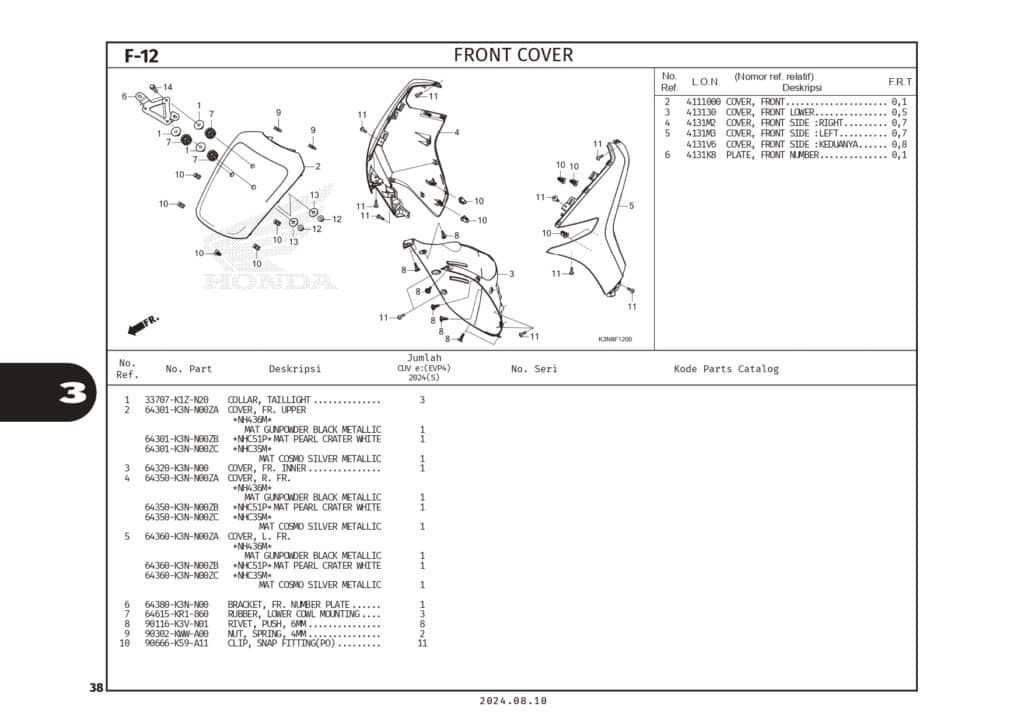

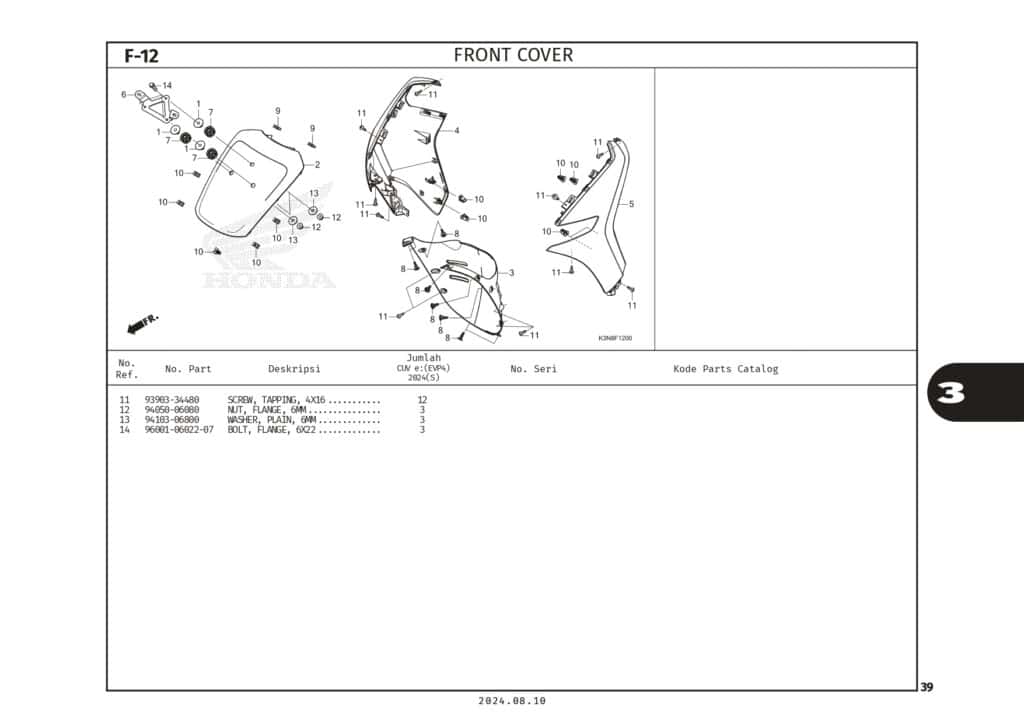

F-12 Front Cover – Katalog Suku Cadang Honda CUV e:

Gambar Bagian

Section Image Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 COLLER,TAIL LIGHT 33707K1ZN20 COLLER,TAIL LIGHT
2 COVER,FR UPPER,NH-436M 64301K3NN00ZA -
2 COVER,FR UPPER,NH-C51P 64301K3NN00ZB -
2 COVER,FR UPPER,NH-C35M 64301K3NN00ZC -
3 COVER,FRONT INNER 64320K3NN00 -
4 COVER,R FR,NH-436M 64350K3NN00ZA -
4 COVER,R FR,NH-C51P 64350K3NN00ZB -
4 COVER,R FR,NH-C35M 64350K3NN00ZC -
5 64360K3NN00ZA 64360K3NN00ZA -
5 COVER,L FR,NH-C51P 64360K3NN00ZB -
5 COVER,L FR,NH-C35M 64360K3NN00ZC -
6 BRACKET,FRNUMBER PLATE 64380K3NN00 -
7 RUBBER, LOWER COWL MOUNT 64615KR1860 RUBBER, LOWER COWL MOUNT
8 RIVET,PUSH 6MM 90116K3VN01 RIVET,PUSH 6MM
9 NUT SPRING 4MM 90302KWWA00 NUT SPRING 4MM
10 CLIP SNAP FIT(PO) 90666K59A11 CLIP SNAP FIT(PO)
11 SCREW TAPPING 4X16 9390334480 SCREW TAPPING 4X16
12 NUT,FLANGE 6MM 9405006080 NUT,FLANGE 6MM
13 WASHER, PLAIN, 6MM 9410306800 WASHER, PLAIN, 6MM
14 BOLT FLANGE 6X22 960010602207 BOLT FLANGE 6X22
