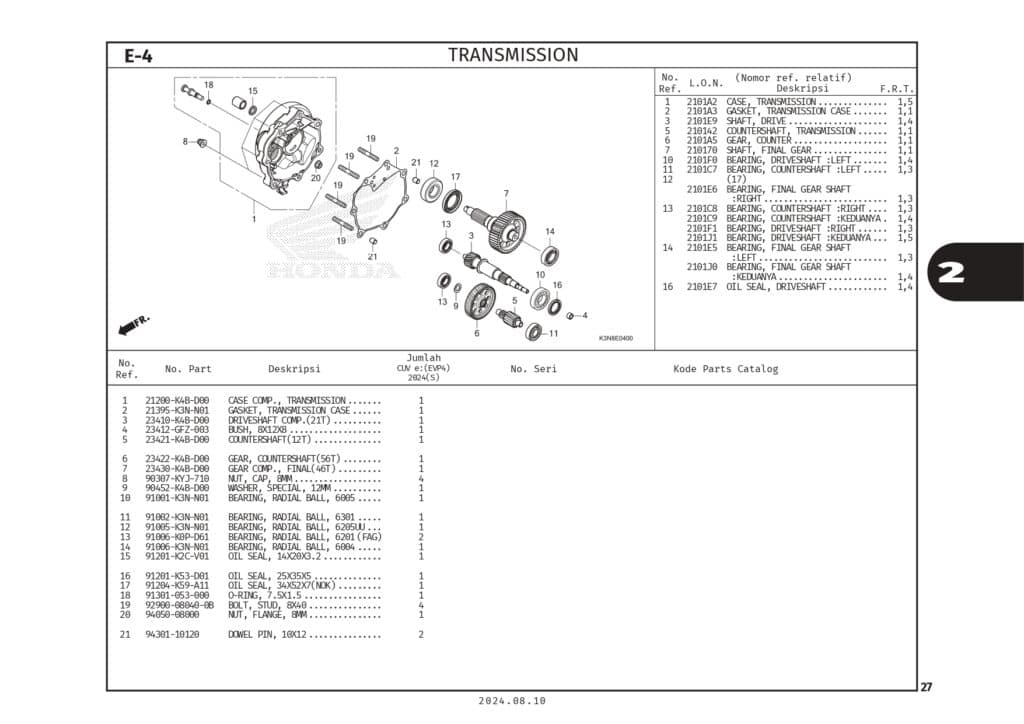

E-4 Transmission – Katalog Suku Cadang Honda CUV e:

#	Informasi Produk	Visual
1	CASE COMP,MISSION Part Number : `21200K4BD00`
2	GASKET,MISSION CASE Part Number : `21395K3NN01`
3	SHAFT COMP,DRIVE Part Number : `23410K4BD00`
4	BUSH,8X12X8 Part Number : `23412GFZ003`
5	SHAFT,COUNTER Part Number : `23421K4BD00`
6	GEAR,COUNTER Part Number : `23422K4BD00`
7	GEAR COMP,FINAL Part Number : `23430K4BD00`
8	NUT,CAP 8MM Part Number : `90307KYJ710`
9	WASHER,SPL 12MM Part Number : `90452K4BD00`
10	BRG,BALL RADIAL 6005 Part Number : `91001K3NN01`
11	BRG,BALL RADIAL 6301 Part Number : `91002K3NN01`
12	BRG,BALL RADIAL 6205UU Part Number : `91005K3NN01`
13	BRG,BALL RADIAL 6201 FAG) Part Number : `91006K0PD61`
14	BRG,BALL RADIAL 6004 Part Number : `91006K3NN01`
15	OIL SEAL,14X20X3.2 Part Number : `91201K2CV01`
16	OIL SEAL 25X35X5 Part Number : `91201K53D01`
17	OIL SEAL, 34X52X7 Part Number : `91204K59A11`
18	O RING 7.5X1.5 Part Number : `91301053000`
19	BOLT, STUD 2, 8X40 Part Number : `92900080400B`
20	NUT FLANGE 8MM Part Number : `9405008000`
21	PIN DOWEL 10X12 Part Number : `9430110120`
