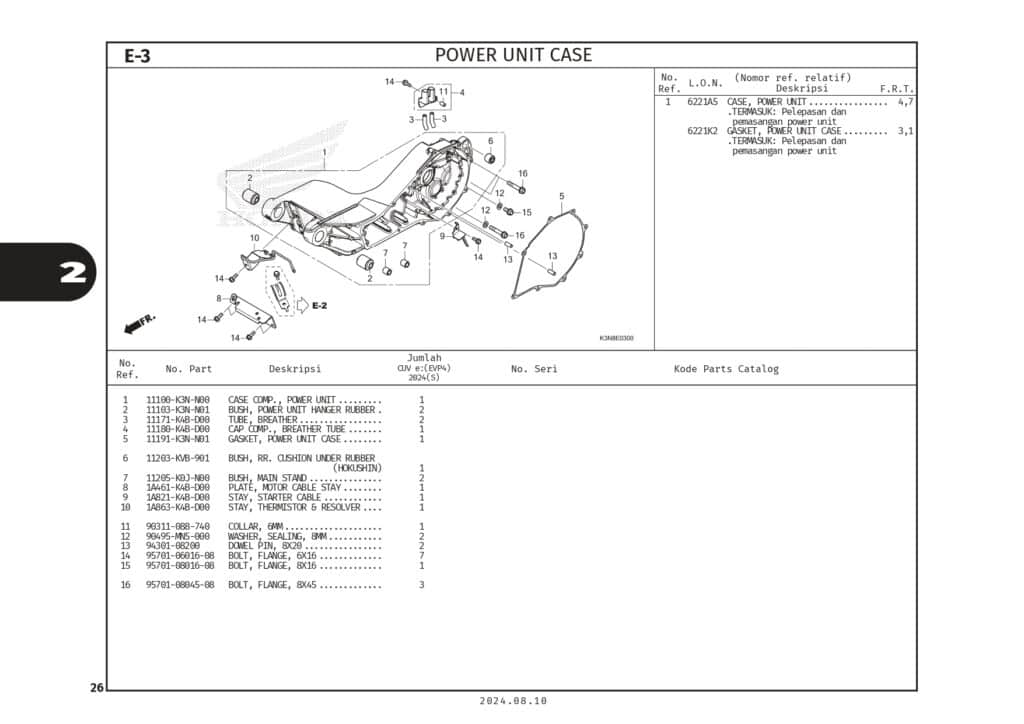

E-3 Power Unit Case – Katalog Suku Cadang Honda CUV e:

#	Informasi Produk	Visual
1	CASE COMP,POWER UNIT Part Number : `11100K3NN00`
2	RUBBER BUSH,PU HANGER Part Number : `11103K3NN01`
3	TUBE,BREATHER Part Number : `11171K4BD00`
4	CAP COMP,BREATHER TUBE Part Number : `11180K4BD00`
5	GASKET,POWER UNIT CASE Part Number : `11191K3NN01`
6	UNDER RUBBER BUSH REAR Part Number : `11203KVB901`
7	BUSH,M STAND Part Number : `11205K0JN00`
8	PLATE,MOTOR CABLE STAY Part Number : `1A461K4BD00`
9	STAY,MOTOR CABLE Part Number : `1A821K4BD00`
10	CODE STAY,THERMISTOR AND RESOL Part Number : `1A863K4BD00`
11	COLLAR 6MM Part Number : `90311088740`
12	WASHER,SEALING 8MM Part Number : `90495MN5000`
13	DOWEL PIN, 8X20 Part Number : `9430108200`
14	BOLT,FLANGE 6X16 Part Number : `957010601608`
15	BOLT FLANGE 8X16 Part Number : `957010801608`
16	BOLT,FLANGE 8X45 Part Number : `957010804508`
