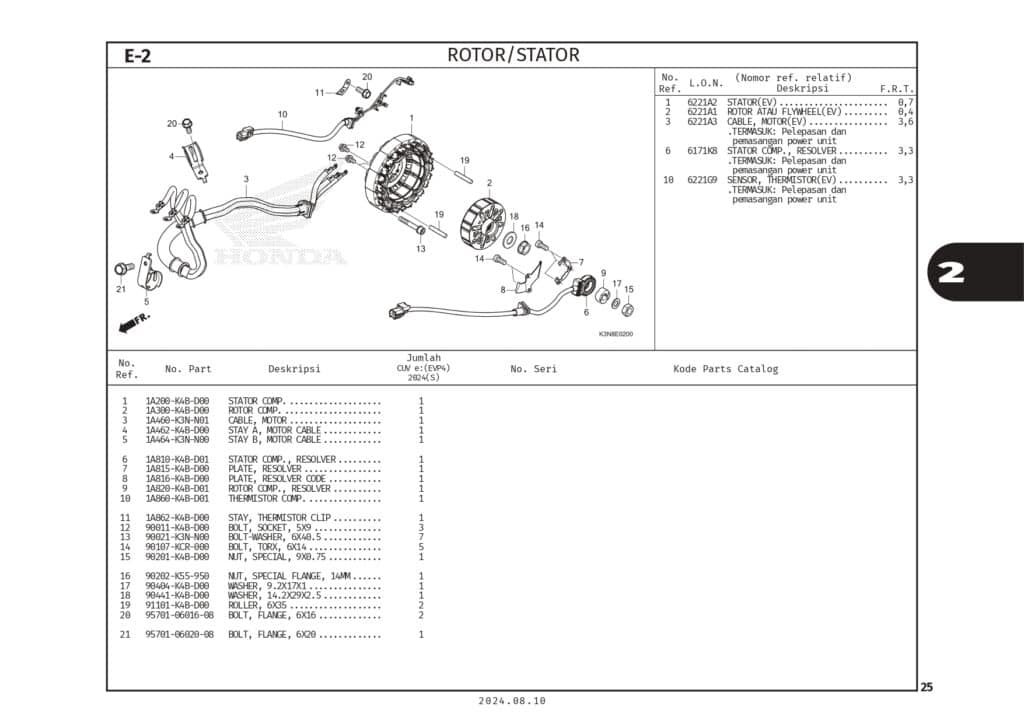

E-2 Rotor Stator – Katalog Suku Cadang Honda CUV e:
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
STATOR COMP |
1A200K4BD00 |
-
|
| 2 |
ROTOR COMP |
1A300K4BD00 |
-
|
| 3 |
CABLE,MOTOR |
1A460K3NN01 |
-
|
| 4 |
STAY A,MOTOR CABLE |
1A462K4BD00 |
-
|
| 5 |
STAY B,MOTOR CABLE |
1A464K3NN00 |
-
|
| 6 |
STATOR COMP,RESOLVER |
1A810K4BD01 |
-
|
| 7 |
PLATE,RESOLVER |
1A815K4BD00 |
-
|
| 8 |
PLATE,RESOLVER CODE |
1A816K4BD00 |
-
|
| 9 |
ROTOR COMP,RESOLVER |
1A820K4BD01 |
-
|
| 10 |
THERMISTOR COMP |
1A860K4BD01 |
-
|
| 11 |
STAY THRMISTOR CLIP |
1A862K4BD00 |
-
|
| 12 |
BOLT,SOCKET 5X9 |
90011K4BD00 |
-
|
| 13 |
BOLT-WASH,6X40.5 |
90021K3NN00 |
-
|
| 14 |
BOLT,TORX,6X14 |
90107KCR000 |
-
|
| 15 |
NUT,SPL M9X0.75 |
90201K4BD00 |
-
|
| 16 |
NUT,SPL FLANGE 14MM |
90202K55950 |
-
|
| 17 |
WASHER,9.2X17X1 |
90404K4BD00 |
-
|
| 18 |
WASHER,14.2X29X2.5 |
90441K4BD00 |
-
|
| 19 |
ROLLER,6X35 |
91101K4BD00 |
-
|
| 20 |
BOLT,FLANGE 6X16 |
957010601608 |
|
| 21 |
BOLT FLANGE 6X20 |
957010602008 |
|
