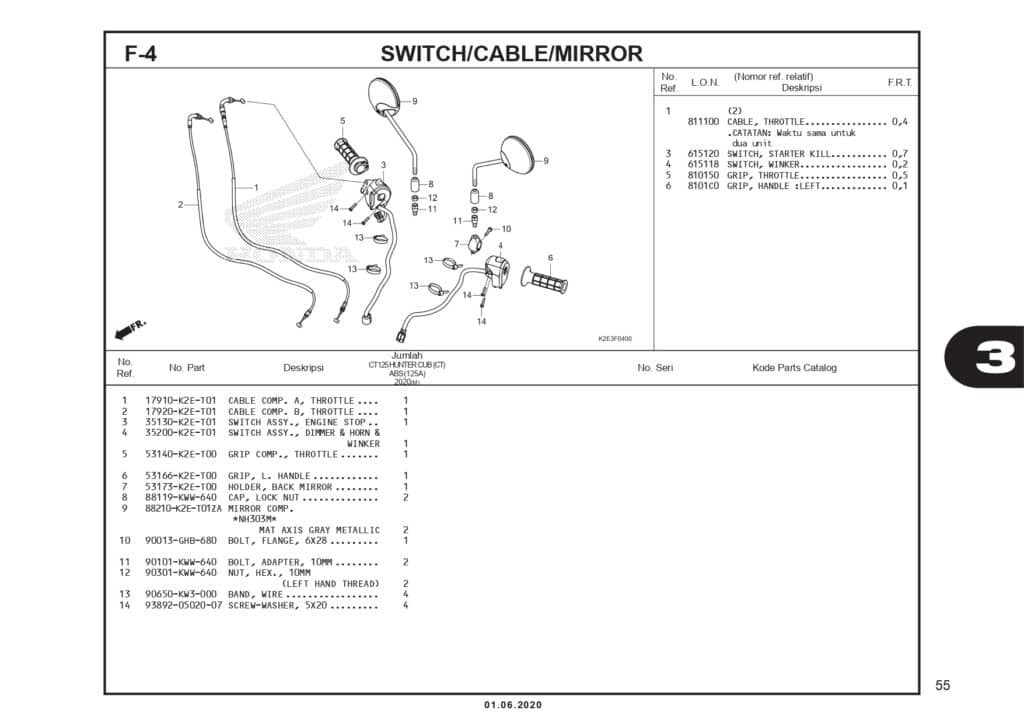

F-4 Switch Cable Mirror – Katalog Suku Cadang Honda CT 125 Hunter Cub
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
CABLE COMP A THROT |
17910K2ET01 |
-
|
| 2 |
CABLE COMP B THROT |
17920K2ET01 |
-
|
| 3 |
SW ASSY ENG STOP SWITCH |
35130K2ET01 |
-
|
| 4 |
SW ASSY DIM HORN |
35200K2ET01 |
-
|
| 5 |
GRIP COMP THROT |
53140K2ET00 |
-
|
| 6 |
GRIP L HANDLE |
53166K2ET00 |
-
|
| 7 |
HOLDER BACK MIRROR |
53173K2ET00 |
-
|
| 8 |
CAP LOCK NUT |
88119KWW640 |
|
| 9 |
MIRROR COMP |
88210K2ET01ZA |
-
|
| 10 |
BOLT FLANGE SH 6X |
90013GHB680 |
-
|
| 11 |
BOLT ADPT 10MM |
90101KWW640 |
|
| 12 |
NUT HEX 10MM |
90301KWW640 |
|
| 13 |
BAND, WIRE |
90650KW3000 |
-
|
| 14 |
SCREW,WASHER 5X20 |
938920502007 |
|
