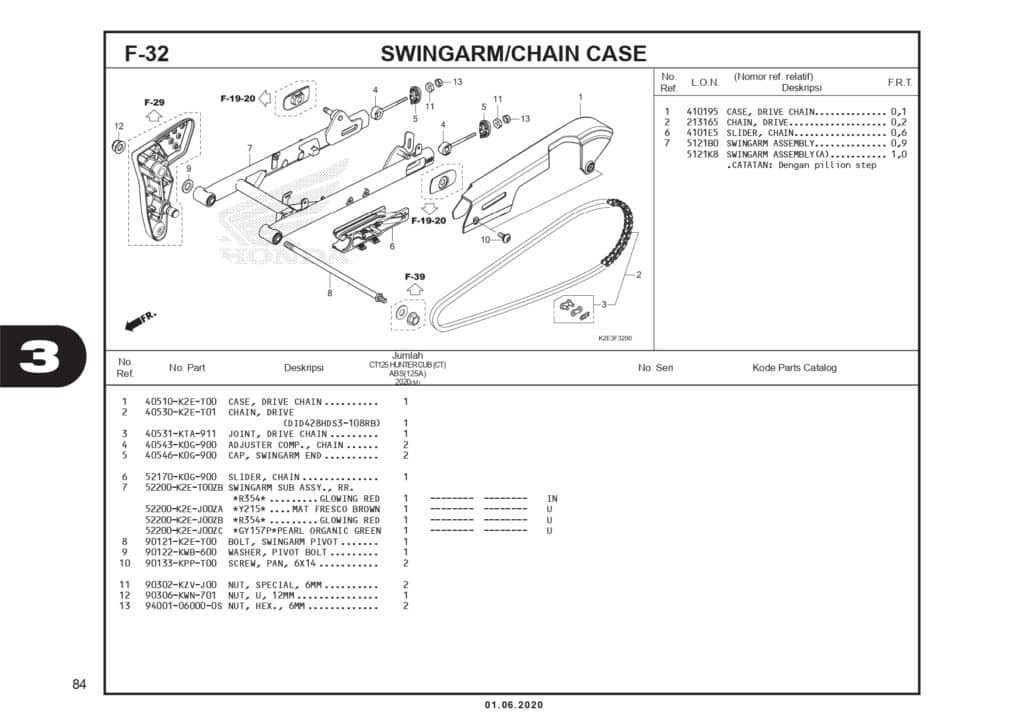

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CASE DRIVE CHAIN | 40510K2ET00 | - |
| 2 | CHAIN,DRIVE DID428HDS3-108RB | 40530K2ET01 | - |
| 3 | JOINT RJ DRIVE CHK428SH-60RJ | 40531KTA911 | - |
| 4 | ADJUSTER CHAIN MZ-98RJ | 40543K0G900 | - |
| 5 | CAP SWINGARM END | 40546K0G900 | - |
| 6 | SLIDER CHAIN | 52170K0G900 | - |
| 7 | SWINGARM SUB ASSY | 52200K2ET00ZB | - |
| 7 | 52200K2EJ00ZA | 52200K2EJ00ZA | - |
| 7 | 52200K2EJ00ZB | 52200K2EJ00ZB | - |
| 7 | 52200K2EJ00ZC | 52200K2EJ00ZC | - |
| 8 | BOLT SWINGARM PIV PIVOT | 90121K2ET00 | - |
| 9 | WASHER PIVOT BOLT | 90122KWB600 |
|
| 10 | SCREW,PAN 6X14 | 90133KPPT00 | - |
| 11 | NUT SPECIAL 6MM | 90302KZVJ00 | - |
| 12 | NUT U 12MM | 90306KWN701 | - |
| 13 | NUT HEX 6MM | 94001060000S |
|
