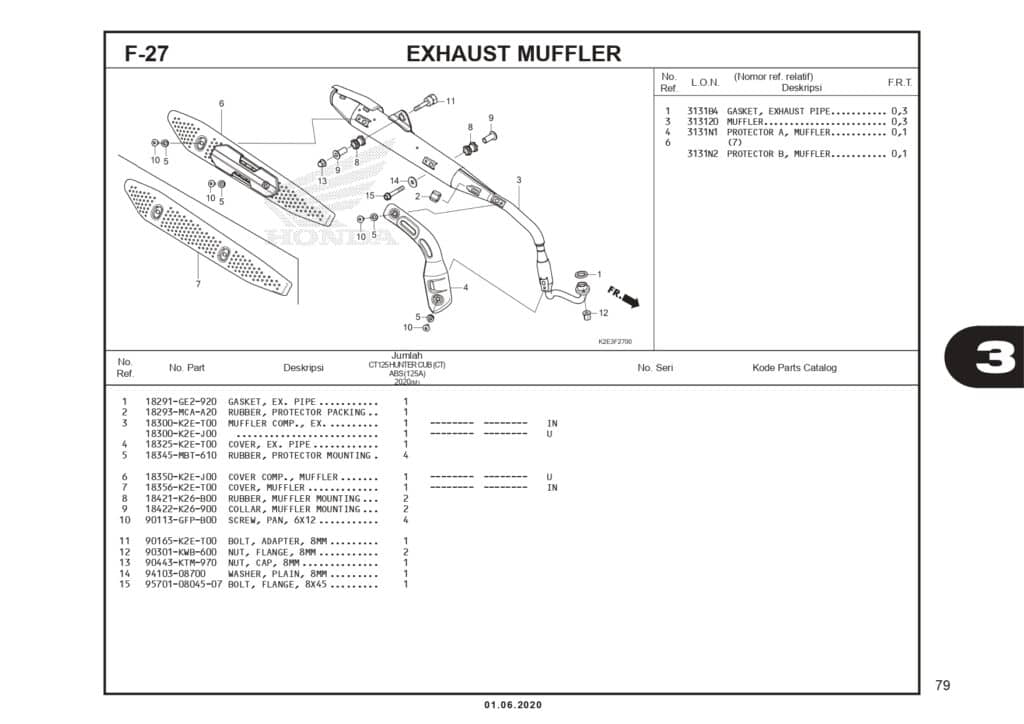

F-27 Exhaust Muffler – Katalog Suku Cadang Honda CT 125 Hunter Cub
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
GASKET EXH PIPE |
18291GE2920 |
|
| 2 |
RUBBER PROTECTOR PACK |
18293MCAA20 |
|
| 3 |
MUFFLER COMP EXH |
18300K2ET00 |
-
|
| 3 |
18300K2EJ00 |
18300K2EJ00 |
-
|
| 4 |
COVER EXH PIPE |
18325K2ET00 |
-
|
| 5 |
RUBBER PROTECTOR MOUNT |
18345MBT610 |
|
| 6 |
18350K2EJ00 |
18350K2EJ00 |
-
|
| 7 |
COVER MUFFLER |
18356K2ET00 |
-
|
| 8 |
RUBBER, MUFFLER MOUNTING |
18421K26B00 |
-
|
| 9 |
COLLAR, MUFFLER MOUNTING |
18422K26900 |
-
|
| 10 |
SCREW, PAN, 6X12 |
90113GFPB00 |
-
|
| 11 |
BOLT ADPT 8MM |
90165K2ET00 |
-
|
| 12 |
NUT FLANGE 8MM |
90301KWB600 |
|
| 13 |
NUT CAP,8MM |
90443KTM970 |
|
| 14 |
WASHER, PLAIN, 8MM |
9410308700 |
|
| 15 |
BOLT, FLANGE .8X45 |
957010804507 |
-
|
