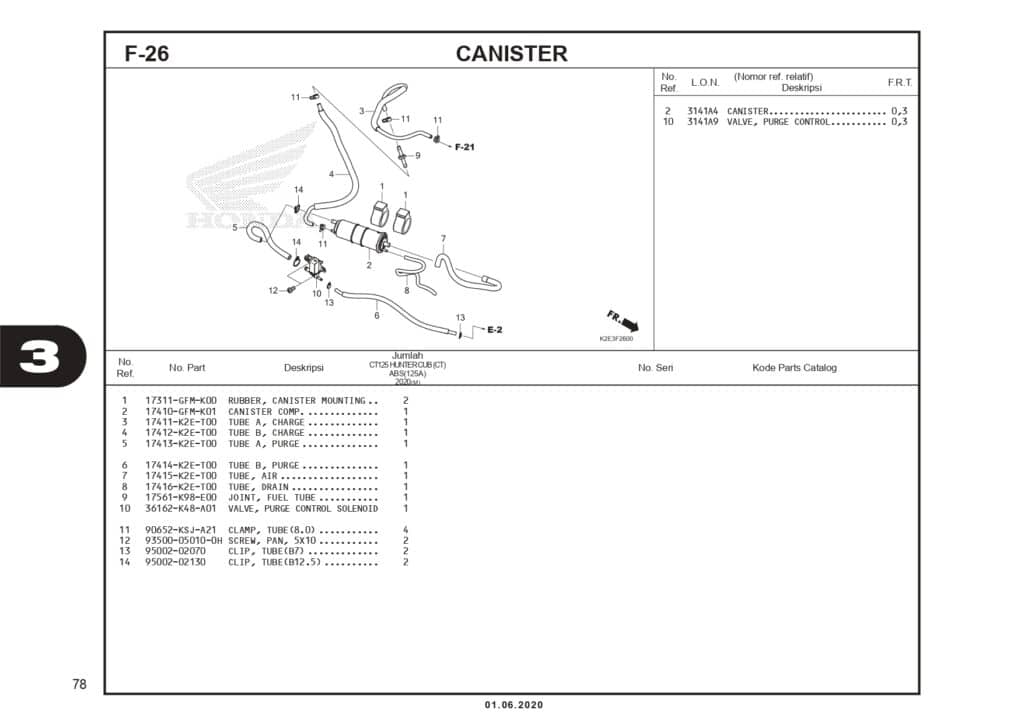

F-26 Canister – Katalog Suku Cadang Honda CT 125 Hunter Cub
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
RUBBER CANISTER M |
17311GFMK00 |
-
|
| 2 |
CANISTER COMP |
17410GFMK01 |
-
|
| 3 |
TUBE A CHARGE |
17411K2ET00 |
-
|
| 4 |
TUBE B CHARGE |
17412K2ET00 |
-
|
| 5 |
TUBE A PURGE |
17413K2ET00 |
-
|
| 6 |
TUBE B PURGE |
17414K2ET00 |
-
|
| 7 |
TUBE AIR |
17415K2ET00 |
-
|
| 8 |
TUBE DRAIN |
17416K2ET00 |
-
|
| 9 |
JOINT FUEL TUBE |
17561K98E00 |
-
|
| 10 |
SOL VLV PURGE |
36162K48A01 |
-
|
| 11 |
CLAMP TUBE(8.0) |
90652KSJA21 |
-
|
| 12 |
SCREW,CROSS 5X10 |
93500050100H |
-
|
| 13 |
9500202071 |
9500202070 |
|
| 14 |
CLIP, TUBE(B12.5) |
9500202130 |
|
