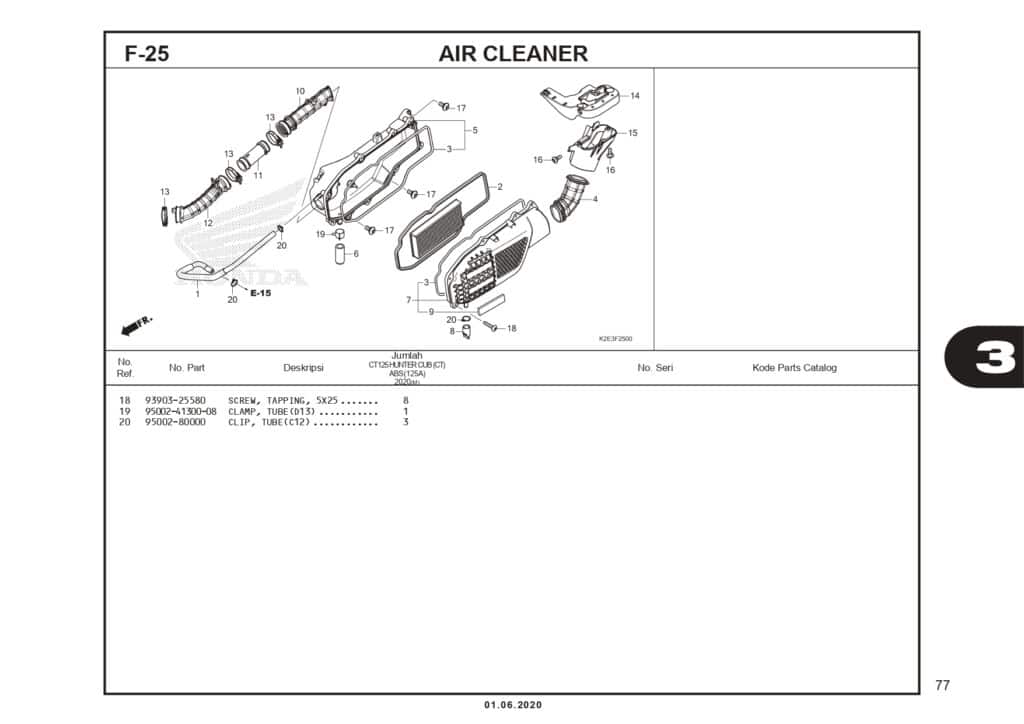

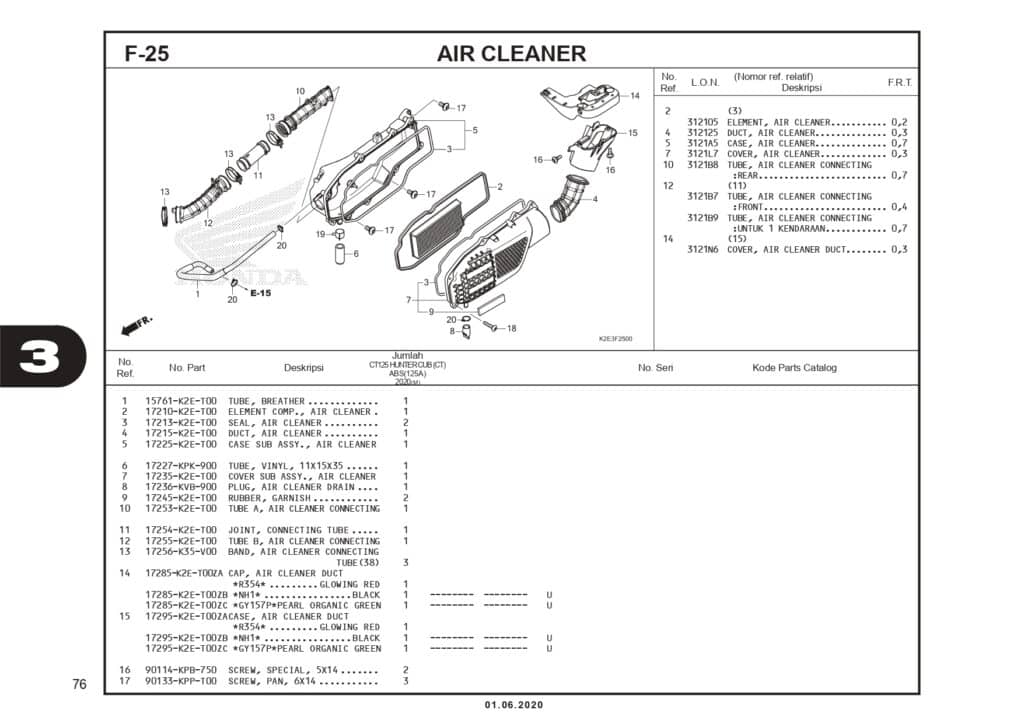

F-25 Air Cleaner – Katalog Suku Cadang Honda CT 125 Hunter Cub

Gambar Bagian

Section Image Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 TUBE BREATHER 15761K2ET00 -
2 ELEMENT COMP AIR 17210K2ET00 -
3 SEAL AIR/C 17213K2ET00 -
4 DUCT AIR/C 17215K2ET00 -
5 CASE SUB ASSY AIR 17225K2ET00 -
6 V.TUBE 11X15X35 17227KPK900 V.TUBE 11X15X35
7 COVER SUB ASSY AIR/C 17235K2ET00 -
8 PLUG A/C DRAIN 17236KVB900 PLUG A/C DRAIN
9 RUBBER GARNISH 17245K2ET00 -
10 TUBE A AIR/C CONN 17253K2ET00 -
11 JOINT CONN TUBE 17254K2ET00 -
12 TUBE B AIR/C 17255K2ET00 -
13 BAND AIR CLEANER CONNECT 17256K35V00 -
14 CAP AIR/C DUCT 17285K2ET00ZA -
14 17285K2ET00 17285K2ET00 -
14 17285K2ET00ZC 17285K2ET00ZC -
15 17295K2ET00ZACASE 17295K2ET00ZACASE -
15 17295K2ET00ZB 17295K2ET00ZB -
15 17295K2ET00ZC 17295K2ET00ZC -
16 SCREW SPECIAL 5X14 90114KPB750 -
17 SCREW,PAN 6X14 90133KPPT00 -
18 SCREW, TAPPING 5X25 9390325580 SCREW, TAPPING 5X25
19 CLAMP D 13.0 TUBE 950024130008 CLAMP D 13.0 TUBE
20 CLIP, TUBE(C12) 9500280000 CLIP, TUBE(C12)
