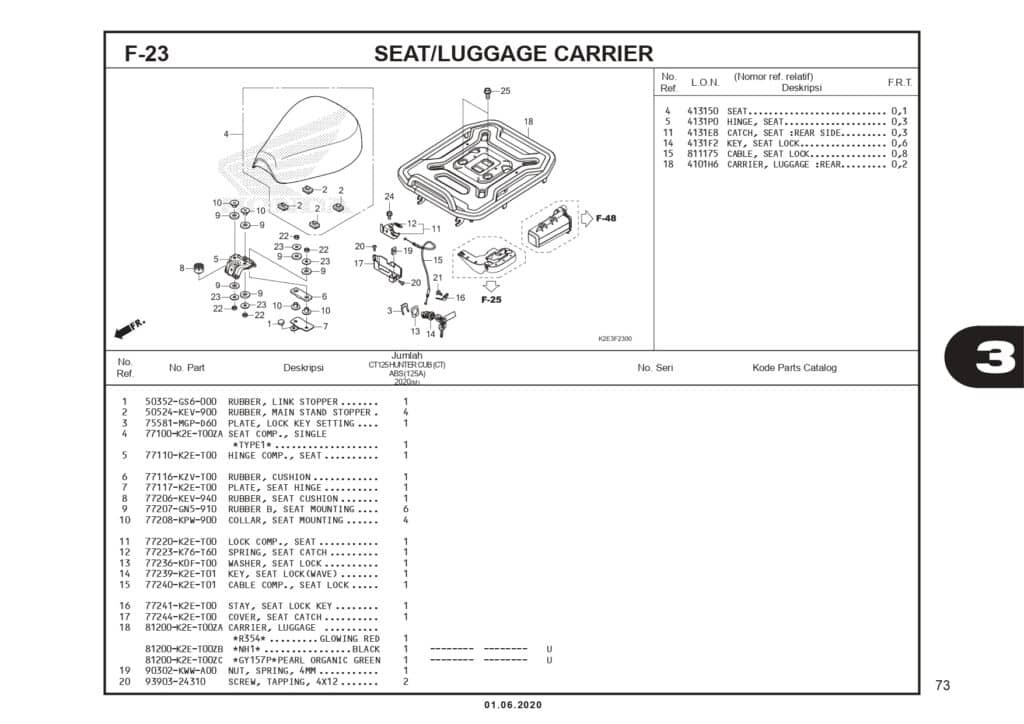

F-23 Seat Luggage Carrier – Katalog Suku Cadang Honda CT 125 Hunter Cub

#	Informasi Produk	Visual
1	RUBBER LINK STOPPER Part Number : `50352GS6000`
2	RUBBER MAIN STAND STOPPER Part Number : `50524KEV900`
3	PLATE, LOCK KEY SETTING Part Number : `75581MGPD60`
4	SEAT COMP SINGLE Part Number : `77100K2ET00ZA`
5	HINGE COMP SEAT Part Number : `77110K2ET00`
6	RUBBER CUSHION Part Number : `77116KZVT00`
7	HOOK HELMET Part Number : `77117K2ET00`
8	RUBBER, SEAT CUSHION Part Number : `77206KEV940`
9	RUBBER SEAT Part Number : `77207GN5910`
10	COLLAR SEAT MOUNT Part Number : `77208KPW900`
11	SEAT LOCK COMP Part Number : `77220K2ET00`
12	SPRING SEAT CATCH Part Number : `77223K76T60`
13	WASHER, SEAT LOCK Part Number : `77236K0FT00`
14	KEY SEAT LOCK Part Number : `77239K2ET01`
15	CABLE COMP SEAT L Part Number : `77240K2ET01`
16	STAY KEY SEAT LOC Part Number : `77241K2ET00`
17	COVER SEAT CATCH Part Number : `77244K2ET00`
18	CARRIER LUGGAGE Part Number : `81200K2ET00ZA`
18	CARRIER LUGGAGE Part Number : `81200K2ET00ZB`
18	81200K2ET00ZC Part Number : `81200K2ET00ZC`
19	NUT SPRING 4MM Part Number : `90302KWWA00`
20	SCREW TAPPING 4X12 Part Number : `9390324310`
21	SCREW TAPPING 5X12 Part Number : `9390335210`
22	NUT HEX 6MM Part Number : `94001060000S`
23	WASHER PLAIN 6MM Part Number : `9410306000`
24	BOLT FLANGE 6X12 Part Number : `957010601208`
25	BOLT FLANGE 8X18 Part Number : `957010801801`
