F-23-10 Body Cover – Katalog Suku Cadang Honda CT 125 Hunter Cub

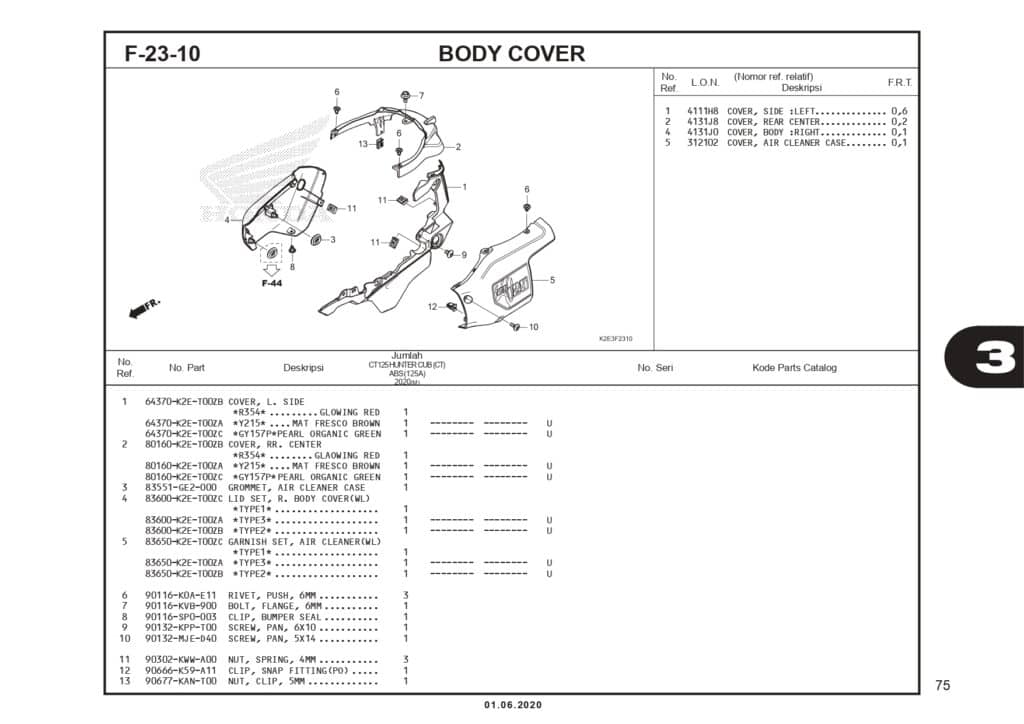

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 COVER L SIDE COWL 64370K2ET00ZB -
1 64370K2ET00ZA 64370K2ET00ZA -
1 64370K2ET00ZC 64370K2ET00ZC -
2 COVER RR CENTER 80160K2ET00ZB -
2 80160K2ET00ZA 80160K2ET00ZA -
2 80160K2ET00ZC 80160K2ET00ZC -
3 GROMMET A/C 83551GE2000 GROMMET A/C
4 SET ILLUST R LID R 83600K2ET00ZC -
4 83600K2ET00ZA 83600K2ET00ZA -
4 83600K2ET00ZB 83600K2ET00ZB -
5 SET ILLUST GRANIS 83650K2ET00ZC -
5 83650K2ET00ZA 83650K2ET00ZA -
5 83650K2ET00ZB 83650K2ET00ZB -
6 RIVET PUSH 6MM 90116K0AE11 RIVET PUSH 6MM
7 BOLT FLANGE 6MM 90116KVB900 BOLT FLANGE 6MM
8 90116K2PV61 90116SP0003 90116K2PV61
9 SCREW,PAN 6X10 90132KPPT00 SCREW,PAN 6X10
10 SCREW, PAN, 5X14 90132MJED40 SCREW, PAN, 5X14
11 NUT SPRING 4MM 90302KWWA00 NUT SPRING 4MM
12 CLIP SNAP FIT(PO) 90666K59A11 CLIP SNAP FIT(PO)
13 NUT CLIP 5MM. 90677KANT00 NUT CLIP 5MM.
