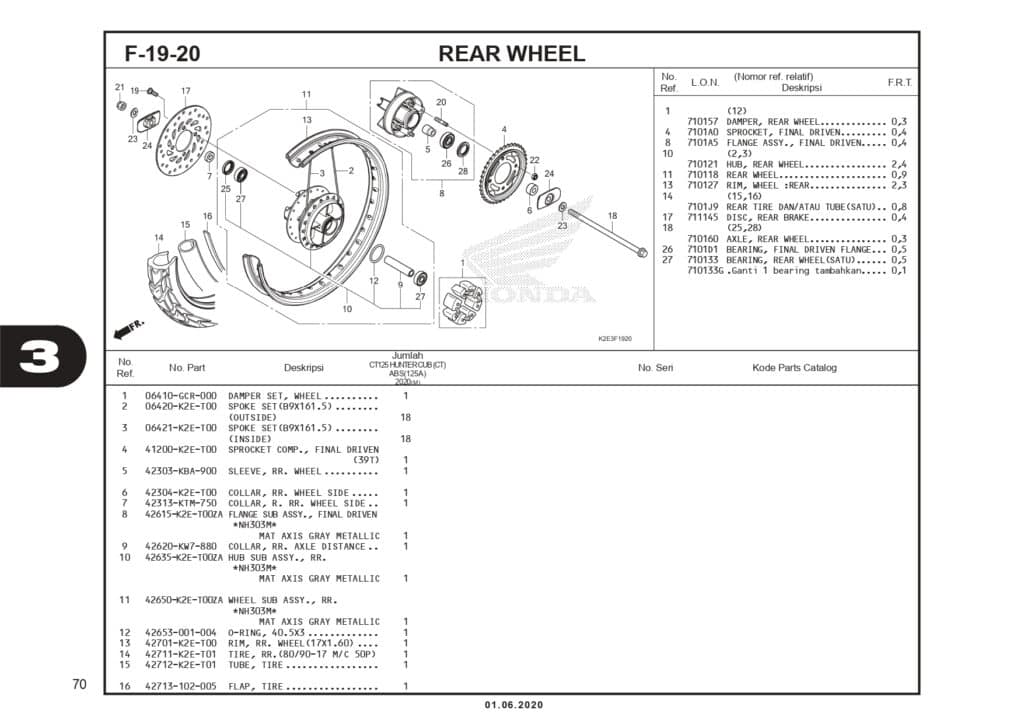

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | RUBBER DAMPER RR SET | 06410GCR000 | - |
| 2 | SPOKE SET A10X161(SERVICE) | 06420K2ET00 | - |
| 3 | SPOKE SET A10X160(SERVICE) | 06421K2ET00 | - |
| 4 | SPRKT COMP FINAL | 41200K2ET00 | - |
| 5 | SLEEVE RR.WHL. | 42303KBA900 | - |
| 6 | COLLAR RR WHEEL | 42304K2ET00 | - |
| 7 | COLLAR R RR WHEEL SIDE | 42313KTM750 |
|
| 8 | FLANGE SUB ASSY | 42615K2ET00ZA | - |
| 9 | COLLAR RR AXLE DISTANCE | 42620KW7881 |
|
| 10 | HUB SUB ASSY REAR | 42635K2ET00ZA | - |
| 11 | WHEEL SUB ASSY | 42650K2ET00ZA | - |
| 12 | O-RING 40.5X3 | 42653001004 |
|
| 13 | RIM RR WHEEL | 42701K2ET00 | - |
| 14 | TIRE,RR(IRC) | 42711K2ET01 | - |
| 15 | 42712K2ET01 | 42712K2ET01 | - |
| 16 | FLAP TIRE INOUE | 42713102005 | - |
| 17 | DISK RR BREAKE | 43351KTMN31 |
|
| 17 | DISK RR BRAKE | 43351KTMN32 |
|
| 18 | AXLE FR WHEEL | 44301K01900 | - |
| 19 | BOLT BRK DISK 8X24 | 90105KGH900 |
|
| 20 | BOLT STUD 8X19.5 | 90128KFM900 |
|
| 21 | NUT U 12MM | 90306K0G901 | - |
| 22 | NUT U, 8MM | 90309KPH971 |
|
| 23 | WASHER RR AXLE 1X45X3 | 90501K0G900 | - |
| 24 | PLATE SWINGARM SI | 90559K0G900 | - |
| 25 | OIL SEAL 26X37X6 | 90753051003 |
|
| 26 | OIL SEAL 26X37X6 | 90753051003 |
|
| 26 | BEARING, RADIAL BALL, 6203UU | 91051K35V02 |
|
| 26 | BRG BALL RADIAL 6 | 91051K35V03 |
|
| 27 | BEARING, RADIAL BALL(6301U L) | 91053K03H01 |
|
| 27 | BEARINGBALL RADIAL 6301U L | 91053K03H02 |
|
| 27 | BRG BALL RADIAL 6301U L | 91053K03N41 |
|
| 27 | BRG,BALL RDL 6301U L | 91055KVSF01 | - |
| 27 | BRG,BALL RDL 6301U L | 91055KVSF02 |
|
| 28 | DUST SEAL,27X40X4.5 | 91251KGH902 |
|
