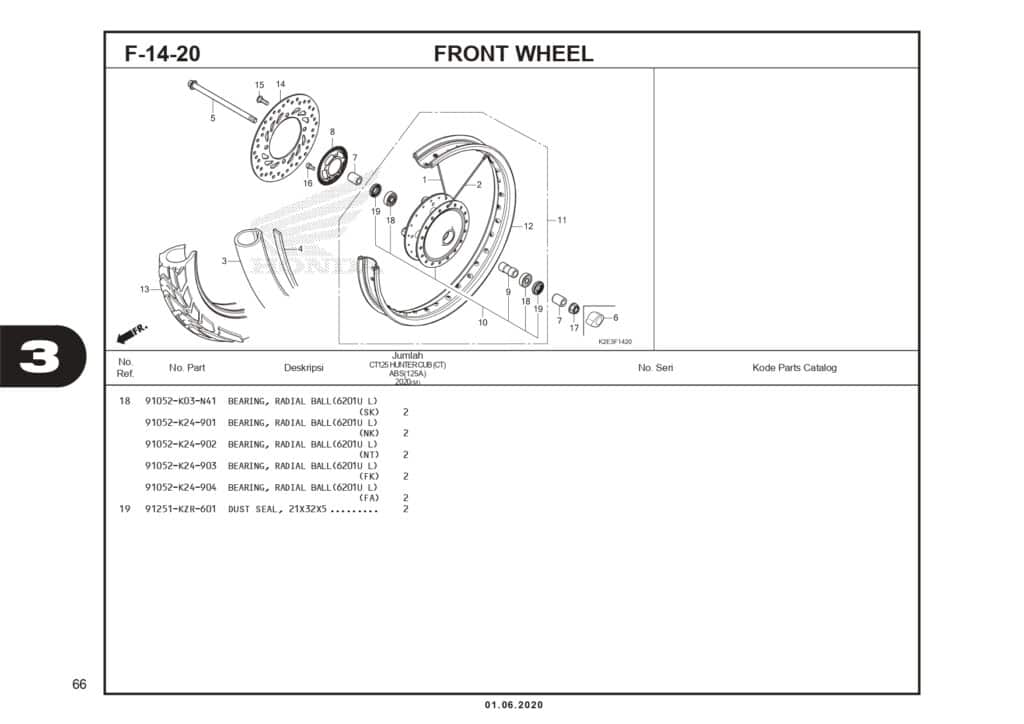

F-14-20 Front Wheel – Katalog Suku Cadang Honda CT 125 Hunter Cub

#	Informasi Produk	Visual
1	SPOKE SET A11X156 Part Number : `06440K2ET00`
2	SPOKE SET A11X156 Part Number : `06441K2ET00`
3	42712K2ET01 Part Number : `42712K2ET01`
4	FLAP TIRE INOUE Part Number : `42713102005`
5	AXLE FR WHEEL Part Number : `44301KZVL00`
6	CAP, AXLE NUT Part Number : `44302383610`
7	COLLAR FR WHEEL SD Part Number : `44311K0G900`
8	RING,FR PULSER Part Number : `44515K26C10`
9	COLLAR FR AXLE DI Part Number : `44620K0G900`
10	HUB SUB ASSY FRONT Part Number : `44635K2ET00ZA`
11	WHEEL SUB ASSY FR Part Number : `44650K2ET00ZA`
12	RIM FR WHEEL Part Number : `44701K2ET00`
13	TIRE FR(IRC) Part Number : `44711K88B02`
14	DISK,FRONT BRAKE Part Number : `45251K2ET01`
15	BOLT BRK DISK 8X24 Part Number : `90105KGH900`
16	BOLT,TORX 5X10 Part Number : `90131KPB751`
17	NUT U 12MM Part Number : `90306KWN701`
18	BRG BALL RADIAL 6201U L Part Number : `91052K03N41`
18	BRG,BALL RADIAL 6201U L Part Number : `91052K24901`
18	BRG,BALL RADIAL 6201U L Part Number : `91052K24902`
18	BRG,BALL RADIAL 6201U L Part Number : `91052K24903`
18	BEARING RADIAL BALL(6201U L) Part Number : `91052K24904`
19	DUST SEAL, 21X32X5 Part Number : `91251KZR601`
