F-11 Front Fork – Katalog Suku Cadang Honda CT 125 Hunter Cub

Gambar Bagian

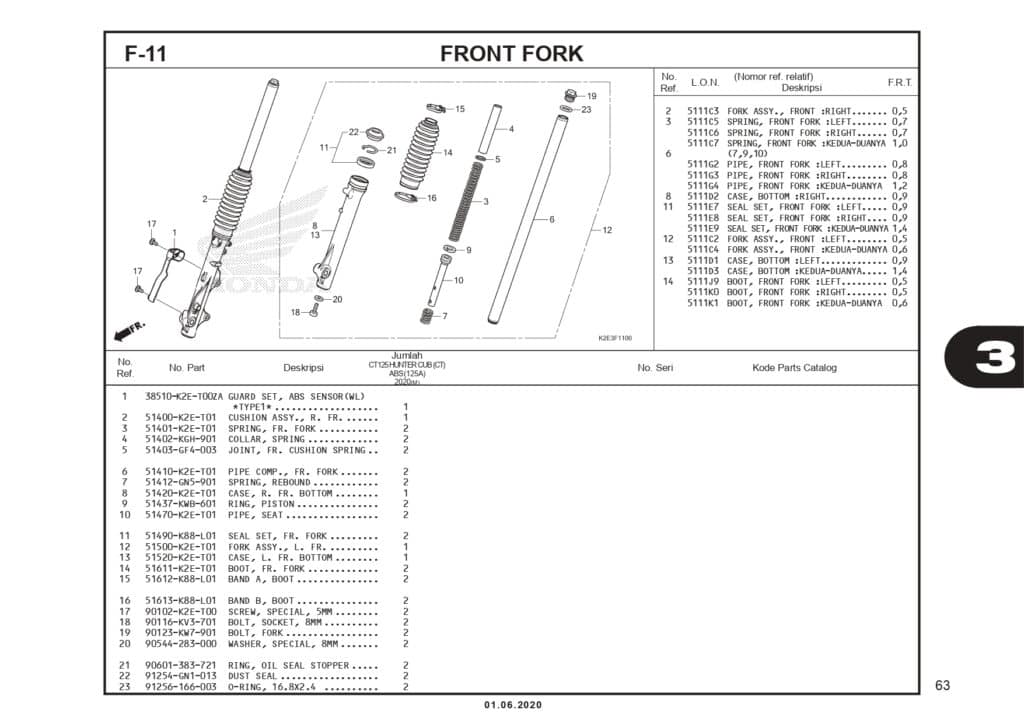

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 SET ILLUST ABS 38510K2ET00ZA -
2 FORK ASSY,R FRONT 51400K2ET01 -
3 SPRING,FR FORK 51401K2ET01 -
4 COLLAR,SPRING 51402KGH901 -
5 JNT.FR.CSHN.SPG. 51403GF4003 JNT.FR.CSHN.SPG.
6 PIPE COMP,FR FORK 51410K2ET01 -
7 SPG REBOUND 51412GN5901 SPG REBOUND
8 CASE,R FR BOTTOM 51420K2ET01 -
9 RING PISTON 51437KWB601 RING PISTON
10 PIPE,SEAT 51470K2ET01 -
11 SEAL SET FR FORK 51490K88L01 -
12 FORK ASSY,L FRONT 51500K2ET01 -
13 CASE,L FR BOTTOM 51520K2ET01 -
14 BOOT,FR FORK 51611K2ET01 -
15 BAND A BOOT 51612K88L01 -
16 BAND B BOOT 51613K88L01 -
17 SPECIAL SCREW 5MMGE 8X16 90102K2ET00 -
18 BOLT,SOCKET 8MM 90116KV3701 BOLT,SOCKET 8MM
19 BOLT FORK 90123KW7901 BOLT FORK
20 WASHER SPECIAL (8MM) 90544283000 WASHER SPECIAL (8MM)
21 RING,OIL SEALSTOP 90601383721 -
22 SEAL DUST 91254GN1013 -
23 O-RING,FR FORK 91256166003 O-RING,FR FORK
