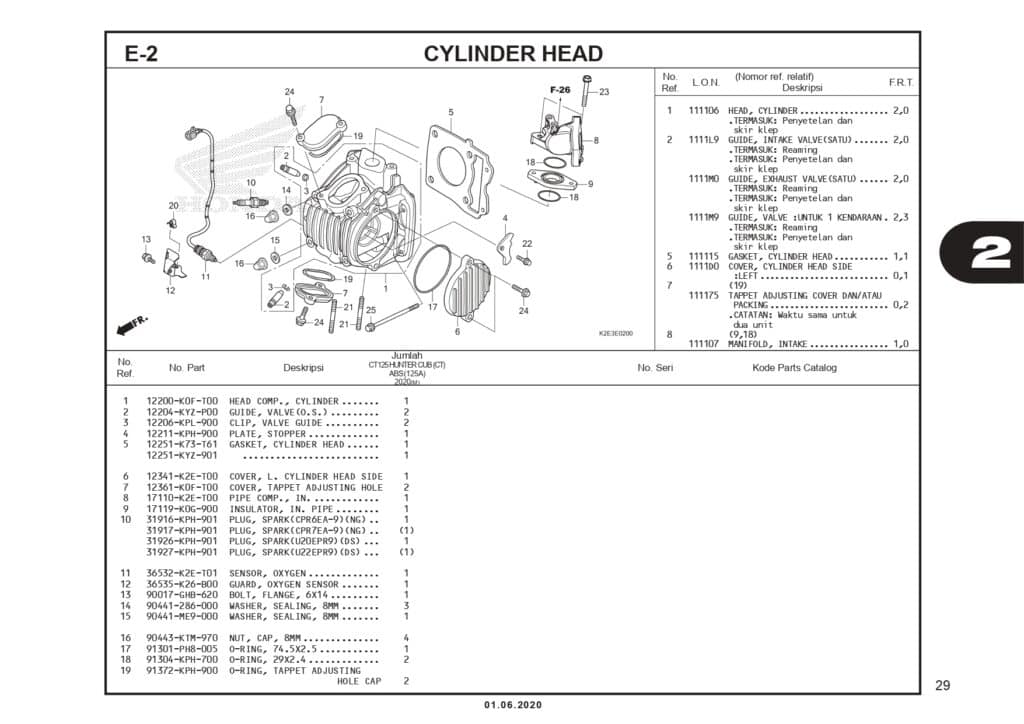

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | HEAD COMP CYLINDER | 12200K0FT00 | - |
| 2 | GUIDE VALVE(OVER R | 12204KYZP00 |
|
| 3 | CLIP VALVE GUIDE | 12206KPL900 |
|
| 4 | PLATE STOPPER | 12211KPH900 |
|
| 5 | GASKET CYLINDER H | 12251K73T61 | - |
| 5 | GASKET CYLINDER HEAD | 12251KYZ901 |
|
| 6 | COVER L CYLINDER SIDE | 12341K2ET00 | - |
| 7 | COVER TAPPET ADJ | 12361K0FT00 | - |
| 8 | PIPE COMP INLET | 17110K2ET00 | - |
| 9 | INSULATOR INLET P | 17119K0G900 | - |
| 10 | SPARK PLUG CPR6EA9 (NGK) | 9806786881 |
|
| 10 | SPARK PLUG CPR7EA9 (NGK) | 31917KPH902 |
|
| 10 | SPARK PLUG CPR7EA-9 | 31926KPH901 | - |
| 10 | SPARK PLUG U22EPR9 (DS) | 31927KPH901 |
|
| 11 | SENSOR OXYGEN | 36532K2ET01 | - |
| 12 | GUARD, OXYGEN SENSOR | 36535K26B00 | - |
| 13 | BOLT FLANGE NSHF | 90017GHB620 | - |
| 14 | WASHER SEALING 8MM | 90441286001 |
|
| 15 | WASHER SEALING 8MM | 90441ME9000 |
|
| 16 | NUT CAP,8MM | 90443KTM970 |
|
| 17 | O-RING 74.5X2.5 | 91301K73V81 |
|
| 18 | O-RING, 29 X 2.4 | 91304KPH700 |
|
| 19 | O-RING, TAPP ADJ | 91372KPH900 |
|
| 20 | CLIP,HOOD OPEN WIRE | 91504SL0003 |
|
| 21 | BOLT STUD 2.8X28 | 92900080280E |
|
| 22 | BOLT FLANGE 6X12 | 957010601200 |
|
| 23 | BOLT FLANGE 6X30 | 957010603000 |
|
| 24 | BOLT FLANGE 6X20 | 960010602000 |
|
| 25 | BOLT FLANGE 6X90 | 960010609000 |
|
