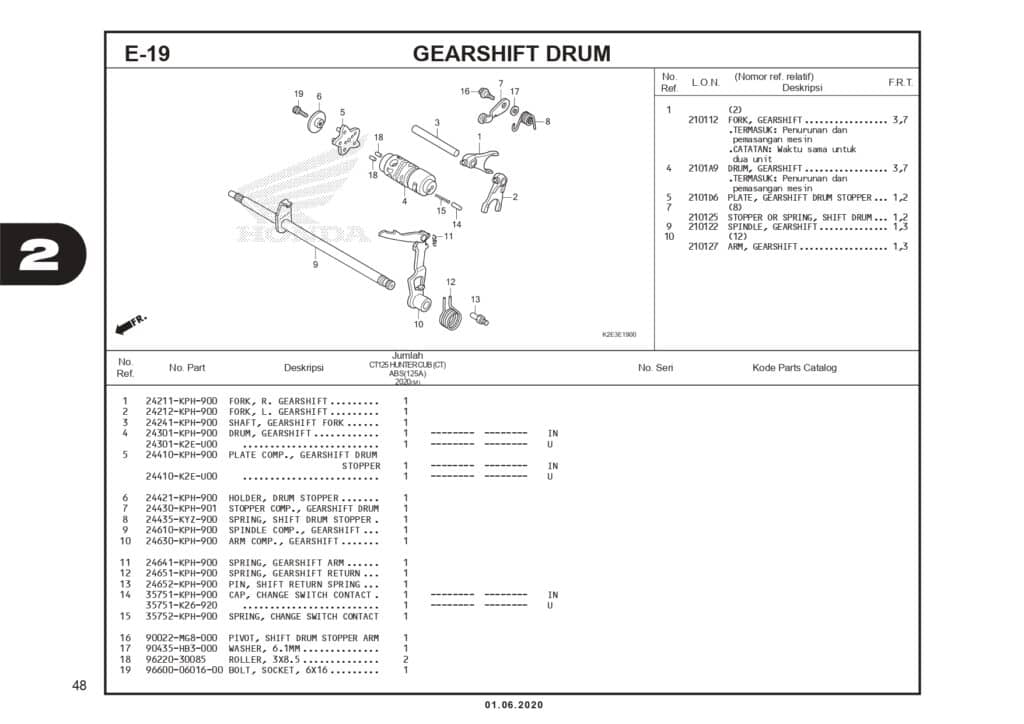

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | FORK R GEARSHIFT | 24211KPH900 |
|
| 2 | FORK L GEARSHIFT | 24212KPH900 |
|
| 3 | SHAFT GEAR SHIFT FORK | 24241KPH900 |
|
| 4 | DRUM GEARSHIFT | 24301KPH900 |
|
| 4 | 24301K2EU00 | 24301K2EU00 | - |
| 5 | PLATE COMP SHIFT DRUM STO | 24410KPH900 |
|
| 5 | 24410K2EU00 | 24410K2EU00 | - |
| 6 | HOLDER DRUM STOPPER | 24421KPH900 |
|
| 7 | STOPPER COMP GEAR SHIFT | 24430KPH901 |
|
| 8 | SPRING SHIFT DRUM STOPPER | 24435KYZ900 |
|
| 9 | SPINDLE COMP GEAR SHIFT | 24610KPH901 |
|
| 10 | ARM COMP GEAR SHIFT | 24630KPH901 |
|
| 11 | SPG GEAR SHIFT ARM | 24641KPH900 |
|
| 12 | SPRING GEAR SHIFT RETURN | 24651KPH900 |
|
| 13 | PIN SHIFT RETURN SPRING | 24652KPH900 |
|
| 14 | CAP CONTACT CHANGE SW | 35751KPH900 |
|
| 14 | CAP CONTACT CHANG | 35751K26920 | - |
| 15 | SPRINGCONTACTCHANGESW | 35752KPH900 |
|
| 16 | PIVOT,SFT DRUM STOP.ARM | 90022MG8000 |
|
| 17 | WASHER 6.1MM | 90435HB3000 |
|
| 18 | ROLLER,3X8.5 | 9622030085 |
|
| 19 | BOLT, SOCKET, 6X16 | 966000601600 |
|
