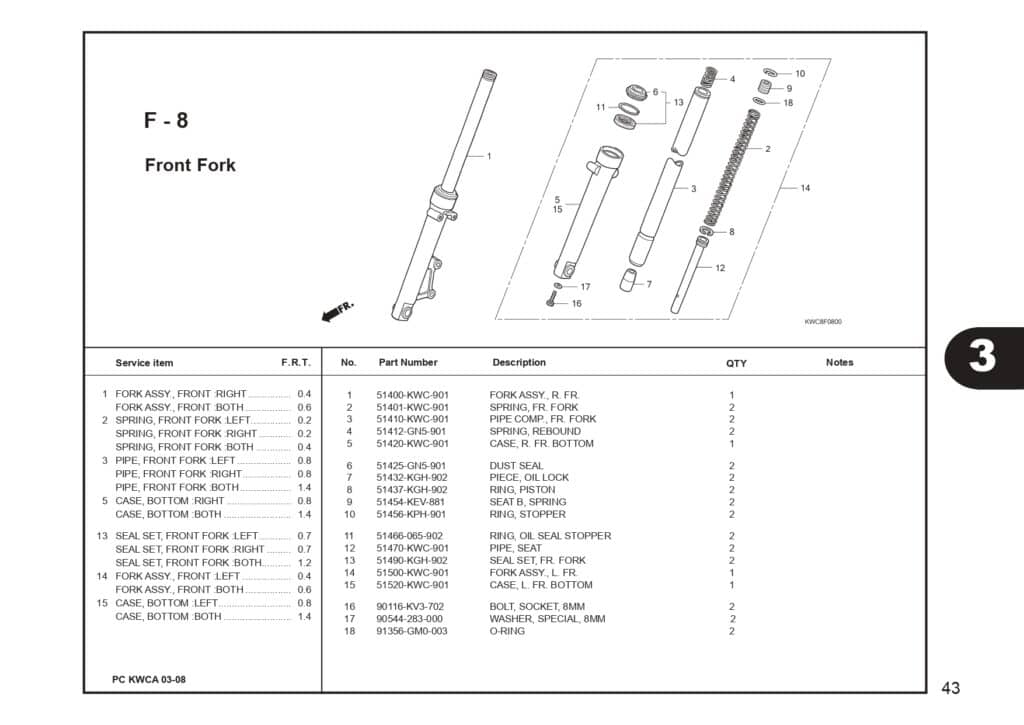

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | FORK ASSY R FR | 51400KWC901 | - |
| 2 | SPRING FR FORK | 51401KWC901 | - |
| 3 | PIPE COMP FR FORK | 51410KWC901 |
|
| 4 | SPG REBOUND | 51412GN5901 |
|
| 5 | CASE R FR BOTTOM | 51420KWC901 | - |
| 6 | DUST SEAL FR FORK | 51425GN5901 |
|
| 7 | PIECE,OIL LOCK | 51432KGH901 |
|
| 8 | RING PISTON | 51437KGH902 | - |
| 9 | SEAT B SPRING | 51454KEV881 |
|
| 10 | RIMG,STOPPER | 51456KPH901 |
|
| 11 | RING OIL SEAL | 51466065902 |
|
| 12 | PIPE,SEAT | 51470KWC901 | - |
| 13 | SEAL SET FR FORK | 51490KGH902 |
|
| 14 | FORK ASSY L FR | 51500KWC901 | - |
| 15 | CASE L FR BOTTOM | 51520KWC901 | - |
| 16 | BOLT,SOCKET 8MM | 90116KV3701 |
|
| 17 | WASHER SPECIAL (8MM) | 90544283000 |
|
| 18 | O RING | 91356GM0003 |
|
