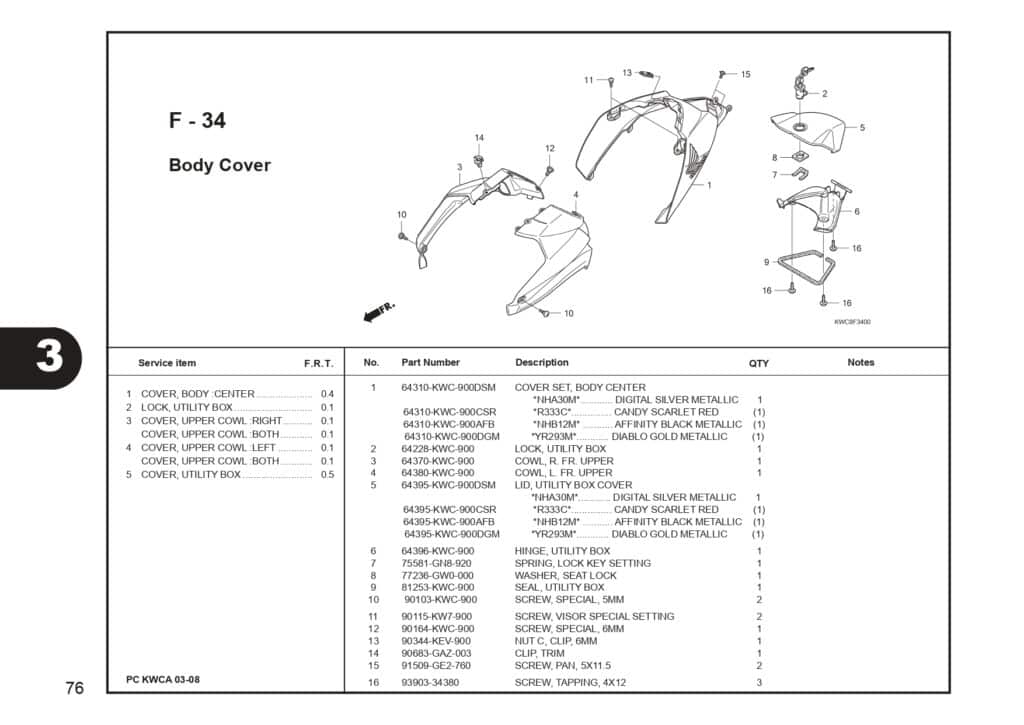

F-34 Body Cover – Katalog Suku Cadang Honda CS1
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
COVER BD CTR(DG SL MT) |
64310KWC900DSM |
-
|
| 1 |
COVER BD CTR(CN SC RD) |
64310KWC900CSR |
-
|
| 1 |
COVER BD CTR(AF BK MT) |
64310KWC900AFB |
-
|
| 1 |
COVER BD CTR(DB GL MT) |
64310KWC900DGM |
-
|
| 2 |
64228KWC900 |
64228KWC900 |
-
|
| 3 |
COWL R FR UPPER |
64370KWC900 |
-
|
| 4 |
COWL L FR UPPER |
64380KWC900 |
-
|
| 5 |
COVER UTI LID(DG SL MT) |
64395KWC900DSM |
-
|
| 5 |
COVER UTI LID(CN SC RD) |
64395KWC900CSR |
-
|
| 5 |
COVER UTI LID(AF BK MT) |
64395KWC900AFB |
-
|
| 5 |
COVER UTI LID(DB GL MT) |
64395KWC900DGM |
-
|
| 6 |
HINGE UTILITY BOX |
64396KWC900 |
-
|
| 7 |
SPRING LOCK KEY |
75581GN8920 |
|
| 8 |
WASHER SEAT LOCK |
77236GW0000 |
|
| 9 |
SEAL UTILITY BOX |
81253KWC900 |
-
|
| 10 |
SCREW SPECIAL 5MM |
90103KWC900 |
-
|
| 11 |
SCREW VISOR SPC. |
90115KW7900 |
|
| 12 |
SCREW SPECIAL 6MM |
90164KWC900 |
-
|
| 13 |
NUT C CLIP 6MM |
90344KEV900 |
-
|
| 14 |
CLIP,TRIM |
90683GAZ003 |
|
| 15 |
SCREW PAN 5X11.5 |
91509GE2760 |
|
| 16 |
SCREW TAPPING 4X12 |
9390334380 |
|
