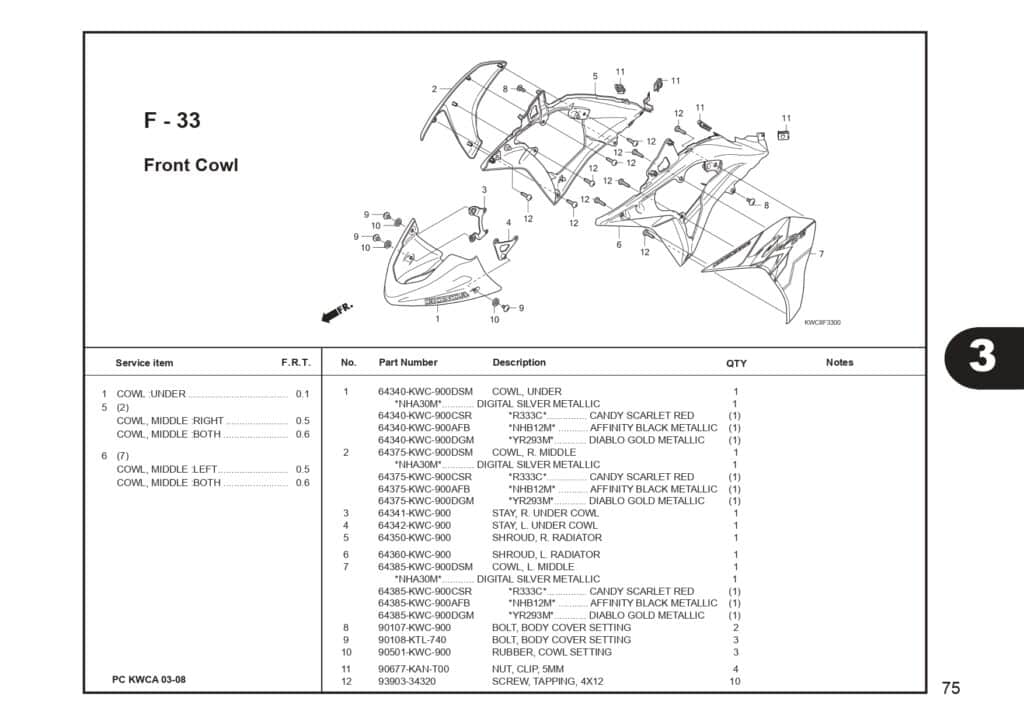

F-33 Front Cowl – Katalog Suku Cadang Honda CS1
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
COWL UNDER(DG SL MT) |
64340KWC900DSM |
|
| 1 |
COWL UNDER(CN SC RD) |
64340KWC900CSR |
-
|
| 1 |
CWL UNDER (AF BK MT) |
64340KWC900AFB |
|
| 1 |
COWL UNDER(DB GL MT) |
64340KWC900DGM |
-
|
| 2 |
COWL R MID(DG SL MT) |
64375KWC900DSM |
-
|
| 2 |
COWL R MID(CN SC RD) |
64375KWC900CSR |
-
|
| 2 |
COWL R MID(AF BK MT) |
64375KWC900AFB |
|
| 2 |
COWL R MID(DB GL MT) |
64375KWC900DGM |
-
|
| 3 |
STAY R UNDER COWL |
64341KWC900 |
-
|
| 4 |
STAY L UNDER COWL |
64342KWC900 |
-
|
| 5 |
SHROUD R RADIATOR |
64350KWC900 |
-
|
| 6 |
SHROUD L RADIATOR |
64360KWC900 |
-
|
| 7 |
COWL L MID(DG SL MT) |
64385KWC900DSM |
-
|
| 7 |
COWL L MID(CN SC RD) |
64385KWC900CSR |
-
|
| 7 |
COWL L MID(AF BK MT) |
64385KWC900AFB |
|
| 7 |
COWL L MID(DB GL MT) |
64385KWC900DGM |
-
|
| 8 |
BOLT BODY COVER SET |
90107KWC900 |
-
|
| 9 |
BOLT BODY COVER SET |
90108KTL740 |
-
|
| 10 |
RUBBER COWL MT |
90501KWC900 |
-
|
| 11 |
NUT CLIP 5MM. |
90677KANT00 |
|
| 12 |
SCREW TAPPING 4X12 |
9390334320 |
|
