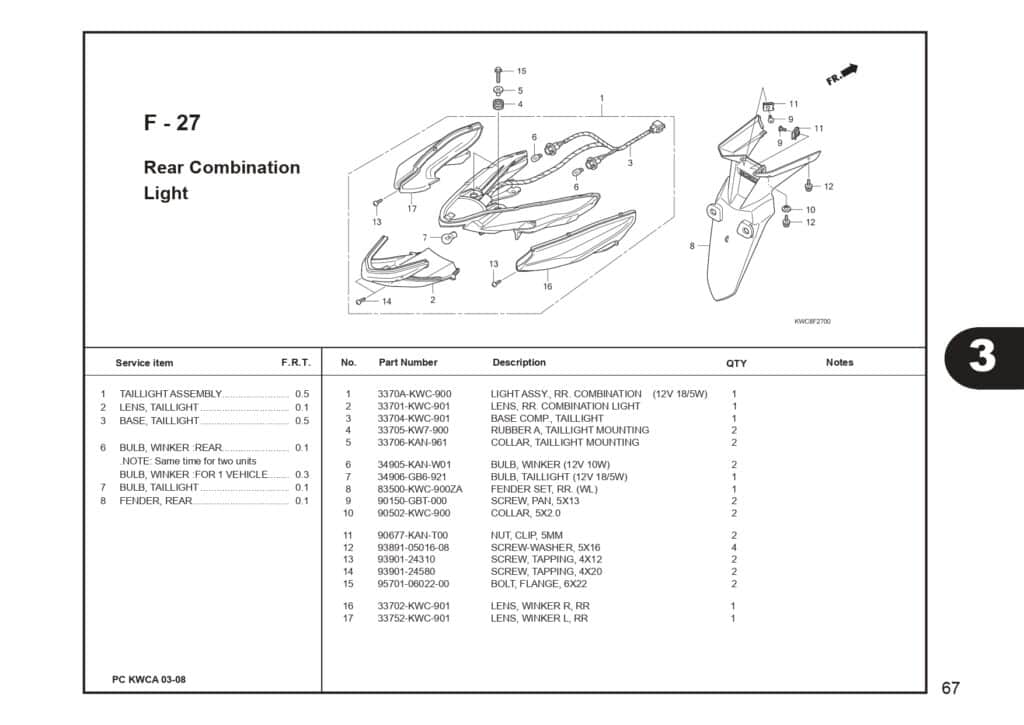

F-27 Rear Combination Light – Katalog Suku Cadang Honda CS1
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
3370AKWC900 |
3370AKWC900 |
-
|
| 2 |
LENS COMB TAILLIGHT |
33701KWC901 |
-
|
| 3 |
BASE COMP TAILLIGHT |
33704KWC901 |
-
|
| 4 |
RUBBER TAILLIGHT |
33705KW7900 |
|
| 5 |
COLLAR TAIL LIGHT MOUNT |
33706KAN961 |
-
|
| 6 |
WB BULB (12V10W-YLT13) |
34905KANW01 |
|
| 7 |
BULB TAILLIGHT |
34906GB6921 |
|
| 8 |
83500KWC900ZA |
83500KWC900ZA |
-
|
| 9 |
SCREW PAN 5X13 |
90150GBT000 |
-
|
| 10 |
COLLAR 5X2.0 |
90502KWC900 |
-
|
| 11 |
NUT CLIP 5MM. |
90677KANT00 |
|
| 12 |
SCREW WASHER 5X16 |
938910501608 |
-
|
| 13 |
SCREW TAPPING 4X12 |
9390124310 |
-
|
| 14 |
SCREW TAPPING (4X20) |
9390124580 |
|
| 15 |
BOLT FLANGE 6X22 |
957010602200 |
|
| 16 |
LENS WINKER R RR |
33702KWC901 |
-
|
| 17 |
LENS WINKER L RR |
33752KWC901 |
-
|
