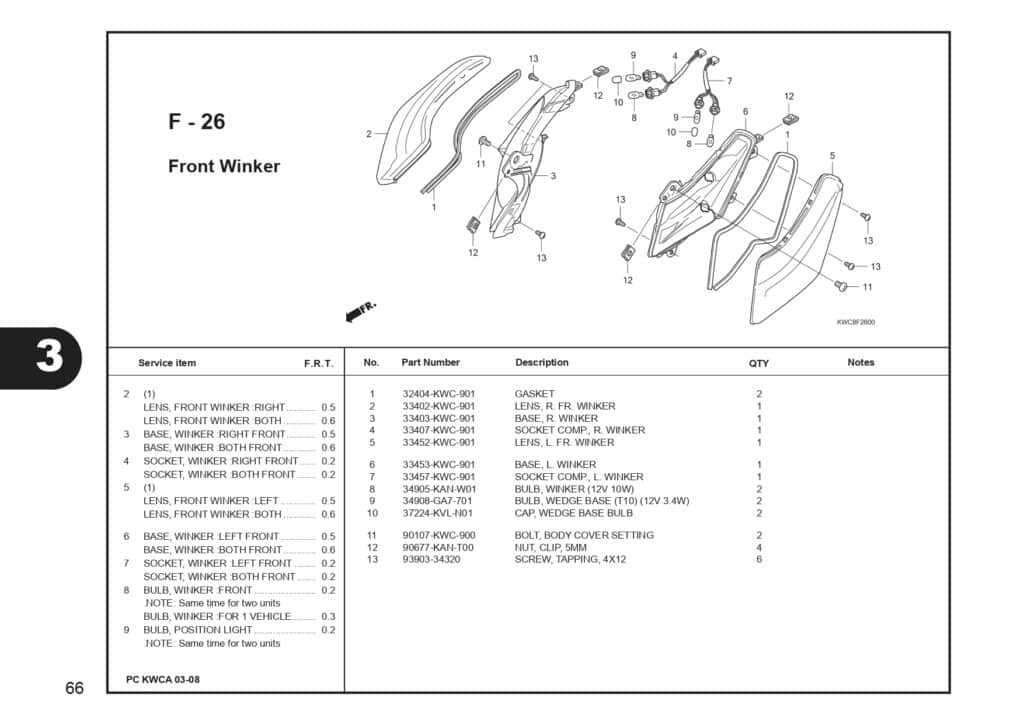

F-26 Front Winker – Katalog Suku Cadang Honda CS1
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
GASKET |
32404KWC901 |
-
|
| 2 |
LENS WINKER R FR |
33402KWC901 |
-
|
| 3 |
BASE R WINKER |
33403KWC901 |
-
|
| 4 |
SOCKET COMP R WINKER |
33407KWC901 |
-
|
| 5 |
LENS WINKER L FR |
33452KWC901 |
-
|
| 6 |
BASE L WINKER |
33453KWC901 |
-
|
| 7 |
SOCKET COMP L WINKER |
33457KWC901 |
-
|
| 8 |
WB BULB (12V10W-YLT13) |
34905KANW01 |
|
| 9 |
BULB W BASE |
34908GA7701 |
|
| 10 |
CAP BLUE W BASE |
37224KVLN01 |
-
|
| 11 |
BOLT BODY COVER SET |
90107KWC900 |
-
|
| 12 |
NUT CLIP 5MM. |
90677KANT00 |
|
| 13 |
SCREW TAPPING 4X12 |
9390334320 |
|
