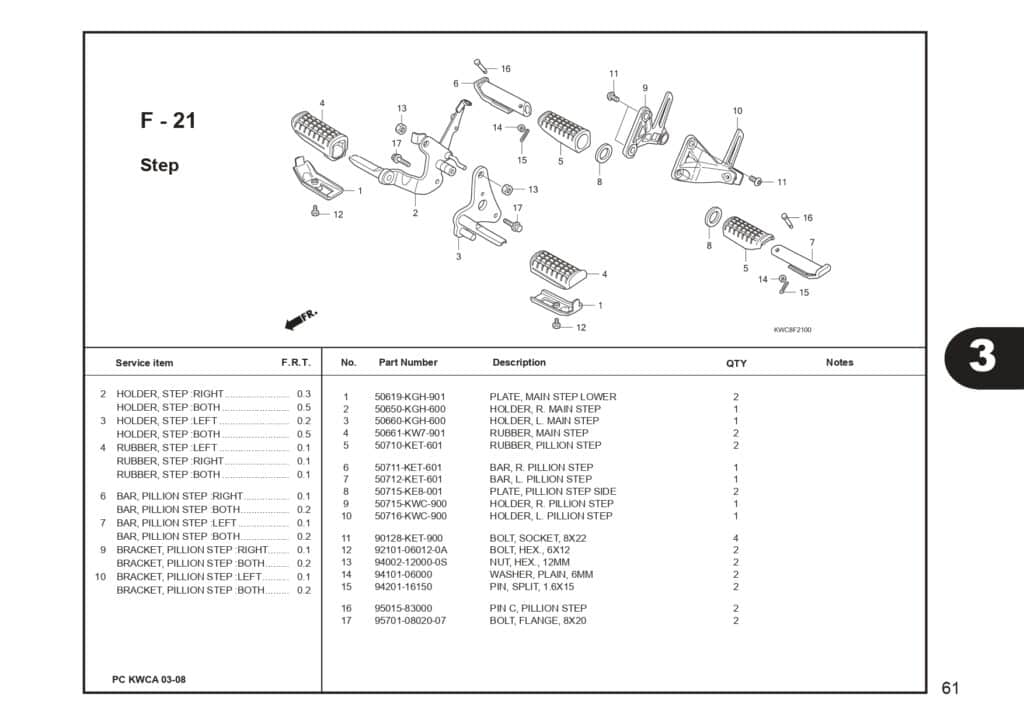

F-21 Step – Katalog Suku Cadang Honda CS1
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
PLATE M STEP LWR |
50619KGH901 |
-
|
| 2 |
50650KGH600 |
50650KGH600 |
-
|
| 3 |
50660KGH600 |
50660KGH600 |
-
|
| 4 |
RUBBER MAIN STEP |
50661KW7901 |
-
|
| 5 |
RUBBER PILLION STEP |
50710KET601 |
-
|
| 6 |
BAR R PILLION STEP |
50711KET601 |
-
|
| 7 |
BAR L PILLION STEP |
50712KET601 |
-
|
| 8 |
PLATE, PILLION STEP SIDE |
50715KE8000 |
|
| 9 |
50715KWC900 |
50715KWC900 |
-
|
| 10 |
50716KWC900 |
50716KWC900 |
-
|
| 11 |
BOLT SOCKET 8X22 |
90128KET900 |
|
| 12 |
BOLT HEX 6X12 |
92101060120A |
|
| 13 |
NUT HEX 12MM |
94002120000S |
|
| 14 |
WASHER PLAIN 6MM |
9410106000 |
|
| 15 |
PIN COTTER 16X15 |
9420116150 |
|
| 16 |
PIN C PILL STEP |
9501583000 |
|
| 17 |
BOLT FLANGE 8X20 |
957010802007 |
-
|
