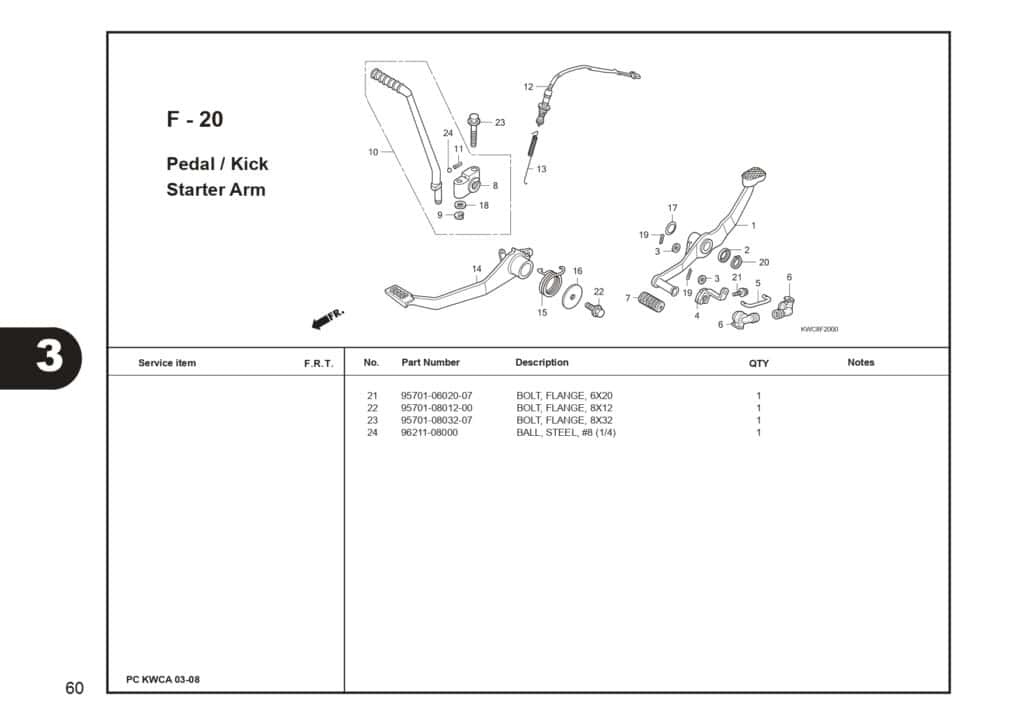

F-20 Pedal Kick Starter Arm – Katalog Suku Cadang Honda CS1
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
PEDAL, GEAR CHANGE |
24701KGH900 |
-
|
| 2 |
WASHER CHANGE PEDAL |
24703KGH901 |
-
|
| 3 |
WASHER NYLON 7MM. |
24703KW6840 |
|
| 4 |
24711KWC900 |
24711KWC900 |
-
|
| 5 |
TIE ROD |
24720KGH900 |
-
|
| 6 |
COVER CHANGE PEDAL |
24721KW6961 |
-
|
| 7 |
RUBBER CHANGE PEDAL |
24781449001 |
-
|
| 8 |
JOINT,KICK ARM |
28241KET900 |
-
|
| 9 |
CLIP KICK STARTER |
28293333000 |
|
| 10 |
ARM ASSY KICK STARTER |
28300KGH600 |
-
|
| 11 |
SPG,KICK STARTER |
28333KANT40 |
-
|
| 12 |
SWITCH ASSY RR STOP |
35350KGH731 |
-
|
| 13 |
SPRING STOP SW |
35357GBG851 |
-
|
| 14 |
PEDAL COMP RR BRAKE |
46500KGH901 |
-
|
| 15 |
SPRING BRAKE PEDAL |
46514KAN941 |
-
|
| 16 |
PLATE SPRING SET |
46515KGH901 |
-
|
| 17 |
WASHER WAVE 15MM |
90405ZA8800 |
-
|
| 18 |
WASHER 13X20 |
90505116671 |
-
|
| 19 |
PIN COTTER 2.0X15 |
9420120150 |
|
| 20 |
CIRCLE CLIP EX 15 |
9451015000 |
-
|
| 21 |
BOLT FLANGE 6X20 |
957010602007 |
|
| 22 |
BOLT, FLANGE, 8X12 |
957010801200 |
|
| 23 |
BOLT FLANGE 8X32 |
957010803207 |
|
| 24 |
BALL,STEEL 8 |
9621108000 |
|
