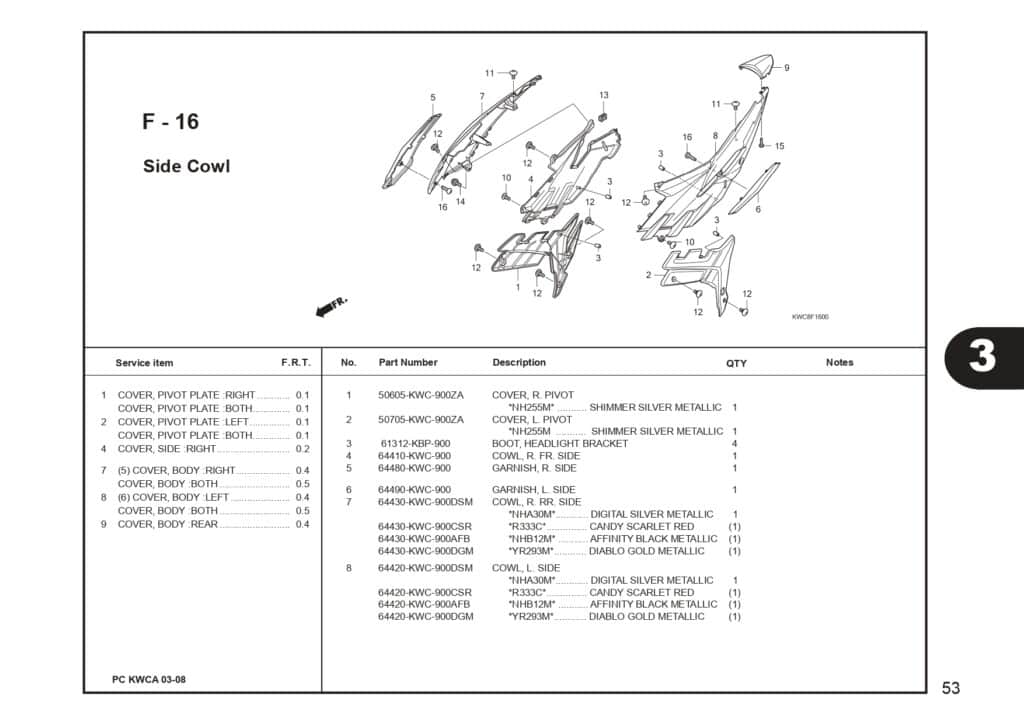

F-16 Side Cowl – Katalog Suku Cadang Honda CS1
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
COVER R PIVOT(SH SL MT) |
50605KWC900ZA |
-
|
| 2 |
COVER L PIVOT(SH SL MT) |
50705KWC900ZA |
-
|
| 3 |
BOOT HEADLIGHT |
61312KBP900 |
|
| 4 |
42 |
64410KWC900 |
-
|
| 5 |
GARNISH R SD |
64480KWC900 |
-
|
| 6 |
GARNISH L SD |
64490KWC900 |
-
|
| 7 |
CWL R RR SD(DG SL MT) |
64430KWC900DSM |
-
|
| 7 |
CWL R RR SD(CN SC RD) |
64430KWC900CSR |
-
|
| 7 |
CWL R RR SD(AF BK MT) |
64430KWC900AFB |
-
|
| 7 |
CWL R RR SD(DB GL MT) |
64430KWC900DGM |
-
|
| 8 |
COWL L SD(DG SL MT) |
64420KWC900DSM |
-
|
| 8 |
COWL L SD(CN SC RD) |
64420KWC900CSR |
-
|
| 8 |
COWL L SD(AF BK MT) |
64420KWC900AFB |
|
| 8 |
COWL L SD(DB GL MT) |
64420KWC900DGM |
-
|
| 9 |
COWL RR CTR(DG SL MT) |
83510KWC900DSM |
-
|
| 9 |
COWL RR CTR(CN SC RD) |
83510KWC900CSR |
-
|
| 9 |
CWL RR CTR(AF BK MT) |
83510KWC900AFB |
-
|
| 9 |
COWL RR CTR(DB GL MT) |
83510KWC900DGM |
-
|
| 10 |
BOLT BODY COVER SET |
90107KWC900 |
-
|
| 11 |
BOLT COWL SET |
90107KW7931 |
-
|
| 12 |
SCREW VISOR SPC. |
90115KW7900 |
|
| 13 |
NUT CLIP 5MM. |
90677KANT00 |
|
| 14 |
SCREW PAN 5X11.5 |
91509GE2760 |
|
| 15 |
SCREW, TAPPING, 4X10 |
9390334220 |
|
| 16 |
SCREW TAPPING 5X12 |
9390335220 |
|
